PowerTouch 914
PowerTouch 914
By TouchTronics, Inc.
Please read entire instruction manual prior to starting the
PowerTouch Remote Control System Installation.
Special Features and Applications
Flexibility
Installer can select polarity of voltage outputs on all channels.
Power
All four outputs are 5 amp, switched relays.
Compact
Receiver is small and easy to install.
Optional Transmitters
Large, oval transmitters with large buttons can be ordered.
Program Options
Two channels can be programmed as latching, On - Off
Channel 2 can be programmed with a 2-second courtesy light delay
Standard 4 Channels
Two and four channel transmitters are interchangeable.
Range
Typical antenna range is 60-feet.
PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions

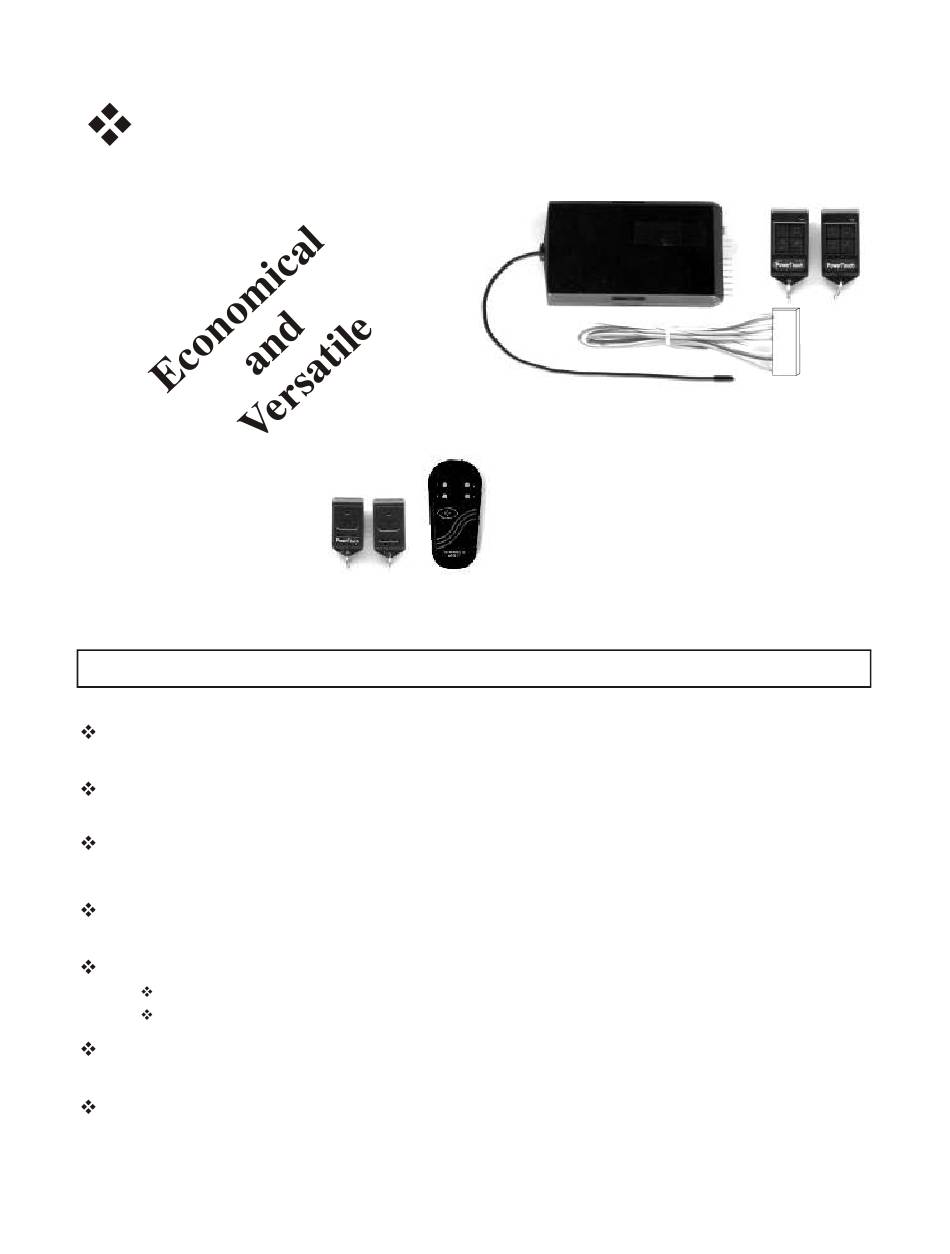

914 PowerTouch Remote Control Receiver
With Two (4 button) Key Chain Transmitters
Also showing optional:
Two (two button) Key Chain Transmitters
And Oval Transmitter
Drawing D914.N2 Rev 0 March 04, 2002
Page -1-
Manual C914.N2

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerTouch 914 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TouchTronics PowerTouch 914

Summary of Contents for TouchTronics PowerTouch 914

  • Page 1 PowerTouch 914 PowerTouch 914 By TouchTronics, Inc. 914 PowerTouch Remote Control Receiver With Two (4 button) Key Chain Transmitters Also showing optional: Two (two button) Key Chain Transmitters And Oval Transmitter Please read entire instruction manual prior to starting the PowerTouch Remote Control System Installation.
  • Page 2 Wire Stripper To Clean Grounding Pad: Scraper, Sand Paper, Alcohol Based Cleaner Technical Support Visit the factory website to download a copy of these instructions, e-mail technical questions and see other TouchTronics, Inc. products. Phone / Fax Numbers Indiana Local 1-574-294-2570...

  • Page 3: Component Parts List

    Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Component Parts List 1 pc 914r RF Receiver, 4 Channel w/9” antenna wire 1 set 914h Harness - 10 wire, 9” 2 pcs 914T4 Transmitter, 4 button key chain style Optional 914T2 Transmitter,...

  • Page 4: Installation Planning

    D) The antenna should not be touching any metal as this grounds the RF (radio frequency) signal *TouchTronics offers weather resistant housings for many different types of applications. Call the factory @ 1-800-294-2570 for information on your particular application needs.

  • Page 5: Installation: Electrical Connections

    Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Installation: Electrical Connections 1) Install Power Connect the Red wire to a constant +12v battery power source. Note: For best performance, run a clean +12v (15A) directly from the battery or a fuse that is NOT supplying any power to motors, lights or any other type of high current device.
  • Page 6 Unlock Relay **Please Note: Due to continually changing wire colors through-out the automotive industry, TouchTronics can NOT provide accurate wire color information on a consistent basis. Therefore, if the wire colors needed for installation are not known, please contact a local dealer and they should be able to provide any necessary information.
  • Page 7 Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Installation: Motors Using Relays, Safety Disable Switch WARNING! If using any type of motor, such as a window motor, a ramp motor, a door motor, or a winch motor - add a Disable switch to prevent the door or window circuit from operating when vehicle is in motion.
  • Page 8 Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Installation: Application Schematics Multiple Motors +12v Fused @ 20 amps White/Tan Safety Disable Switch Purple Green/Black Yellow/Black Green/Red Ground Yellow/Red Empty Orange Black Empty Typical Current +12v Logic Fused @ 1 amp Draw is 100mA High...
  • Page 9 Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Trouble Shooting Guide - 914 Series Remote Control Trouble Shooting Guide - 914 Series Remote Control Use a digital or analog voltmeter to check power and voltage! Do NOT use a test light Symptom Possible Cause...
  • Page 10 Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Trouble Shooting Guide - 914 Series Remote Control Use a digital or analog voltmeter to check power and voltage! Do NOT use a test light Symptom Possible Cause Corrective Action 3.0 No power to remote 3.1 Logic ground or...
  • Page 11 Manual C914.N2 PowerTouch Remote Control Systems - 914 Series (2 - 4) Functions Trouble Shooting Guide - 914 Series Remote Control Symptom Possible Cause Corrective Action 5.0 Poor range 0’ to 25’ 5.2 Receiver installed in 5.2a Disconnect door and / or ramp motor and (pulsating 0’...
  • Page 12 4) Each individual product is warranted under the TouchTronics Limited Warranty program for 1 full year from date of purchase or a maximum of 2 years from the date of manufacture. 5) No product will be covered under the TouchTronics Limited Warranty program that has a manufacture date older than 2 years.
