Summary of Contents for TouchTronics Invisilok - M115

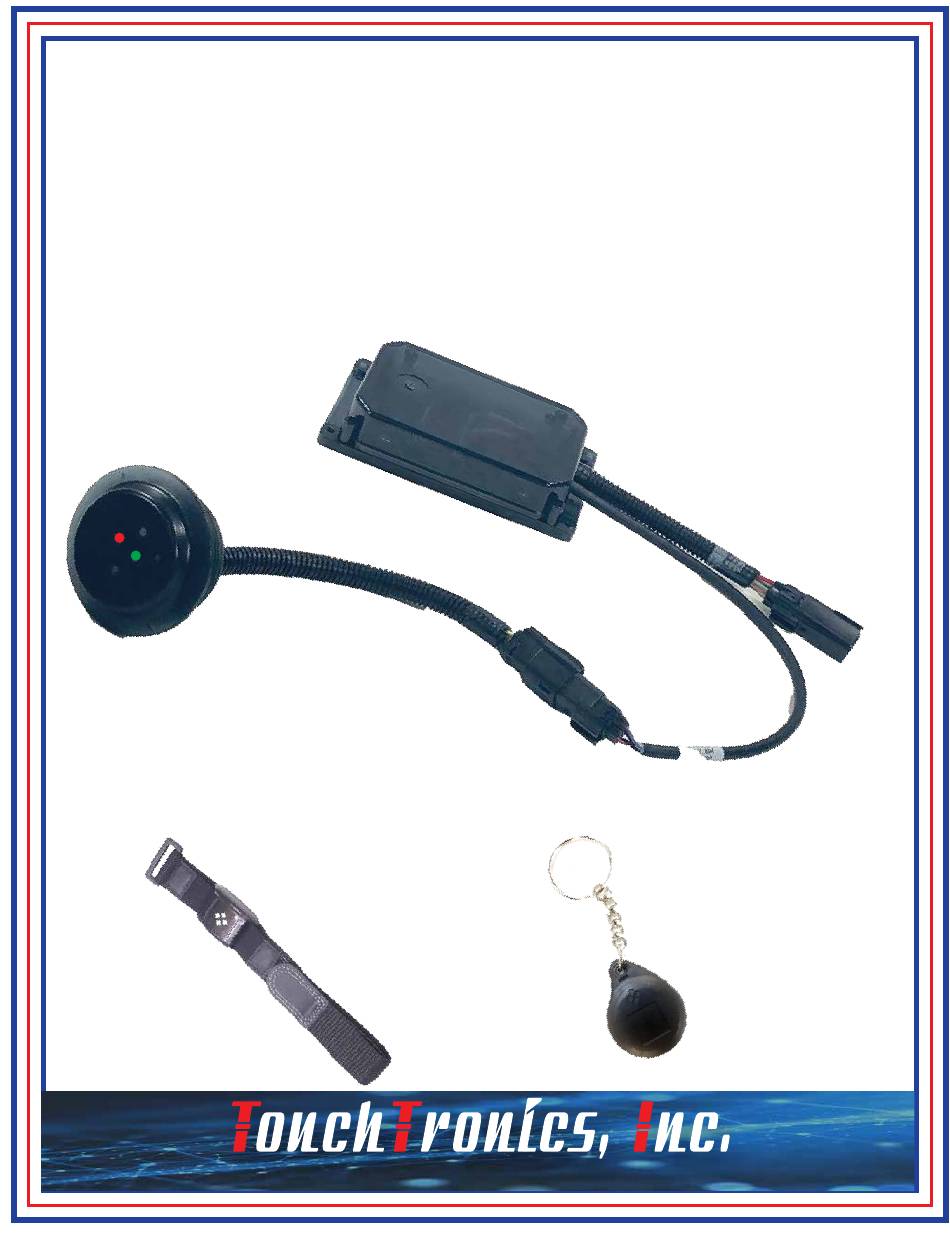

- Page 1 Invisilok - M115 Reader with Remote Antenna for a Keyless Security System for Solenoids Reader Remote Antenna Keychain Wristband 57315 Nagy Dr 800-294-2570 Elkhart, IN 46517 574-294-2570 www.touchtronics.com NST13308-M115-02_A ◄► 2021-06-23 ◄► Page 1...
-
Page 2: Operation
OPERATION USING A WRISTBAND KEY OR KEYCHAIN TAG Present (swipe) Wristband Key or Keychain Key to Remote Antenna. Wristband Key or Keychain Key should be swiped within 3-4 inches of antenna. • Door unlocks. • After six (6) seconds, the door automatically re-locks whether it is open or closed. •... -
Page 3: System Diagram
SYSTEM DIAGRAM This Keyless Entry System can be set up with 1 to 4 Nodes M115-R2 M115-R1 1 Node 2 Nodes Bulkhead or Curbside and Rear Doors Bulkhead Door Antenna Antenna Antenna Curbside Antenna SWITCHES SWITCHES Curbside View Curbside View Antenna M115-R4 M115-R3... - Page 4 INSTALLATION 1. Identify the location of the remote antenna on the exterior of the truck, with the exception of the bulkhead antenna. The bulkhead antenna is trypically installed on the cab side of the partition wall between the cargo and cab. 2.
-
Page 5: Troubleshooting - Keyless Entry
TROUBLESHOOTING - KEYLESS ENTRY 1. What to do if the door does NOT unlock when the antenna is swiped with the Wristband Key or Keychain Key: Items referred to in Troubleshooting Instructions: Keychain Key Antenna (Remote) Switch Wristband Key Reader Transfer Card Possible Cause #1: Wristband Key or Keychain Key is NOT Enrolled Correctly *Note: Door DOES Unlock When Unlock Switch is Pressed... - Page 6 TROUBLESHOOTING - KEYLESS ENTRY Possible Cause #4: The Wire Harness, Crimp, Ground Connection or Solenoid Has Failed Actions ToTake: Pin 1 Pin 3 • If the Red LED flashes when swiped with the Wristband Key or Keychain Key or the Unlock switch is pressed, but the door does not unlock, check the truck harness and connector.
- Page 7 TROUBLESHOOTING - KEYLESS ENTRY 2. What to do if the Door Does NOT Unlock When Pressing the Unlock Switch: Possible Cause #1: The Unlock Switch is Damaged or Defective *Note: the Door DOES unlock when swiped with a Key Actions To Take: •...
- Page 8 TROUBLESHOOTING - KEYLESS ENTRY Possible Cause #4: Antenna Has Failed Actions To Take: Pin 1 Pin 3 • If the unlock switch is OK and there is +12V on the input pin #3 (Gray wire) when the switch is pressed, unplug the antenna from the wire harness and then reconnect it.
- Page 9 TROUBLESHOOTING - KEYLESS ENTRY 3. What to do if the door does NOT unlock when swiped or unlock switch is pressed, but the green LED turns ON for 6-seconds: Possible Cause #1: Solenoid does not have a good ground connection Actions To Take: •...
- Page 10 TROUBLESHOOTING - KEYLESS ENTRY 4. What to do if the unlock response is slow when swiped with the Wristband Key: Possible Cause #1: Data Bus Failure Due to Wire Harness or Connector Problem Actions To Take: • Swipe each antenna and observe the Red LED. -If that reader is NOT connected to the data bus, then the RED LED will continue to flash during the 6-second solenoid timer.
- Page 11 TROUBLESHOOTING - DATA BUS 1. What to do if the Status LEDs Flash Data Bus Failure: Possible Cause #1: Short in the Wire Harness Actions To Take: • If the harness is not shorted to power, disconnect the wire harness connector for power and ground located under the hood.
-
Page 12: Block Diagram
BLOCK DIAGRAM NST13308-M115-02_A ◄► 2021-06-23 ◄► Page 12... -
Page 13: Part Description
PARTS Minimum Order - $25 Call Factory For Pricing and Availability (Indiana Local: 1-574-294-2570; Toll Free: 1-800-294-2570; Fax: 1-574-293-1611) TTI Part Number Part Description Part Picture M115-A Antenna, 2.5" diameter Reader - Installed 1 per truck M115-R1 ID code special / single unit Reader - Installed 2 per truck M115-R2 ID code special / single unit... - Page 14 © 2021 TouchTronics, Inc. All Rights Reserved.TouchTronics, the TouchTronics logo, and other TouchTronics marks are owned by TouchTronics and may be registered. TouchTronics assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
- Page 15 NOTES NST13308-M115-02_A ◄► 2021-06-23 ◄► Page 15...
- Page 16 NOTES NST13308-M115-02_A ◄► 2021-06-23 ◄► Page 16...
