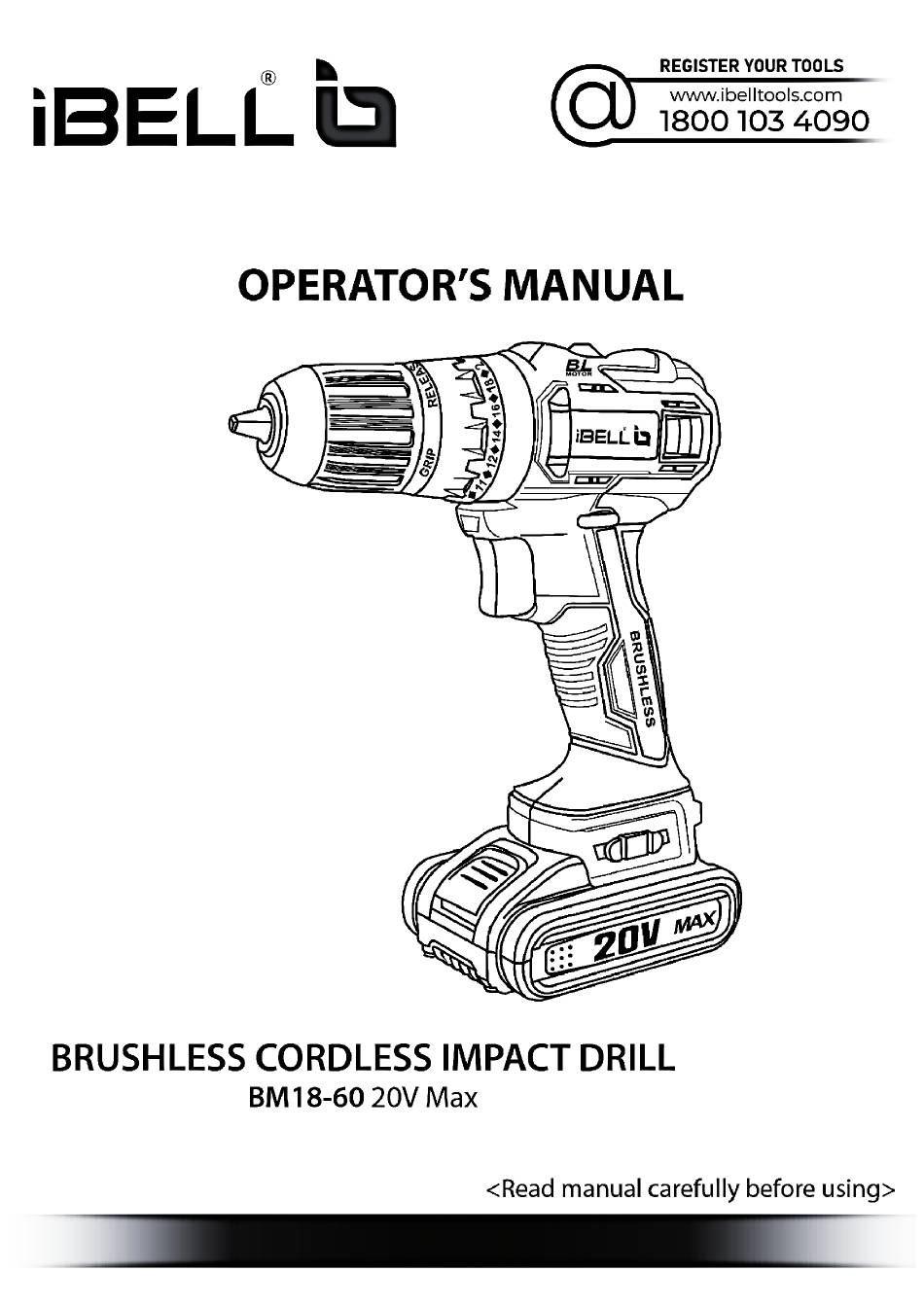

iBell Tools IBL BM18-60 Operator's Manual
  1. Manuals
  2. Brands
  3. iBell Tools Manuals
  4. Drill
  5. IBL BM18-60
  6. Operator's manual

iBell Tools IBL BM18-60 Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBL BM18-60 and is the answer not in the manual?

Questions and answers

Related Manuals for iBell Tools IBL BM18-60

Summary of Contents for iBell Tools IBL BM18-60

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS __________ 2. SCREWDRIVER SAFETY WARNINGS ___________________ 3. PRODUCT OVERVIEW _______________________________ _ 4. PRODUCT SPECIFICATIONS __________________________ 5. SETUP ________________________________________________ 6. PRODUCT FUNCTIONS _______________________________ 7. GENERAL OPERATION ________________________________ 8. TROUBLESHOOTING __________________________________ IBL BM18-60...

  • Page 4: General Power Tool Safety Warnings

    Keep it away from heat, oil, sharp edges or moving parts.  When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL BM18-60...
  • Page 5  When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL BM18-60...
  • Page 6  Battery of the tools should be recharged only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. IBL BM18-60...

  • Page 7: Screwdriver Safety Warnings

     Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. IBL BM18-60...
  • Page 8  Protect the charger against moisture and wet conditions. There is a danger of electric shock.  Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord. IBL BM18-60...
  • Page 9  Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.  Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL BM18-60...
  • Page 10 Do not charge or store the battery pack in temperatures below 0°C and above 40°C Do not dispose of battery packs in fire. They will explode and cause injury Do not dispose of battery packs in water bodies or immerse in water IBL BM18-60...

  • Page 11: Product Overview

    8. Battery pack 2. Chuck 9. Release button 3. Torque adjustment ring 10. Power indicator light 4. Two-speed gear control 11. Charging base 5. Forward/Reverse rotation control switch 12. Charger 6. ON/OFF trigger switch 13. Operation mode adjustment ring IBL BM18-60...

  • Page 12: Product Specifications

    : 1500 mAh Voltage : 20V DC max Weight : 0.4 Kg CHARGER Rated input voltage : 100-240V~50/60Hz Rated output voltage : 20V DC Protection class : Class II Charging time : approx. 1 hr Weight : 0.2 Kg IBL BM18-60...

  • Page 13: Setup

    It must not be used for tightening or loosening car wheel nuts.  For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions mentioned in it. IBL BM18-60...
  • Page 14 Please charge the battery to reach full or no less than half charge before storage. If the tool will not be used for long periods of time, charge the battery every 3-6 months. IBL BM18-60...
  • Page 15 Pack needs to be charge The battery gauge is only an indication of the charge left NOTE: on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application. IBL BM18-60...
  • Page 16 ON/OFF TRIGGER SWITCH Switch the device ON by pressing the ON/OFF switch (6) and OFF by releasing the switch. It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. IBL BM18-60...
  • Page 17 - 2 - - 3 - REMOVING/REPLACING:  Turn the chuck sleeve (2) anticlockwise until the chuck jaws are opened wide enough to remove the bit.  Remove the bit and insert a new one as described above if desired. IBL BM18-60...

  • Page 18: Product Functions

    2. Move the forward/reverse rotation control switch to the right (as seen from the operator position) in order to use the product in anticlockwise rotational mode. 3. Move the rotation control switch to the centre position to lock the ON/OFF switch and avoid accidental starting. IBL BM18-60...
  • Page 19 ‘2’, the speed will increase and the drill will have less power and torque. Gear Description position Low speed range for screw-driving or working with large drilling diameter High speed range for working with small drilling diameter. IBL BM18-60...
  • Page 20 For light hammer drilling AUTOMATIC WORK LIGHT The work light (1) will automatically illuminate by pressing the ON/OFF switch (6). This helps to focus on the work more thoroughly and could work on a not much bright environment as well. IBL BM18-60...

  • Page 21: General Operation

     Remove blocked and stuck drill bits by changing the rotational direction.  On plastics and steel, punch the drilling point before operation in order to avoid slipping of the drill.  Use suitable drill bit for drilling into plastic and steel. IBL BM18-60...
  • Page 22 (light masonry works only). As well as can be used to loosen jammed screws, nuts, bolts etc., with suitable accessories. With the help of the Operation mode adjustment ring (13), these operations can be carried. IBL BM18-60...
  • Page 23 WARNING! from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! IBL BM18-60...

  • Page 24: Troubleshooting

    Only perform the steps described within these WARNING! instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! IBL BM18-60...
  • Page 25 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Disposal of an exhausted battery pack. The built-in battery is Li-Ion type. To preserve natural resources, please recycle or dispose of the battery properly.
