Page 1: Table Of Contents
GAS FRYERS Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page SPARE PART LIST- EXPLODING DRAWING Page... -
Page 2: Ageneral Information
GAS FRYERS Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

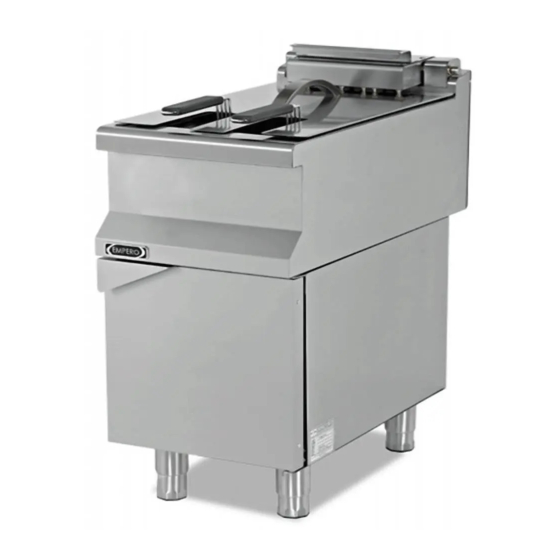

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Gas Fryers,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.7FG010 400x730x850 480x800x1020 EMP.7FG020 800x730x850 830x800x1020 TECHNICAL INFORMATION Product Capacity... -
Page 4: A4 Unpacking
GAS FRYERS UNPACKING Kasap Tip Dik Buzdolapları *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. *Please check that all the parts of appliance had come completely and if they are damaged or not during the shipping. -
Page 5: Csafety Instructions
GAS FRYERS Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. -
Page 6: Doperation
GAS FRYERS OPERATION *Control Panel; Kasap Tip Dik Buzdolapları A : Heating Value (1-8) B : Lighter Position C : Gas Flow Stopping Button D : Gas Flow Button E : Lighter *Operating; According to type of use,make gas entrance connection from behınd the grill.Because the machine is operated with LPG and NG. -
Page 7: Ecleaning & Maintenance
GAS FRYERS Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Turn off the gas connection before cleaning. Clean the outer surface of the appliance with a wet cloth. Do not use abrasive cleaning chemicals as these can leave harmful residues. ... -
Page 8: Ftroubleshooting
GAS FRYERS TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the gas connection is done or not. If there is no gas entrance to pilot,the appliance is not operated. THE APPLIANCE DOESN’T OPERATE Check if the injector holes are opened or not. -
Page 9: Ginjector Change And Gas Setting
GAS FRYERS Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING GAS FRYER BURNER-INJECTOR CHANGE CHART 7FG010 7FG020 Gas Group Injector mm Injector mm 30 mbar 50 mbar 37 mbar 50 mbar Change of Burner Injector; Rip off the injector at the entrance of burner with a suitable tool. Change A injector by paying attention to the datas at chart with suitable injector. -
Page 10: Hgas Connection Images
GAS FRYERS GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image 2 Image 1 Image 3... -
Page 11: Ispare Part List-Exploding Drawing
GAS FRYERS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.7FG010... - Page 12 GAS FRYERS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları...
- Page 13 GAS FRYERS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.7FG020...
- Page 14 GAS FRYERS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları...
