Sunjoy L-OF083PST-2 Assembly Instructions

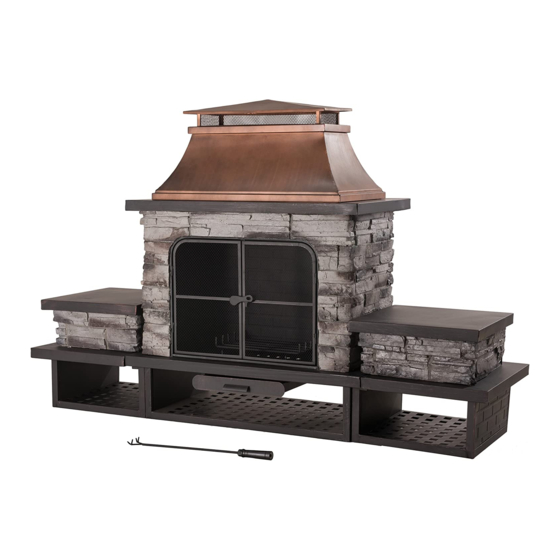

Congratulations on your purchase of our SUNJOY Fireplace. Our clear, easy to follow, step-by-step instructions

will guide you through the assembly process form start to finish.

WARNING:

Keep all children and pets away from assembly area. Children and pets should be supervised when they

are in the area of the chair construction.

Keep assembly area at least 6 feet from any obstruction such as a fence, garage, hou se, overhanging

branches, laundry line, or electrical wires.

Some parts may contain sharp edges. When assembling and using this product, basic safety precautions

should always be followed to reduce the risk of personal injury and damage to the product. Please read all

instructions before assembly and use.

Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.

The fireplace is HOT! DO NOT allow your chil dren to play near it when fireplace is in use.

To avoid destroying the finish, please handle the surface by using a soft cloth instead of your bare hands.

Do not touch the surface of iron fire grate and the fire bowl while in use, it may cause burns.

This fireplace is intended for outdoor use only. Do not use on wooden decks. DO NOT use in the vicinity

of flammable objects.

This fireplace is intended to burn wood logs only. Do not burn leaves, or other combustible materials in

the fire bowl.

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal

inside, vehicles or tents.

2015/10

Item #: L-OF083PST-2

1/4

Table of Contents

Need help?

Do you have a question about the L-OF083PST-2 and is the answer not in the manual?

Page 1 Assembly Instructions Item #: L-OF083PST-2 Congratulations on your purchase of our SUNJOY Fireplace. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process form start to finish. WARNING: Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the chair construction.
Page 2 Parts List: Parts Parts Chimney Upper side base Lower side base Body Poker Grate Bolt M6×15 Side table top Flat washer M6 Assembly Instructions: Fig.1 Fig.2 Step 1: Open the door of b ody (C), and put grate (D) Step 2: Put top (B) on body (C), chimney (A) on top (B) into body (C) as the arrowhead direction as Fig.1 in order as Fig.2.
Page 3 Step 3: Fix upper side base (F) and lower side base (G) with bolt (AA) and flat washer (BB), as Fig.3 Fig.3 Fig.4 Step 4: Insert the assembled side base into the body C, as Fig.4 Fig.5 Step 5: Put the side table top (E) on upper side base (F) as Fig.5. (Note: The table top side without stone should face the body.) Use Poker (H) as necessary.
Page 4 Service: For technical assistance on assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 PM EST or Email cus t customer.care@sunjoygroup.com...
