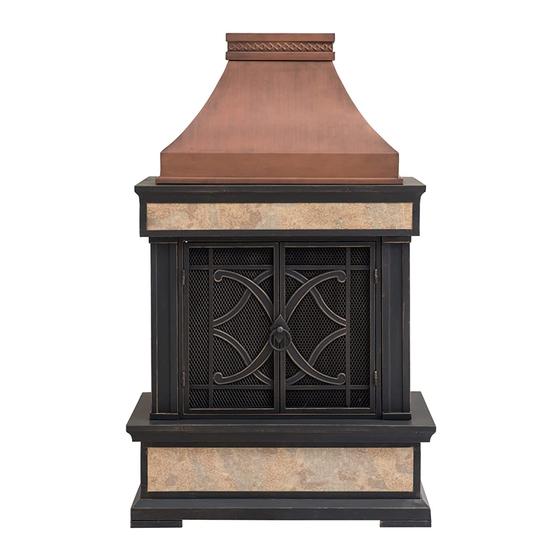

Heirloom Slate Fireplace with Cover
Congratulations on your purchase of our SUNJOY Heirloom Slate Fireplace with Cover. Our
clear, easy to follow, step-by-step instructions will guide you through the assembly process
from start to finish.
WARNING:
 Keep all children and pets away from assembly area. Children and pets should be supervised
when they are in the area of the Fireplace construction.
 Keep assembly area at least 6ft/1.8m from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
 Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product. Please read all instructions before assembly and use.
 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
 Assemble on level ground.
 For outdoor use only.
Please take time to read these instructions thoroughly and follow each step carefully for safe
and easy operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at
1-866-578-6569 from 8:30AM to 5:30PM EST, or email us at sams@sunjoygroup.com, or visit
www.sunjoydirect.com
Item# L-OF117PST-A
IMPORTANT
for assistance.

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-OF117PST-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-OF117PST-A

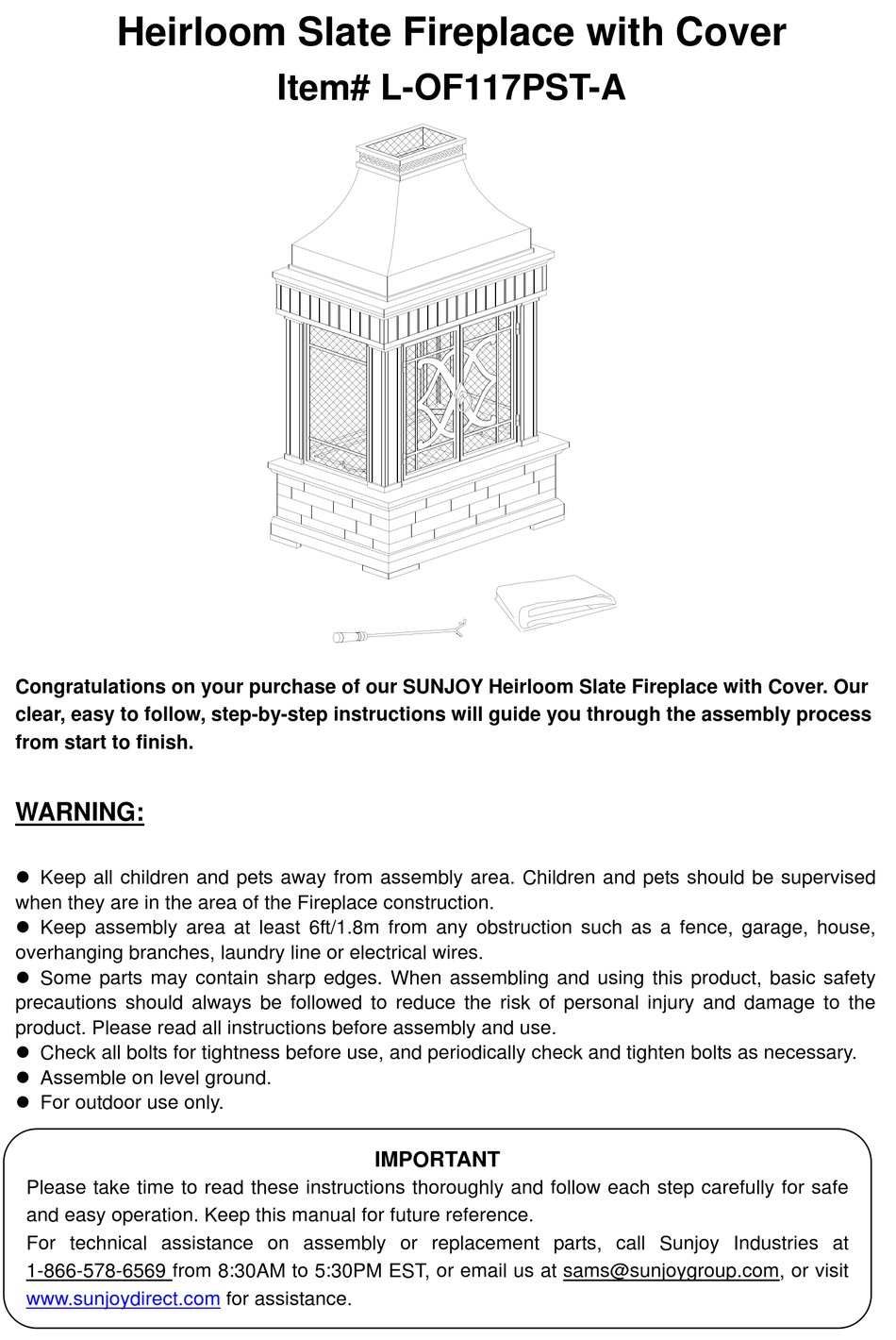

  • Page 1 Heirloom Slate Fireplace with Cover Item# L-OF117PST-A Congratulations on your purchase of our SUNJOY Heirloom Slate Fireplace with Cover. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING:  Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the Fireplace construction.
  • Page 2: Parts List

    Parts List Description Chimney Top Chimney Upper Base Side Mesh Rear Board Post Door Slice Door Holder Fire Bowl Base Poker Cover Bolt M6x15 Flat Washer M6 Nut M6 Wrench M6 Step 2: Step 1: Put Upper Base (C) upside down and Set Rear Board (E), Side Mesh (D) and Door attach the four Posts (F) on it as shown (G) between the four Posts (F).
  • Page 3 Step 4: Step 3: Attach Door Holder (I) to Door (G) by through Put the assembled part on Base (K), then fix Door (G), and Slice (H), then fix it by Nut (CC) Base (K) with Post (F) by Bolt (AA), Flat as shown above.
  • Page 4 877-738-7325 to obtain it from V-SEAL Sealers. Limited Warranty Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
