Leviton 37A00-1 Installation Instructions And User Manual

WARNINGS AND CAUTIONS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker
or fuse and test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Use this device with copper or copper-clad wire only.

DESCRIPTION

The 37A00-1 Leviton Auxiliary Switch (Figure 1) is an optional companion device used with the Leviton Universal Powerline Bus (UPB) Dimmer Switch (600W, 1000W, 1500W, or
2400W), 35A00-3 UPB Non-Dimming Switch, and 40A00-1 UPB Relay Switch for multi-way circuits. The Leviton Auxiliary Switch has a rocker switch that controls the lighting load in
the exact same manner as the rocker switch on the respective Leviton UPB Wall Switch.

Changing Switch Color

The color of the Leviton Auxiliary Switch may be changed to complement the interior décor. The Leviton Auxiliary Switch is supplied
with a white switch plate. Additional colors are available; contact your Leviton distributor for more information. When changing the switch
plate, make sure that the switch is disconnected from all power, and proceed as follows:
1. The switch plate attaches to the Leviton Auxiliary Switch with two latches on the right and two on the left. Using a small-bladed
screwdriver, gently depress the upper and lower latch on one side while lifting up on the plate. Once the latches are released on one
side, remove the switch plate from the other side.
2. Align the latches of the new switch plate to the openings on the mounting plate and gently snap into place.

INSTALLATION INSTRUCTIONS

Leviton Auxiliary Switches are used in conjunction with Leviton Dimmer, Non-Dimming, and Relay switches to produce multi-way
circuits. Multi-way circuits make it possible for a group of switches to control the same light or set of lights. This section will illustrate how
to make the connections.
NOTES:
1. Refer to Figure 1 to determine the wire colors for each connection.
2. The Line (black) wire must be accessible for the installation of all Leviton Auxiliary Switches. This wire may be connected to either
phase of the 120/240V supply. The blue and/or gray wire on the Leviton Auxiliary Switch can be connected to either earth ground
or neutral. The blue and/or gray wire is only used to light the LED on the switch. This LED only indicates that power is applied and
serves as a night-light. Connect the blue wire only to light the LED blue. Connect the gray wire only to light the LED red. Connect
both the blue wire and the gray wire to light the LED magenta.

Installation Procedure

1. Be sure that all power to the load has been disconnected by turning off the circuit breaker.
2. If applicable, remove the faceplate from the existing wall switch, remove the existing wall switch from the wall box, and disconnect the wires from the existing wall switch. Identify
the "Line", "Neutral", and "Traveler" wires.
3. Remove 3/4" of insulation from each of the wires on the Leviton Auxiliary Switch. Install the Leviton Auxiliary Switch by connecting wires per wiring configuration shown in Figure 3.
4. After all connections have been made, be certain that all wire connectors are firmly attached and there is no exposed copper.
5. Gently place the wires and Leviton Auxiliary Switch into the wall box with the LED at the top of device. Using the supplied screws, attach the Leviton Auxiliary Switch to the wall box.
6. Before installing the faceplate, restore power to the circuit.
7. After testing the Leviton Auxiliary Switch for proper local operation (Table 1 and Table 2), install a Decora
AUXILIARY SWITCH
Installation Instructions and User's Guide

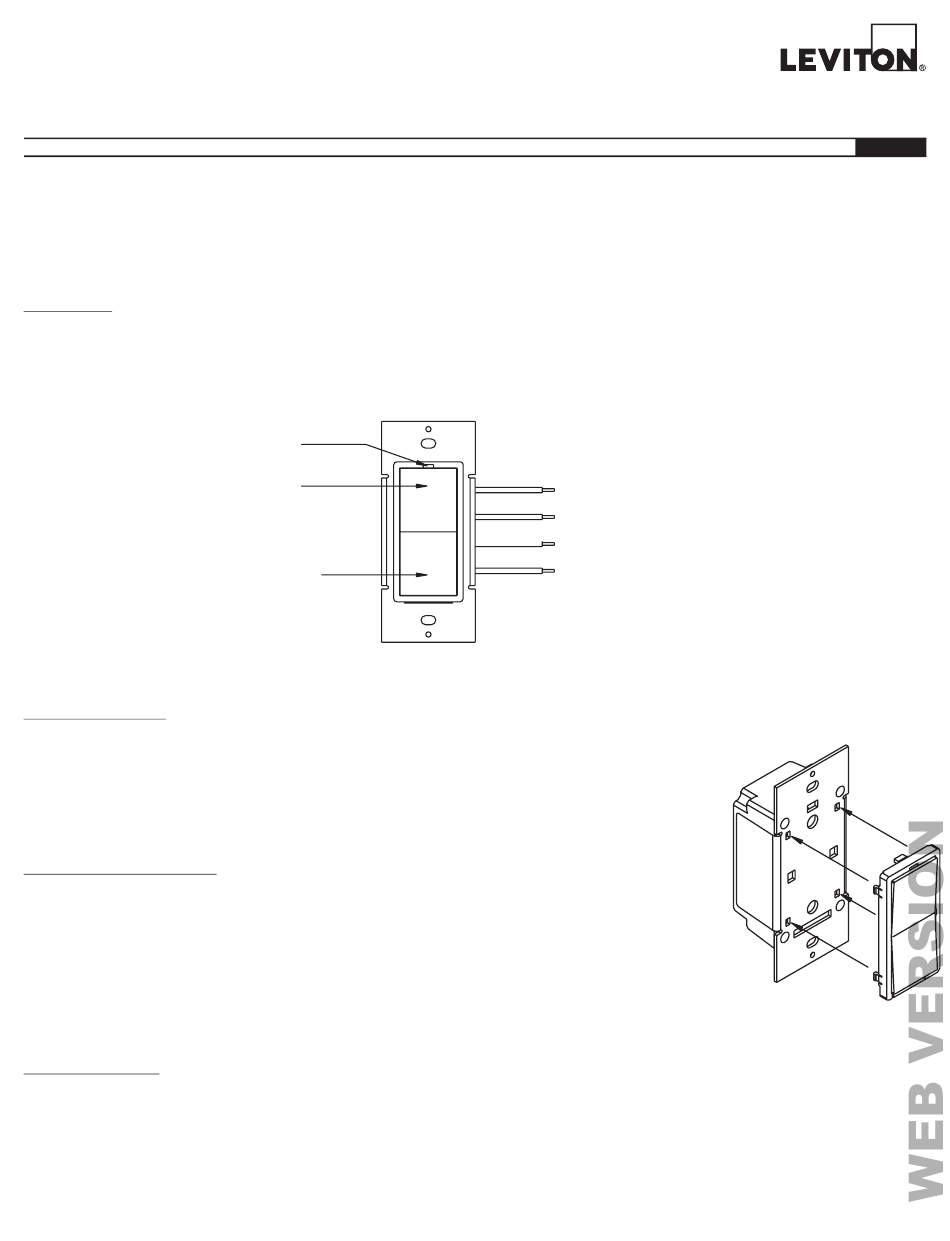

Figure 1 - Auxiliary Switch
TÉMOIN DEL
BOUTON
SUPÉRIEUR
ON/BRILLANT
BOUTON
INFÉRIEUR
OFF/GRADATION
Cat. No. 37A00-1
INSTALLATION
WARNINGS AND CAUTIONS
• To reduce the risk of overheating and possible damage to other equipment, when
configured as dimming-capable, do not install to control a receptacle, a motor-operated
appliance, a fluorescent lighting fixture, or a transformer-supplied appliance.
• For indoor use only.
• SAVE THESE INSTRUCTIONS.
NOIR
LIGNE
GRIS
*NEUTRE
(POUR LE TÉMOIN ROUGE)
BLEU
*NEUTRE
(POUR LE TÉMOIN BLEU)
JAUNE
CONTRÔLE
faceplate over each switch.
®
DI-022-HL371-05A
AR2243
(37I00-1)
ENGLISH
Figure 2 - Changing Switch Color
