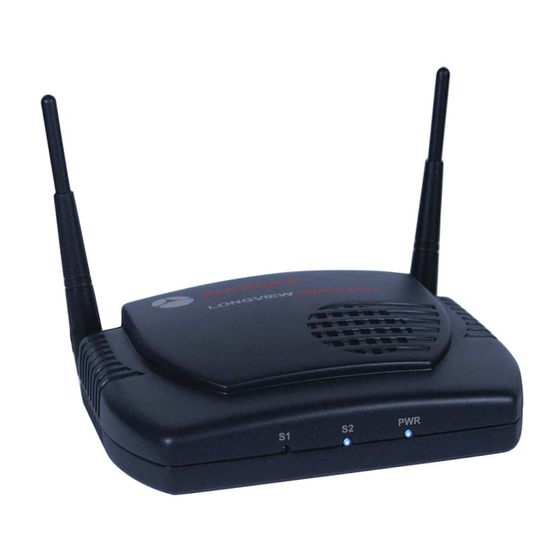

Avocent LongView Wireless Quick Installation Manual

The following instructions will allow you
to connect your LongView Wireless units.
Should you require assistance, please
consult your installer/user guide.

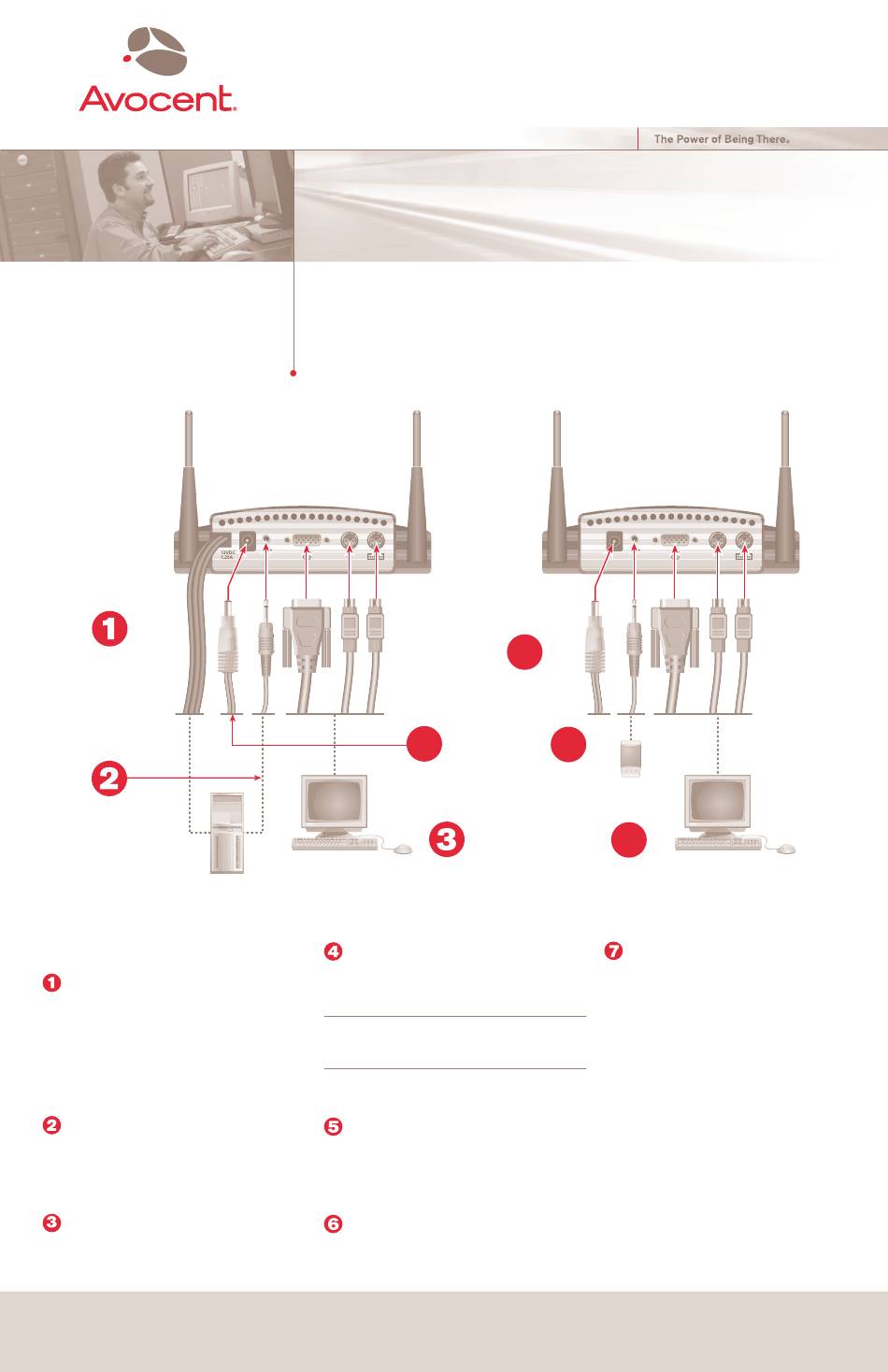

Connect the
transmitter cable into
the appropriate ports
on the computer.
Connect the audio.

Installing the LongView Wireless transmitter

Connecting the computer's peripherals
Power down the computer that will be part of your LongView
Wireless system and unplug its peripherals. Place the
transmitter near the computer and connect the LongView
Wireless transmitter cables into the computer's PS/2
keyboard, PS/2 mouse and monitor connections.

Connecting the audio

Using the supplied audio cable, connect one end to the
transmitter's audio input connection and the other end to
the computer's audio output connection.

Connecting a local user to the transmitter

Connect the local user's keyboard, monitor and mouse into
the appropriately marked ports on the rear of the transmitter.
To Contact Avocent Technical Support
Avocent, the Avocent logo, The Power of Being There and LongView are trademarks or registered trademarks of Avocent Corporation or its affiliates. All other marks are the property of their respective owners. ©2003 Avocent Corporation. All rights reserved.
Quick Installation Guide
LongView
To connect a LongView Wireless
Transmitter
Connect to an
AC power source.

Powering up the transmitter and computer

Connect your transmitter to an AC power source with one
of the included power supplies and power up your computer.
NOTE: Use only an Avocent-supplied power supply. The
transmitter must be powered up before the computer.

Installing the LongView Wireless receiver

Connecting the peripherals

Connect the extended user's keyboard, monitor and
mouse into the appropriately marked ports on the rear of
the receiver.
Connecting the audio
Connect your PC speakers into the receiver's audio
output connection.
