  • Page 1 2000 Series HMI...
  • Page 2 This manual provides an overview the features of the 2050M control (aka Human-Machine Interface).

  • Page 3: Machine Interface

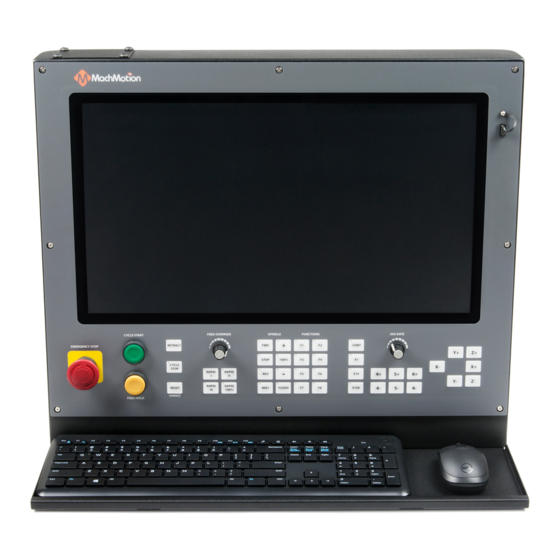

    1. Overview The 2000 series control is an Industrial PC control with an integrated 21.5" touch screen and membrane operator panel. 2. Connections 1. Machine interface These are the only required connections to make to the control before you turn it on.

  • Page 4: Specifications

    Power Source DC 15V- 30V 2.4 amps Operating Temperature 0°C to 40°C [32°F to 104°F] Operating System Microsoft Windows IOT (Compare to Windows 10) MachMotion Control Software Installed, Powered By Mach4 Software Software Package Core Processor Intel I3 (2.7GHz) Hard Drive...

  • Page 5: Mechanical Drawings

    Ethernet LAN (RJ45) Port 1 (Networking and internet) USB Ports 1 (External) 2 (Internal) Monitor 21.5" Capacitive Touch Color LCD Resolution 1920 X 1080 Keyboard Wireless - Full QWERTY with numpad Mouse Wireless - Optical mouse with scroll wheel Enclosure Dimensions 23.125"(W) X 20.0"(H) X 3.25"(D) Material...

  • Page 6: Spindle Control

    3. Cycle Cancels Retract is an optional feature, currently in development and not operational. Check in with MachMotion for more information! Cycle stop does a full cancel of the file, turns off the spindle and coolant, and puts the machine in idle.

  • Page 7: Function Buttons

    There is not a percentage or display of this jog rate on the screen. Warranty Information MachMotion warranty policy is subject to change. Updated information is available at our website: https://machmotion.com/warranty The MachMotion Team http://www.machmotion.com...
