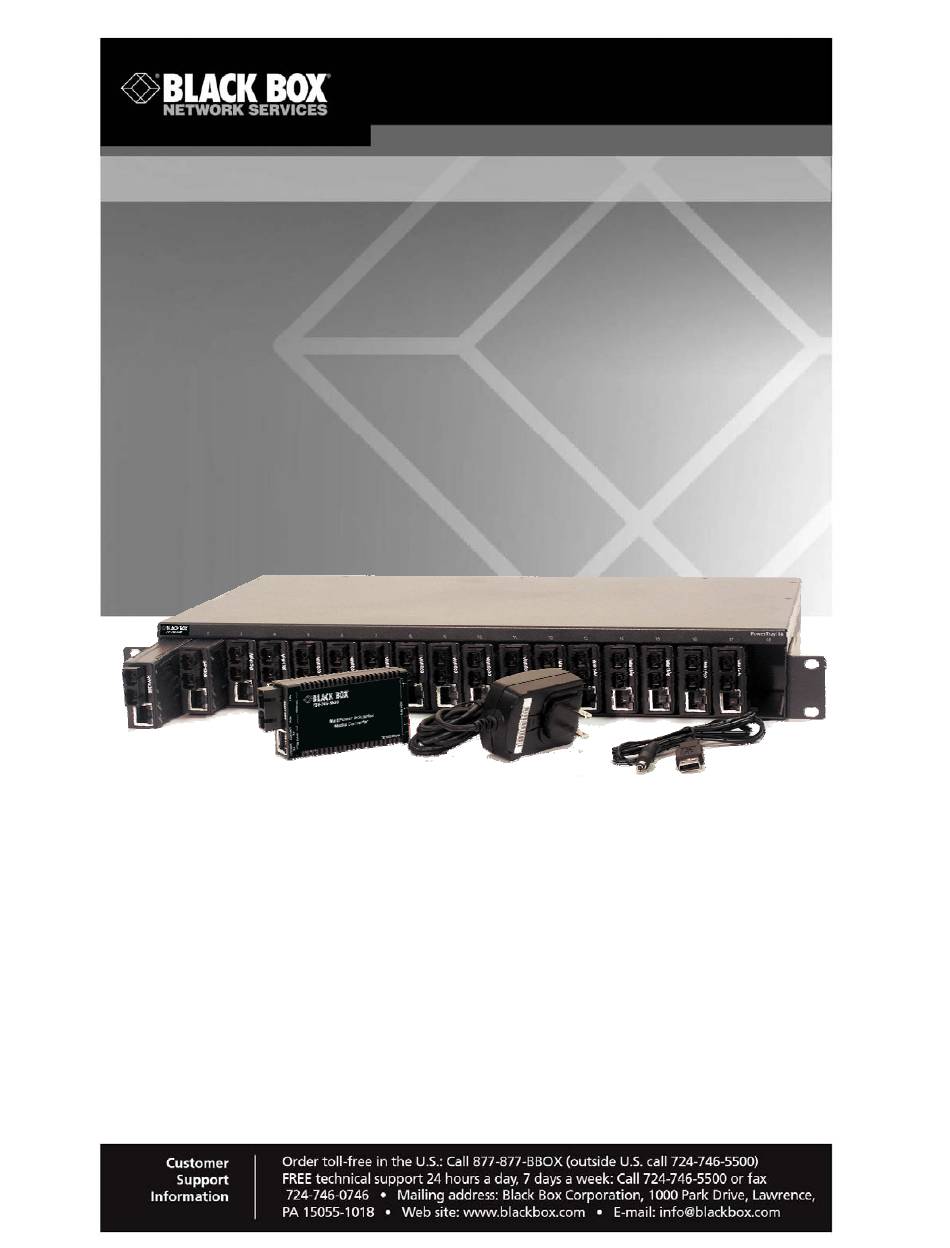

- Page 1 LHC018A-AC-R2 IE PowerTray 18-Slot AC Provides high-density mounting and powering for all our Miniature Media Converters.
- Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 724-746-5500 | blackbox.com...
- Page 3 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
- Page 4 Certifications Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
-
Page 5: Table Of Contents
Specifications ..................7 Overview: About the IE PowerTray 18-Slot AC........8 Install the IE PowerTray 18-Slot AC and and IE Miniature Media Converters ....................9 Contacting Black Box ................10 ... -
Page 6: Part Numbers
Part Numbers Part Numbers Part Number Description LHC018A-AC-R2 IE PowerTray 18-Slot AC Page 6 724-746-5500 | blackbox.com LHC018A-AC-R2... -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications AC Input Load 100 to 240 ±10% VAC, 50/60Hz, 1.5 to 0.75A Operating Temperature -4°F to +158°F (-20°C to +70°C) Storage Temperature -40°F to +185°F (-40°C to +85°C) Humidity 5% to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions 2.30”H x 16.97"W x 9.25”D... -
Page 8: Overview: About The Ie Powertray 18-Slot Ac
Chapter 2: Overview 2. Overview: About the IE PowerTray 18-Slot AC The IE PowerTray 18-Slot AC is a modular enclosure for installing up to 18 Black Box Compact Converter Form Factor miniature media converters. The IE PowerTray 18-Slot AC features an internal AC power supply. -
Page 9: Install The Ie Powertray 18-Slot Ac And And Ie Miniature Media Converters
Chapter 3: Install the IE PowerTray 18-Slot AC 3. Install the IE PowerTray 18-Slot AC and and IE Miniature Media Converters The IE PowerTray 18-Slot AC mounts into an equipment rack. Black Box recommends turning OFF the power to the chassis before proceeding. -
Page 10: Contacting Black Box
Chapter 4: Contacting Black Box 4. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746... -
Page 11: Electrostatic Discharge Precautions
Chapter 5: Electrostatic Discharge Precautions 5. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 12 LHC018A-AC-R2 Rev. 1 50-80086BB Rev. A3...
