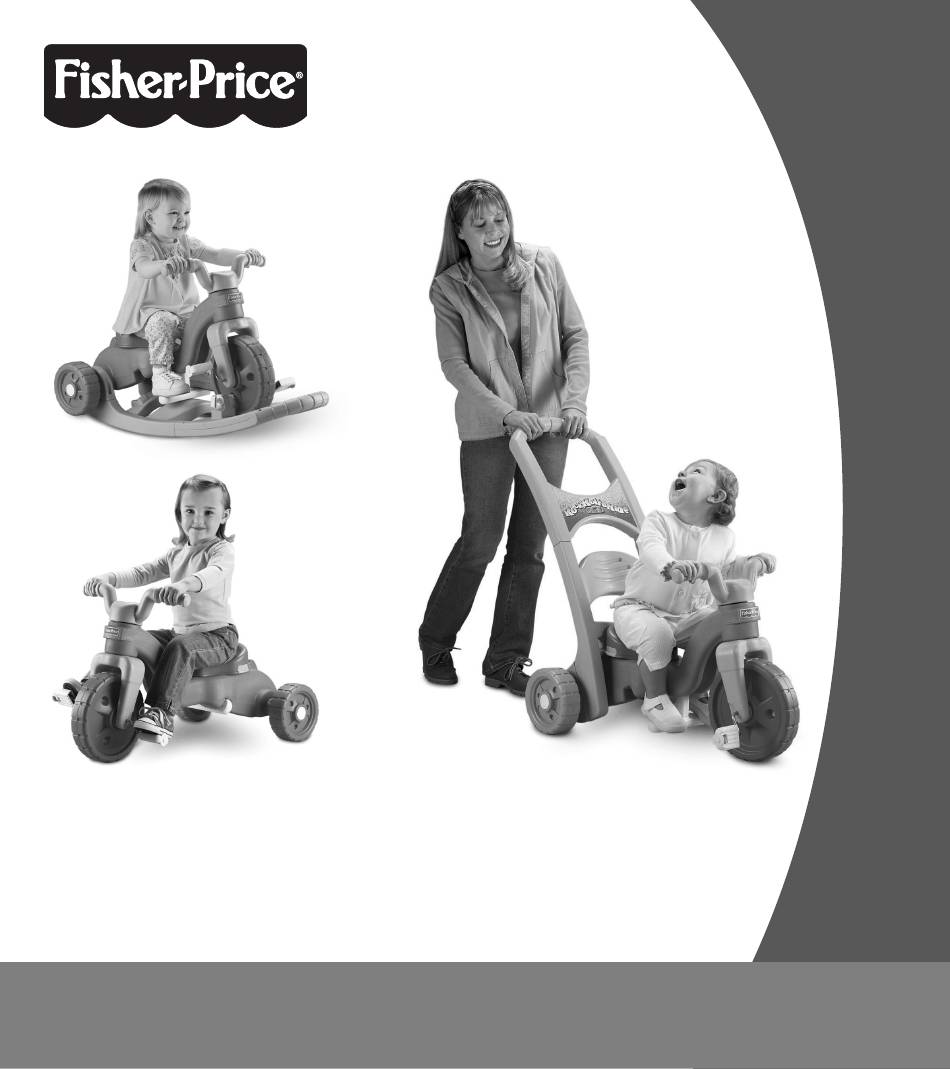

B9701
TM
Rocking fun
for littlest ones!
Help toddlers roll along!
Extra long handle for comfort.
Remove handle
for pedaling fun.
Seat adjusts for
growing kids!
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Age: 1
½
years - 5 years.
Weight Limit: 50 lbs (23 kg).
Tools needed for assembly: Phillips Screwdriver,
Hammer and Scrap Block of Wood (all not included).
www.fisher-price.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the B9701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price B9701

Summary of Contents for Fisher-Price B9701

  • Page 1 B9701 Rocking fun for littlest ones! Help toddlers roll along! Extra long handle for comfort. Remove handle for pedaling fun. Seat adjusts for growing kids! Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required.

  • Page 2: Consumer Information

    Consumer Information Fasteners WARNING Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten screws. To avoid serious injury: • Adult supervision required. • Never use near cars and other motor vehicles, near streets, steps, sloped drive- ¾ #10 x "...
  • Page 3 Parts Note: The base/handle assembly Parts not shown: Label Sheet can be attached to the trike in Seat Pin either the Ride-on Rocker (page 9) Assembly Tool or Learn to Pedal (page 10) mode. Seat Handlebar Frame Cover 2 Base/Handle Covers Frame Straight Axle 2 Rear Wheels...
  • Page 4 Assembly CAUTION Frame Rear Wheel This product contains small parts in its Hole Wheel unassembled state. Adult assembly is required. Hole • Please save all packaging material until assembly is complete to ensure that no parts are discarded. • Please wipe each part with a clean, dry, cloth before assembling this product.
  • Page 5 Assembly Assembly Tool Rear Wheel Spoke Side Up Wheel Cap Cap Nut Straight Axle • Fit the wheel cap into the center of the wheel. Tap the wheel cap with a hammer to secure it to the wheel. • Set the frame assembly aside. Pedal Hub Scrap Block of Wood...
  • Page 6 (about ") is still visible. Tighten the screw. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052, U.S.A. ©2008 Mattel, Inc. All Rights Reserved. ® and designate U.S. trademarks of Mattel, Inc.
  • Page 7 Assembly Knobbed End Seat Frame Opening Footrest ➥ Footrest Knobbed End • Insert the knobbed end of the footrest up through the opeaning in the underside, center of the frame ¼ • Rotate the footrest turn Seat Mount Top View •...
  • Page 8 Assembly Handle Top Base Wheel Grooves Retainers Handle Bottom Base/Handle • Place the base/handle assembly on a flat surface so that • Fit the handle top and bottom to the end of the base, as shown. the wheel retainers are upright. •...
  • Page 9 Decoration Rock Mode IMPORTANT! Be sure to adjust the seat in the most for- Handle ward position for Rock mode. Center of Label Place Center of Label Here • Before applying the label, wipe the surface of the handle with a clean, dry cloth to remove any dust or oils. •...

  • Page 10: Roll Mode

    Roll Mode Base/Handle • Rotate the base/handle to the upright position. Base/Handle Handle Pin • Insert the handle pin through one side of the base/handle, through the holes in the back of the frame and out through the hole in the other side of the base/handle. Make sure the handle pin “snaps”...

  • Page 11: Ride Mode

    Ride Mode Base/Handle • Rotate the base/handle down, under the trike, to the rock position. Base/Handle Cover Base/Handle • Remove the screws from the base/handle covers. Base/Handle • Remove the base/handle covers. Handle Pin • Remove the base/handle. • If you are converting from the roll mode, remove the handle pin from the base/handle and the back of the frame.

  • Page 12: Maintenance

    Ride Mode Storage Flared End Handle Cover Handle Pin • Rotate the footrest up toward the rear wheels and snap it into the recess in the underside of the frame. IMPORTANT! It is good practice to start training children very young regarding the importance of helmet use. When children are older and riding bicycles and faster vehicles, it is important that they use a helmet each and every time Handle Cover...
