Sanken CUW-180 Instruction Manual

FROM SANKEN MICROPHONES
ADJUSTABLE STEREO 0° TO 180° DUAL
CARDIOID CONDENSER MICROPHONE
INSTRUCTION MANUAL FOR CUW-180
POWERING
This microphone is designed to be driven by 48V phantom power only.
ENVIROMENTAL CONDITIONS FOR USE AND STORAGE
The microphone should be stored only in temperatures between 0˚ and 40˚ C
(32˚-104˚ F), and humidity between 0% and 80%.
Do not store or use this microphone in dusty environments.
Do not store where there is high humidity or excess moisture.
Do not store in situations with strong vibrations or constant shaking.
MAINTENANCE
Wipe only with a soft cloth.
Do not use thinners or benzene.
Use a neutral detergent and clean with a dry, soft cloth.

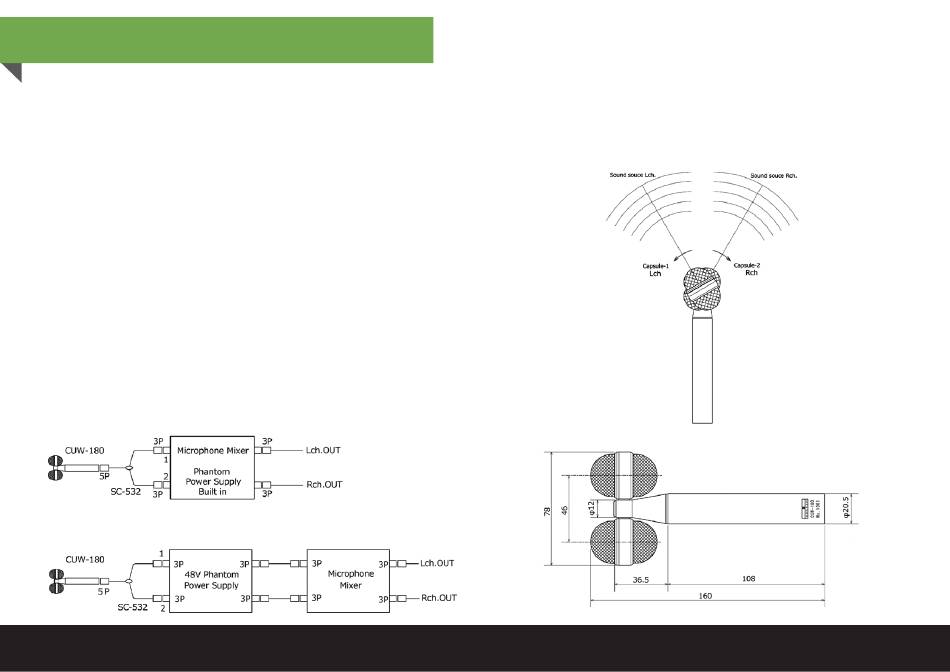

HOW TO CONNECT
CUW-180 is an X-Y Stereo Microphone that has two independent cardioid
capsules. Capsule-1 is Left channel, and Capsule-2 is Right channel.
Microphone Mixer - phantom power supply built in
External phantom power supply
For more information visit
SETTINGS
Rotate upper capsule (Capsule-1) to the left from the center position. One click
is equivalent to 15 degrees step.
The lower capsule (Capsule-2) should be rotated to the right side.
Maximum rotation is ±90 degree. Do not force rotation.
DIMENSIONS
sankenchromatic.com
