Cooler Manual XRC-4501-OW
4500 Watt oil to water cooler
XRC-4501-OW, Doc.-No. 50005553
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XRC-4501-OW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comet XRC-4501-OW

  • Page 1 Industrial X-Ray Cooler Manual XRC-4501-OW 4500 Watt oil to water cooler COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 1 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 2 Layout / Structure 07/01/2013 R. Moser Update Chapter 3 07/09/2015 M. Schmid Change Shell Diala 01/12/2015 M. Schmid New electrical drawing COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 2 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 3: Table Of Contents

    Changing the switching point of the flow switch 1 and 2 Maintenance Putting out of operation Outline Drawing Circuit Diagrams Electrical Diagram Flow diagram Illustration Cooler Declaration of conformity COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 3 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 4: Before You Start

    Never operate damaged or leaking equipment! Before starting any service work disconnect the cooling unit from the mains. COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 4 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 5: Product Description

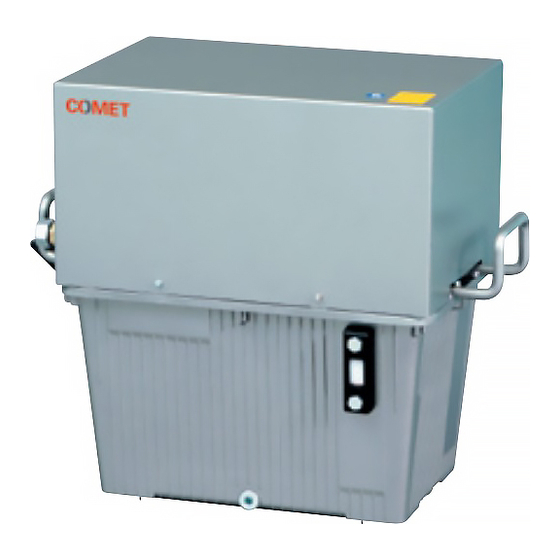

    Product Description The cooling unit XRC-4501-OW is intended for the cooling of an oil circuit. Oil circu- lates between the cooling unit and the heat source. The oil is re-cooled by a water- cooled heat exchanger. Cooling hoses are connected to the cooling unit via screw connections (M 26 x 1.5).
  • Page 6: Technical Data

    Flow switch open: < 14.0 l/min Flow switch close: > 15.5 l/min Thermal switch open: > 50°C Thermal switch close: < 47°C COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 6 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 7: Performance Data And Overview

    Performance data and overview Electrical Connector Coolant Inlet Oil Inlet Coolant Outlet Oil Outlet COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 7 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 8: Installation

    • Check oil level and refill if necessary • Stop cooling unit • Close cap of oil reservoir. • Mount cover. • Cooling unit is ready for use COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 8 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 9: Omf Filter

    OMF Filter We highly recommend using the OMF oil molecular filter unit with the XRC-4501-OW cooler. We supply our bipolar XRS-Modules with OMF filter as a standard. For detailed information please refer to the corresponding manual of the OMF filter.
  • Page 10: Changing The Switching Point Of The Flow Switch 1 And

    Open bypass valve ■ Let system run for a few minutes ■ Close bypass valve ■ Check oil level and refill if necessary COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 10 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 11: Maintenance

    • - Lock oil supply and return pipes. • - Lock cooling water supply and return pipes. • - Drain water off the cooling system for frost protection COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 11 of 16...
  • Page 12: Outline Drawing

    Outline Drawing COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 12 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 13: Circuit Diagrams

    Caution: The cooler has to be fused when used as a stand alone unit with 6 A, slow blow type. The default plug is a Cannon plug. COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 13 of 16...
  • Page 14: Flow Diagram

    Flow diagram COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 14 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 15: Illustration Cooler

    Illustration Cooler COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 15 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
  • Page 16: Declaration Of Conformity

    Declaration of conformity COMET AG Herrengasse 10, CH-3175 Flamatt XRC-4501-OW, Doc.-No. 50005553 Page 16 of 16 Tel. +41 31 744 9000, www.comet-xray.com...
