Figure 1: Spa Eclipse Mounting & Connections; Figure 2: Del Optimized Mixing System - Del ozone SPA ECLIPSE Installation Manual

Check Valve and the Ozone Generator. This indicates Check
Valve failure. Replace the Ozone Check Valve and tubing
immediately.**
d. Regularly inspect the inlet filter for dirt build-up. If the cotton
filter element is clogged, remove the filter assembly and clean
the filter or replace the filter assembly.
**WARNING: Trace amounts of nitric acid may be present in
the check valve or tubing and could be mildly corrosive. If
condensation is present shut off the ozone generator and allow
the moisture to be drawn out or dried up prior to servicing.

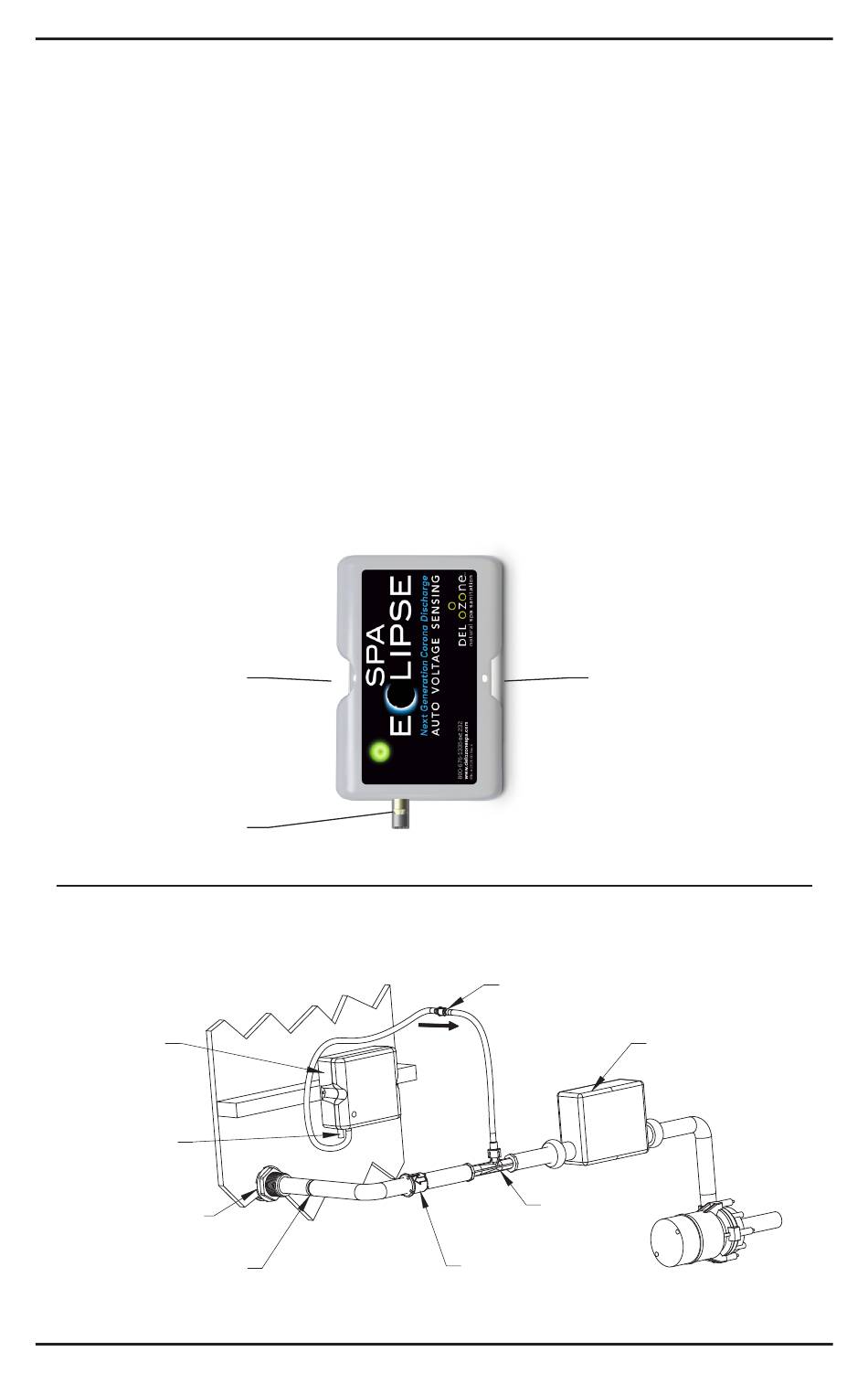

Figure 1: Spa Eclipse Mounting & Connections
Mounting
Flange
Tubing Connection
1/4˝ ID tubing
Spa Eclipse
Ozone Generator
Inlet Filter
Assembly
Return
Fitting
MTM™ Nozzle

Figure 2: DEL Optimized Mixing System

Spa Eclipse Installation & Operations Manual
Check Valve
Ozone
Flow
Injector
LGM™
Mixer
3
Mounting
Flange
Spa Controller/
Heater
Pump
