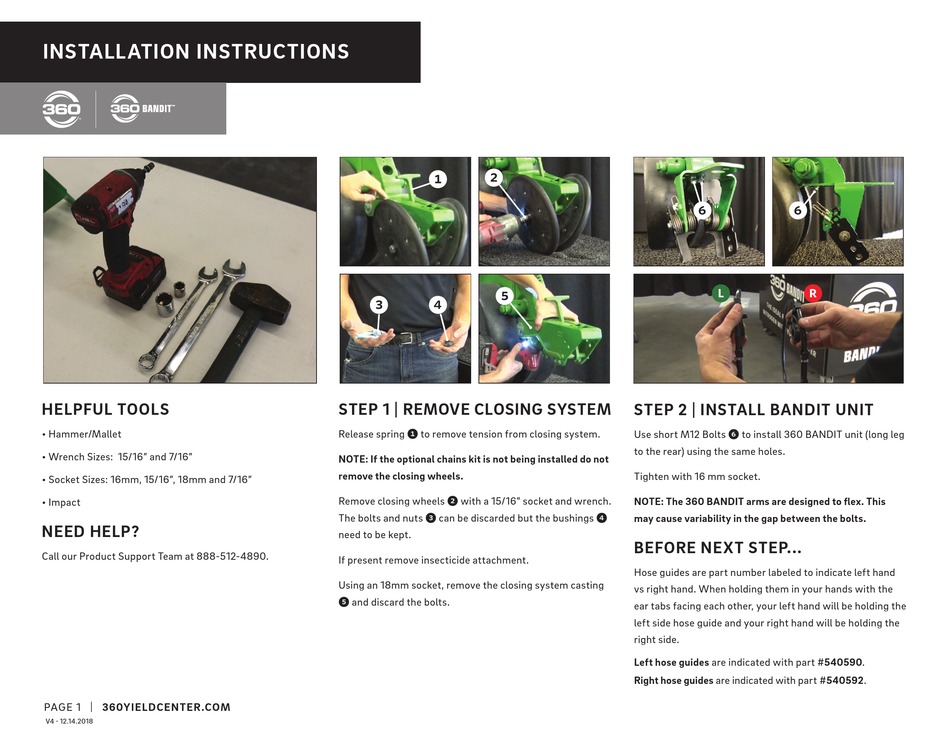

360 BANDIT Installation Instructions

INSTALLATION INSTRUCTIONS
HELPFUL TOOLS
• Hammer/Mallet
• Wrench Sizes: 15/16" and 7/16"
• Socket Sizes: 16mm, 15/16", 18mm and 7/16"
• Impact
NEED HELP?
Call our Product Support Team at 888-512-4890.
PAGE 1 360YIELDCENTER.COM
V4 12.14.2018
2
1
5
3 4
STEP 1 | REMOVE CLOSING SYSTEM
Release spring 1 to remove tension from closing system.
NOTE: If the optional chains kit is not being installed do not
remove the closing wheels.
Remove closing wheels 2 with a 15/16" socket and wrench.
The bolts and nuts 3 can be discarded but the bushings 4
need to be kept.
If present remove insecticide attachment.
Using an 18mm socket, remove the closing system casting
5 and discard the bolts.
6 6
l r
STEP 2 | INSTALL BANDIT UNIT
Use short M12 Bolts 6 to install 360 BANDIT unit (long leg
to the rear) using the same holes.
Tighten with 16 mm socket.
NOTE: The 360 BANDIT arms are designed to fl ex. This
may cause variability in the gap between the bolts.
BEFORE NEXT STEP...
Hose guides are part number labeled to indicate left hand
vs right hand. When holding them in your hands with the
ear tabs facing each other, your left hand will be holding the
left side hose guide and your right hand will be holding the
right side.
Left hose guides are indicated with part #540590.
Right hose guides are indicated with part #540592.
