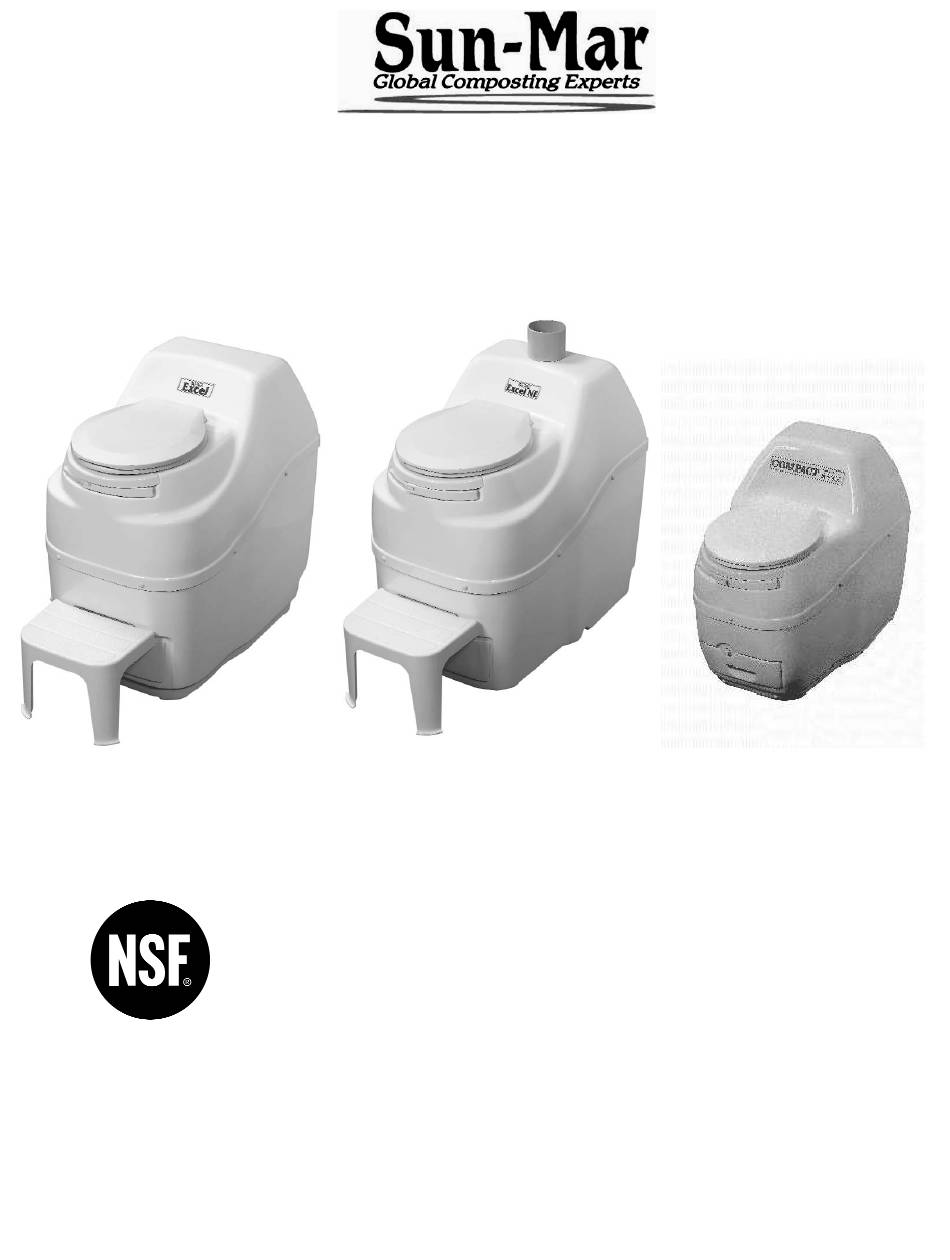

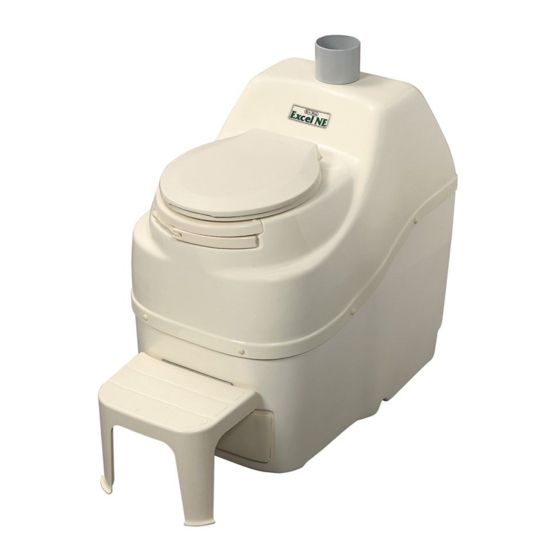

EXCEL
Certified to NSF/ANSI Standard 41
Standard 41
Certified for liquid containment,
odours, and solid end products in both
residential and cottage use
SELF CONTAINED TOILET
OWNER'S MANUAL
EXCEL NE
Serial No. ______________
Compact
RATED CAPACITY
Residential & Continuous Use
EXCEL 3 Adults or a family of 5 or
EXCLE NE Units; 2 Adults or families of 3
COMPACT Adult 1
Weekend & Vacation Use
EXCEL 6 Adults or families of 8 or
EXCEL NE Units; 5 Adults or families of 7
COMPACT 3 Adults or families of 4
Advertisement
Table of Contents
Related Manuals for Sun-Mar Excel CSEL-01001
Summary of Contents for Sun-Mar Excel CSEL-01001
- Page 1 Serial No. ______________ SELF CONTAINED TOILET OWNER’S MANUAL EXCEL EXCEL NE Compact RATED CAPACITY Certified to NSF/ANSI Standard 41 Residential & Continuous Use EXCEL 3 Adults or a family of 5 or Standard 41 EXCLE NE Units; 2 Adults or families of 3 Certified for liquid containment, COMPACT Adult 1 odours, and solid end products in both...
- Page 2 Models for which the manual applies: CSEL-01001 Excel Bone 115 V CSEL-01001W Excel White 115 V CSEL-01001-230 Excel Bone 230 V CSEL-01001W-230 Excel White 230 V CSNL-01101B Excel NE Bone CSNL-01101W Excel NE White CSEM-01400B Compact Bone CSEM-01400WB Compact White CSEM-01400BB Compact Bone - 230 V CSEM-01400WBB...
-
Page 3: Table Of Contents
OWNER’S MANUAL CONTENTS How Composting Spring Time Start Up Works Winter Use T T h h e e S S e e l l f f C C o o n n t t a a i i n n e e d d t t o o i i l l e e t t Removing Compost from the The Patented Bio-Drum Bio-Drum... - Page 4 Carbon/Nitrogen Ratio Almost all organic material will compost. The proper bulking material and human waste should be added to the composting toilet. In order to maintain a good balance between carbon-rich materials (SUN-MAR Compost Sure Green) and nitrogen-rich human waste only.
-
Page 5: The Patented Bio-Drum
4” vent which acts like a chimney creating a partial vacuum within the unit. The patented Bio-D D rum Unique to Sun-Mar, the patented bio-drum provides the necessary mass to maintain good compost and allows easy aeration of the compost by simply turning the drum. Excess liquid will exit through a screen in the bottom of the drum into the evaporation chamber. -
Page 6: Inspection
Damaged units should be refused. Call Sun-Mar immediately. ii) If the shipper has left- Report the damage immediately to the transport company and call Sun-Mar. iii) Soon after delivery, remove the Self Contained Toilet carefully from the carton- If there is hidden damage, or for any service Questions, contact Sun-Mar to determine the best course of action. -
Page 7: Installation
Installation EXCEL and EXCEL NE ROUGH IN DIMENSIONS COMPACT ROUGH IN DIMENSIONS - 5 -... -
Page 8: Space Requirements
S S e e l l f f C C o o n n t t a a i i n n e e d d T T o o i i l l e e t t E E l l e e c c t t r r i i c c I I n n s s t t a a l l l l a a t t i i o o n n Space 1)Compost will be removed from the finishing drawer. -
Page 9: Leading The Vent Through The Roof
Leading the vent As shown in the installation, the vent stack should end about 30” above the peak of the roof so that it is less subject to through the roof downdraft. Where the pipe is taken through the roof, a roof flashing may be required to seal the installation. -
Page 10: Space Requirements
E E X X C C E E L L N N E E I I n n s s t t a a l l l l a a t t i i o o n n 1)Compost will be removed from the finishing drawer. Ensure that there is at least 15” in front of Space the EXCEL NE so that the drawer may be removed from the unit. -
Page 11: Leading The Vent Through
Leading the vent As shown in the installation, the vent stack should end about 30” above the peak of the roof so that it is less through the roof subject to downdraft. Where the pipe is taken through the roof, a roof flashing may be required to seal the installation. -
Page 12: Start-Up And Use
Start Up and Use hese steps are only used when starting up your Self Contained toilet for the first time or when you have emptied the drum and need to re-start the compost. After installation is completed do the following: Step 1 : Spray Compost Quick: Remove the finishing drawer and spray the whole inner floor of the unit under the finishing drawer. -
Page 13: Ongoing Toilet Maintenance
O O n n g g o o i i n n g g T T o o i i l l e e t t M M a a i i n n t t e e n n a a n n c c e e Once your Self Contained toilet is installed and you have gone through the initial start-up procedure, follows the steps outlined below to keep your composting toilet working optimally. -
Page 14: Spring Time Start Up
A A d d d d W W a a t t e e r r & & M M i i c c r r o o b b e e M M i i x x Add some warm water to the remaining compost, enough to ensure that it is quite moist. Also, add some Sun-Mar Microbe Mix (two of scoops) to give the compost pile a “kick-start”... -
Page 15: Bio-Drum
R R e e m m o o v v i i n n g g C C o o m m p p o o s s t t f f r r o o m m t t h h e e p p a a t t e e n n t t e e d d B B i i o o - - D D r r u u m m The level of compost in the patented Bio-drum should never be more than half full. -
Page 16: Compost Too Wet
IMPORTANT: added fungus which begins to form on Application of a pesticide in a SUN-MAR toilet is not a the surface when it dries out. A health concern because all SUN-MAR units are vent- good, moist compost will not be ed. -
Page 17: Occasional Urine Odor Outside
The fan is a constantly moving part Fan has failed Have your serial number ready and call SUN-MAR for and has a finite service life. a replacement. Instructions are included with the replacement fan. -
Page 18: Fan Not Working
Check the power source. If this does not remedy changed. Do Not turn on and off the problem, have your serial number ready and call daily. SUN-MAR Liquid Increased usage. The amount of liquid varies substantially between Install the overflow drain. -
Page 19: Liquid Overflow
“Liquid Build up” for solutions. Thermostat Failure Have your serial number ready and call SUN-MAR for Your thermostat and fan are the two a replacement. (Detailed instructions are included... -
Page 20: Basic Instructions
B B u u l l k k i i n n g g M M a a t t e e r r i i a a l l When you run out of our Compost Sure bulking material, more Compost Sure through your Sun-Mar dealer, on line at www.sun-mar.com Do not use 100% peat moss as this will clog your drum screen and drains. - Page 21 ACCESSORY ITEMS FOR THE SELF CONTAINED TOILET SUN-MAR has developed a number of composting accessory items over the years in response to frequent requests from users. These items may serve to improve composting speeds under some circumstances. Name Description Container “Compost...
-
Page 22: Compact Specifications
COMPACT SPECIFICATIONS COMPACT EXPLOSION DIAGRAM & PART NUMBERS Toilet Seat White Drum Locker Release Button Humus Deflector Left Bowl Liner Compact Drawer Compact Tank Top Front Cover Rubber U Channel Air Intake Vent Handle Kit Heater Tray Compact Drum Compact Top Insulation Compact Shaft Drum Door... -
Page 23: Excel Specifications
EXCEL SPECIFICATIONS EXCEL EXPLOSION DIAGRAM & PART NUMBERS Toilet Seat Finishing Drawer Drum Screen Bowl Liner 10 Footrest EXCEL Drum Front Cover 11 EXCEL Heater Tray(Electric) EXCEL SS Shaft Assembly Handle Swivel 12 Heating Element(Electric) Nylon Drive Gear Plastic Drum Door 13 Electric Box (Electric) EXCEL Top EXCEL Tank... - Page 24 SUN-MAR Corp. warrants the original purchaser that this toilet is free from defects in material and workmanship under normal house or cottage use. SUN-MAR Corp. will furnish new parts for any part that fails within three years and five years on the fibreglass tank, provided that our inspection shows that such failure is due to defective material or work- manship.
