- Page 1 Field Check PLUS INSTRUCTION MANUAL and USER GUIDE Distributed exclusively by Martin Lishman Tel: 01778 426600 Fax: 01778 426555 www.martinlishman.com...

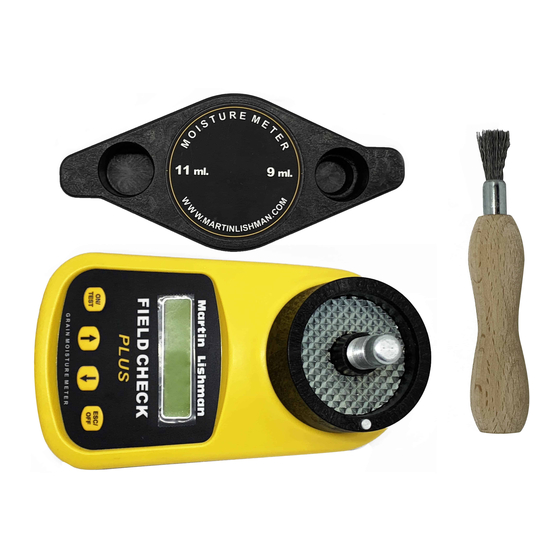

- Page 2 Introduction The Field Check PLUS moisture meter is a ground grain meter which provides quick and simple moisture readings while the processes of harvesting and drying are taking place. It is an accurate instrument that gives consistent repeat readings when several samples are taken.
- Page 3 will show the actual moisture content of the sample e.g. 14.5%. The right side of the display will show the average of the last 4 measurements e.g. %14.8%. 4. A new reading can be made by emptying and cleaning the test cell and filling it with a new sample.
- Page 4 To adjust the calibration of the meter Field Check PLUS is factory calibrated for every crop using the official methods of measuring moisture content as compiled by ISTA (International Seed Testing Association). The calibration scales are compiled using samples of crops grown in normal conditions. Differing growth factors...
- Page 5 b. When MEASURE appears in the display use the arrow keys or until BATTERY is displayed. Four bars indicates a full battery condition, 1 bar indicates a low battery. It is advisable to have an additional battery close at hand when 1 bar is showing. How to make your own grain calibration If you need to make a calibration scale for a particular crop that is not included in the meter, this can be done as follows:...
- Page 6 Quick Guide to Display Messages Symbol: Definition: Calibration has been adjusted from the factory setting for the crop being displayed. Temperature++ Grain temperature is above upper operating limit (50°C). Temperature-- Grain temperature is below lower operating limit (0°C). Grain moisture content is above upper limit (varies with crop). Grain moisture content is below lower limit (varies with crop).
- Page 7 Technical support, service and calibration checks Field Check PLUS is manufactured in Denmark by Supertech Agroline and distributed exclusively by Martin Lishman Ltd. For technical support and annual servicing contact us as below: Martin Lishman Ltd Unit 2B Roman Bank, Bourne, Lincs PE10 9LQ Tel: 01778 426600;...
