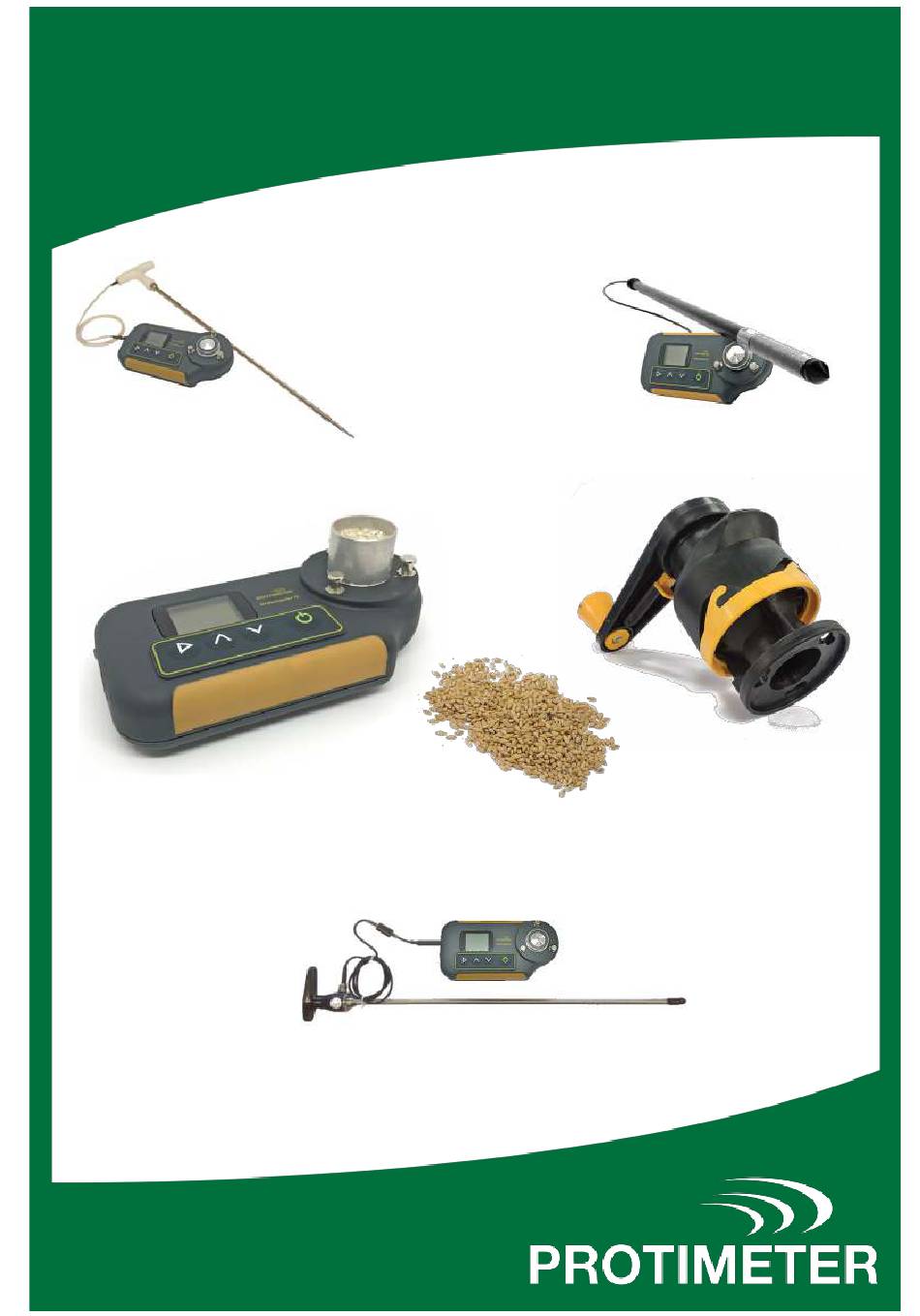

- Page 1 Martin Grainmaster i2-S Lishman GRN3000i2-S Instruction Manual Professional Crop Moisture Measurement Distributed by Martin Lishman Ltd Tel: + 44 (0)1778 426600 www.martinlishman.com...
- Page 2 Other products in the Martin Lishman range See our website for further details: www.martinlishman.com...
-
Page 3: Table Of Contents
Protimeter Grainmaster i2-S Grain Moisture Meter Contents Remember………………………………………..………………….……………………… Product features………………………………………...…………………………………. Taking a moisture reading……………………………………………………………..…. Display codes…………..………………………………………………………………….. Protimeter calibrations…………..………………………... ……………………..……… Meter calibration adjustment……………………………………………….…………..… Temperature correction ……...………………………………………..………………..… 11 Meter settings and Bluetooth………….…………………………………………………… 11 Care and Maintenance……………………………………………………...……….……. Moisture probes ………………………...………………………………..……..…………. 14 Temperature probes………………………………………….……………………………. 15 Specifications……………………………………………………………………………….. -
Page 4: Remember
REMEMBER! Always grind the sample Most calibrations are based on a ground sample (Page 8). Keep it clean For highest accuracy clean the grinder-compressor regularly (Page 12). Hard Wheat or Soft Wheat? The wheat calibration is for Soft Wheat. To convert to a Hard Wheat reading see Page 8. -
Page 5: Product Features
Product Features Items supplied Spare battery Meter Grain Cup Cleaning Brush Grinder-Compressor USB Cable Spare Grinder Grain Cell Blade and Feeder Ring Sample Spoon Quick Check Free first year Service Voucher Meter Functions Yellow Black Pips Standby Mode Optional External Probe Socket &... -
Page 6: Taking A Moisture Reading
Taking a Moisture Reading Step 1 - Prepare the Meter Disconnect any external probe; leave the meter to switch OFF. Ensure the Grain Cell is clean Place the Grain Cup on the Grain Cell Check the Grinder-Compressor is clean (see Page 12 for cleaning instructions). Ensure the compressor plunger is fully retracted, as follows: Align the Black Pips on the Slide the selector inwards to... -
Page 7: Display Codes
Align the Black Pips on the Slide the selector inwards to Rotate handle clockwise until it handle with the Yellow the Compress position clicks a few times Step 3 - Take the Reading Press and hold to display the moisture content of the sample. -
Page 8: Protimeter Calibrations
Protimeter Calibrations... -
Page 9: Meter Calibration Adjustment
Meter Calibration Adjustment Making Bias Adjustments to the Meter The meter reading can be adjusted to match another meter’s reading. The pre- programmed crop calibrations can be adjusted individually by +/-1.5%, as follows: Measure the moisture content of a sample in the normal way (see page 7) To increase the bias: Press and hold... -
Page 10: Temperature Correction
Temperature Correction The Importance of Temperature Hot meter, cold sample, low readings Keep meters out of direct sunlight, particularly in vehicles. If not, readings will be too low. Cold meter, hot sample, high readings Grain taken from a high temperature drier must be cooled before testing. -
Page 11: Meter Settings And Bluetooth
Meter Settings Default Settings The Grainmaster i2-S is supplied ready-to-use with ATC on, no bias adjustments and temperature in °C. To alter default settings Bias is adjusted as described on Page 9. Temperature units can be changed to suit personal preference and ATC can be switched off in Setup Mode, as below: To enter Setup Mode: With the meter switched off, press and hold ... -
Page 12: Care And Maintenance
Care and Maintenance Regular care and maintenance of the Grainmaster i2-S meter ensures accurate readings. Check the Grinder Blade and Feeder Ring A worn Grinder Blade and Feeder Ring causes inaccurate readings. Check regularly and replace (see below) if worn or damaged. - Page 13 It is also important to ensure that vital parts such as the grinder-compressor are working correctly. The Martin Lishman service centre is fully equipped to service your moisture meter throughout its working life. We also conduct testing clinics at various locations around the country where you can check your meter and obtain a test certificate to satisfy your crop assurance scheme.
-
Page 14: Moisture Probes
Moisture and Temperature Probe 1.5m (Part No. GRN3005) Used with the Grainmaster i2-S to check the moisture and temperature of grain while in the store. Nine moisture probe calibrations are pre-programmed into the Grainmaster i2-S: Wheat, Canola, Oilseed rape, Barley, Oats, Linseed, Beans, Peas, 0-100 scale. -
Page 15: Temperature Probes
Temperature Probes Grain Temperature Probe 1.5m (Part No. GRN6046) Stainless steel fast response probe used with the Grainmaster i2-S to check the temperature of stored grain. Bale Temperature Probe 600mm (Part No. GRN6155) T-Bar stainless steel fast response bale temperature... -
Page 16: Specifications
Warranty The Grainmaster i2-S (the unit) is guaranteed for 12 months from the date of purchase against any defect or malfunction caused by faulty parts or workmanship. To claim under warranty, the complete unit or part should be returned, at the claimant’s expense, to Martin Lishman Ltd with a written explanation of the problem.
