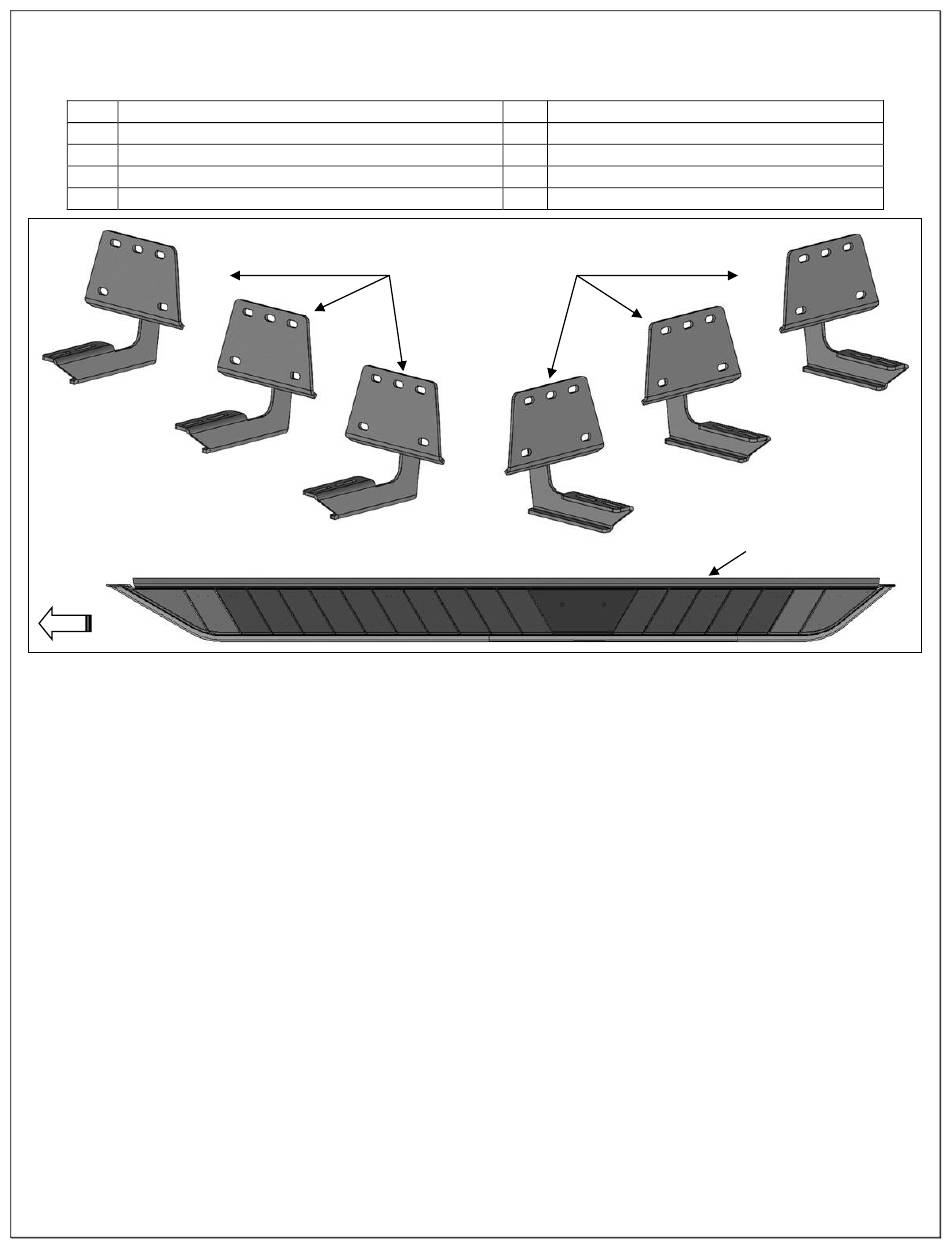

PARTS LIST:
1

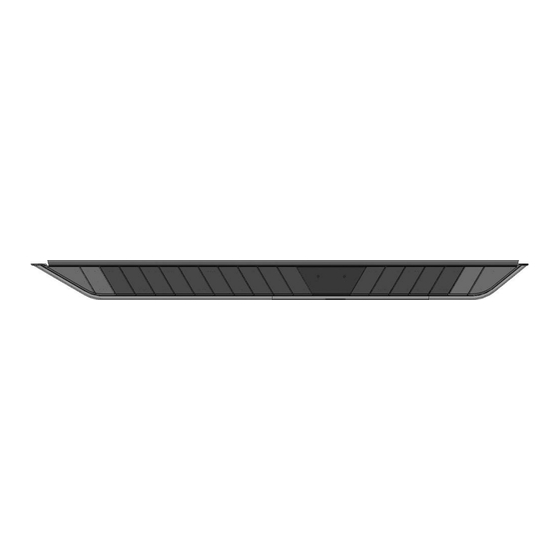

Driver/left side Pioneer Running Board
1
Passenger/right side Running Board
6
Universal Mounting Brackets (left or right)
18
8mm x 24mm x 2mm Washers
18
8-1.25mm Nylon Lock Nuts
NOTE: The front of the Running
Board is triangular shaped.
Front
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
1. Start the installation under the driver side of the vehicle. Locate the front (3) factory studs along the
inner side of the body panel, (Figure 1). Use a wire brush or thread chaser die to remove excess paint
or undercoating from threaded studs as necessary.
2. Select (1) Mounting Bracket. NOTE: All (6) Brackets are universal and will fit left or right side. Attach
the Mounting Bracket to the (3) factory studs with (3) 8mm Flat Washers and (3) 8mm Nylon Lock Nuts,
(Figure 2). Leave brackets loose at this time.
3. Repeat Steps 1 & 2 to install the Universal Brackets in the center and rear mounting locations along
the body panel, (Figures 3 & 4).
4. Carefully unwrap and select the Driver/left side Running Board. Use the illustration above to help
determine the correct Running Board. Place the Running Board on top of the Brackets. Locate the
channel openings in the bottom of the Running Board. Select (6) 6mm T-Bolts, (Figure 5). Insert the T-
Bolts into the channels in the bottom of the Running Board closest to the Brackets, (Figure 6). Lift the
Running Board up and guide the studs through the Brackets.
5. Attach the Running Board to the Brackets with (6) 6mm Flat Washers, (6) 6mm Lock Washers and (6)
6mm Hex Nuts, (Figures 7 & 8). NOTE: The Running Board is designed to fit close to the vehicle. It
may be necessary to loosen the Bracket hardware slightly and tilt the Brackets downward to insert the
Running Board between the Brackets and the body.
6. Level and adjust the Running Board as necessary and fully tighten all hardware.
7. Repeat Steps 1—6 for Passenger/right side Running Board Installation.
8. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
12
6mm x 20mm T-Bolts
12
6mm x 22mm x 2mm Flat Washers
12
6mm Lock Washers
12
6mm Hex Nuts
(6) Left or Right
Mounting Brackets
Page 1 of 3
PIONEER RUNNING BOARDS
2019 DODGE RAM 1500 QUAD CAB
Driver/left side
Running Board
6/12/18 (DP)
Advertisement
Table of Contents
Related Manuals for Barricade R108980
Summary of Contents for Barricade R108980
- Page 1 PIONEER RUNNING BOARDS 2019 DODGE RAM 1500 QUAD CAB PARTS LIST: Driver/left side Pioneer Running Board 6mm x 20mm T-Bolts Passenger/right side Running Board 6mm x 22mm x 2mm Flat Washers Universal Mounting Brackets (left or right) 6mm Lock Washers 8mm x 24mm x 2mm Washers 6mm Hex Nuts 8-1.25mm Nylon Lock Nuts...
- Page 2 PIONEER RUNNING BOARDS 2019 DODGE RAM 1500 QUAD CAB To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. Mild soap may be used also to clean the Running Board.
- Page 3 PIONEER RUNNING BOARDS 2019 DODGE RAM 1500 QUAD CAB Driver/left Side Installation Pictured (Fig 5) 6mm T-Bolt Front Front (Fig 6) Insert 6mm T-Bolts through the channel openings in the bottom of the Running Board (2) 6mm Flat Washers (2) 6mm Lock Washers (2) 6mm Hex Nuts (Fig 7) Driver/left side Running Board attached to Mounting Bracket at the front location...
