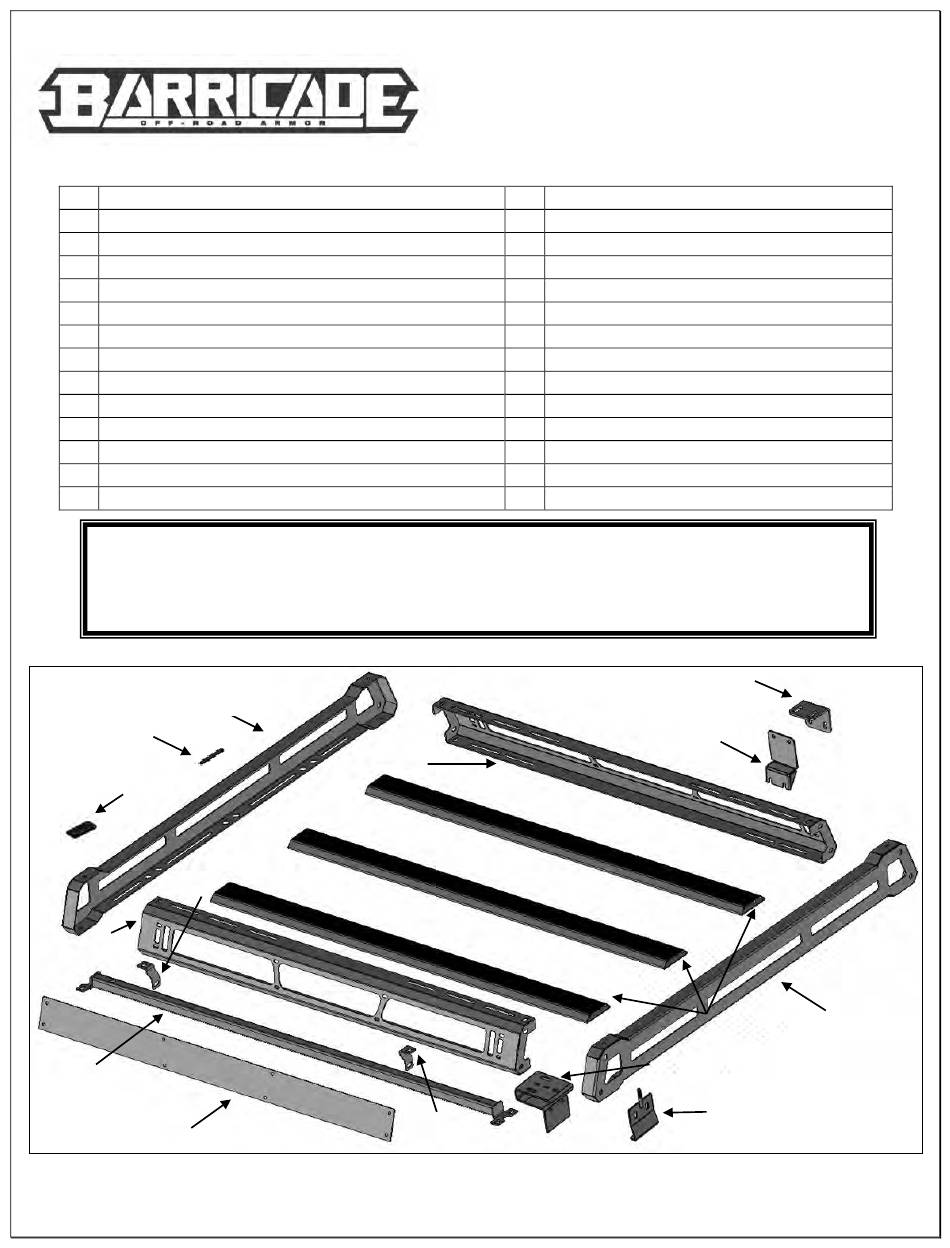

PARTS LIST:
2 Front or Rear Panels
2 Side Panels (Use for left or right side)
1 Face Plate
3 Cross Rails
1 Front Cross Bar
2 Front Mounting Brackets
2 Front Clamping Brackets
2 Foam Strips (Use with Mounting Brackets)
2 Rubber Trims (Use with Clamping Brackets)
2 Rear Roof Basket Brackets
2 Rear Window Brackets
1 Driver/Left Side LED Light Bracket
1 Passenger/Right Side LED Light Bracket
2 8-1.25mm x 50mm Hex Bolts
CAUTION: Recommended load rate is 150 lbs. for Basket only, too much weight will greatly
reduce the stability of the vehicle and increase the vehicle's tendency to overturn or damage roof.
The manufacturer makes no representation or warranty as to the amount of weight that the
vehicle can safely carry. For guidance, we recommend that you consult the vehicle manufacturer.
Secure all payloads properly for safe transportation.
Side Panel
(2) Rubber
Trims
(2) Foam Strips
Passenger side
Light Bracket
Front/Rear
Panel
Front
Cross Bar
Face Plate
Removable Hard Top Roof Basket
(For OEM HardTop) (2018 Wrangler JK 4 Door)
12 8-1.25mm x 25mm Hex Bolts
30 8-1.25mm x 25mm Button Head Bolts
4 8-1.25mm x 25mm Combo Bolts
2 8-1.25mm x 16mm Button Head Bolts
74 8mm x 24mm x 2mm Flat Washers
2 8mm x 16mm x 1.5mm Flat Washers
30 8mm Lock Washers
16 8-1.25mm Hex Nuts
16 8mm Nylon Lock Nuts
8 6-1.00 x 20mm Button Head Combo Bolts
8 6mm x 18mm x 1.6mm Flat Washers
8 6-1.00mm Hex Nuts
1 5mm Allen Wrench (8mm)
1 4mm Allen Wrench (6mm)
Front/Rear
Panel
Driver Side
Light Bracket
Page 1 of 6
(2) Rear Roof
Basket Brackets
(2) Rear Window
Brackets
(3) Cross
Rails
(2) Front Clamping
Brackets
(2) Front Mounting
Brackets
J123325-JL
Side Panel
03/12/18
