INSTRUCTION
owner - manual

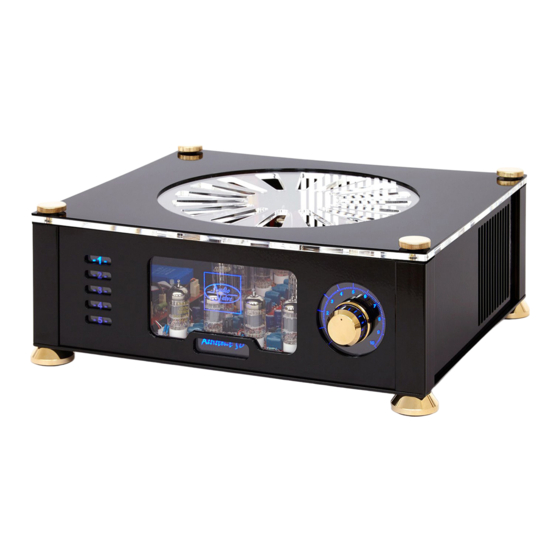

Assistent 50
Intergrated Stereo class -a tetrode tube amplifier
This handcrafted product was special made for your high demands,
to display the music on its finest way.
We guarantee, that this amplifier was carefully produced
and tested in all details.
_________________________________________________________
Congratulations on your decision to become the proud owner of the
AUDIO VALVE Assistent 50 amplifier.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Audio Valve Assistent 50
Summary of Contents for Audio Valve Assistent 50
- Page 1 This handcrafted product was special made for your high demands, to display the music on its finest way. We guarantee, that this amplifier was carefully produced and tested in all details. _________________________________________________________ Congratulations on your decision to become the proud owner of the AUDIO VALVE Assistent 50 amplifier.
- Page 2 This hand build instrument should give a lifetime of pleasure and with a little care and a full understanding of the operation recommendation in this manual the Assistent 50 should provide trouble free performance. Please take time to read this manual thoroughly before using your amplifier.
- Page 3 Use the Stand - By mode for warm hold periodes ( tube heating ) the amp without listening. Do not leave your house when the amp works use on equipment, or during sleeping time. Please only do use your amplifier while listening to music. Note: the Assistent 50 amplifier do not cause this problem.
- Page 4 In Stand By mode all input sources are dark. The middle of the front is showing the Audio Valve Logo, and is displaying in a blue light a.s.a. the Assistent 50 is switched on with the remote control - the...
- Page 5 The heavy duty rocker switch is on the rear side under the main plug and switches the mains power of the amplifier ON / OFF. When switching on the Assistent 50 the front logo in the middle of the plexiglass illuminates in red light.
- Page 6 When using plugs such as Banana, be sure to use good quality one`s with a firm fit. Please remember that the AUDIOVALVE Assistent 50 amplifier is a high quality electronic instrument capable of an exeptional level of performence.
- Page 7 VAC the type 1,5 amp-sb and for 115 AVC the type 3,15 amp-sb. PLACEMENT AND VENTILATION This AudioValve ASSISTENT 50 amplifier is designed to operate at a moderately high temperature. The ideal location is on the rigid stand or floor mounted away from direct contact with any objects, materials or deep pile carpets which may be effected by the heat or which may interrupt the flow of air around the amplifier.
- Page 8 Assistent 50 integrated tube amplifier_____________________ "Start your engine ... " Connect the amp to the main source. The display in the front is dark. Then you switch the main switch on the back panel, the display will turn red. Then you press the on/off button on the remote for a short moment, just one time, don`t hold it long, the red display will go off and beginn slightly to shinning blue.
- Page 9 Assistent 50 integrated tube amplifier_____________________ SPECIFICATIONS: Type: Integrated stereo class - A tube amplifier Power consumption: 220 VA in "progress - mode", 8 watt in "remote-mode", 80 watt in "stand-by" mode Power: 2 x 50 watt / 8 ohm Inputs: 1 - 5; outputs: 1 rec - out...
- Page 10 Assistent 50 integrated tube amplifier_____________________ W A R R A N T Y AUDIOVALVE warrants its components for a two - year period on all electronics and a 90-day period on the tubes from the purchase date. In the event of a failure of your amplifier , AUDIOVALVE will repair or readjust this unit or , should the occasion arise , will replace it provided that all conditions stipulated in this warranty are met.
- Page 11 Assistent 50 integrated tube amplifier_____________________ WARRANTY REGISTRATION Please fill out and return this warranty form to the distributor within 15 days of the purchase date with this form here, or make it online on our webside. • MODEL : _______________________________________________ •...
- Page 12 Assistent 50 integrated tube amplifier_____________________...
