All the below illustrating pictures are for reference only.
M11 Pro
Complete User Manual
Foreword:
Thank you for purchasing FiiO's high resolution lossless music player M11 Pro. To
help you better utilize the M11 Pro to enjoy high-quality music, we have prepared this
complete user manual. We hope this manual could help you get to know the M11 Pro
and unleash its full potential.
1
Advertisement
Table of Contents
Related Manuals for Fiio M11 Pro
Summary of Contents for Fiio M11 Pro
- Page 1 Thank you for purchasing FiiO’s high resolution lossless music player M11 Pro. To help you better utilize the M11 Pro to enjoy high-quality music, we have prepared this complete user manual. We hope this manual could help you get to know the M11 Pro and unleash its full potential.
-
Page 2: Table Of Contents
●Main interface and drop-down display ··············································································· 8 ●Setting interface ··········································································································· 9 1、WiFi ··············································································································· 9 2. Bluetooth ········································································································· 10 Using M11 Pro as a Bluetooth transmitter: ································································ 10 Using M11 Pro as a Bluetooth receiver ···································································· 12 3、 Audio ············································································································ 13 Multifunctional Output ······················································································· 13 SPDIF Coaxial output: ·······················································································... - Page 3 ●Technical support ···································································································· 29 ●FiiO Music ··············································································································· 30 Homepage ····································································································· 30 2、Quickly locate all the songs ·················································································· 31 3、Functionalities corresponding to “all-songs” interface ················································ 32 4、Now playing interface ························································································ 33 5、Professional Equalizer ······················································································· 35...
-
Page 4: Introduction

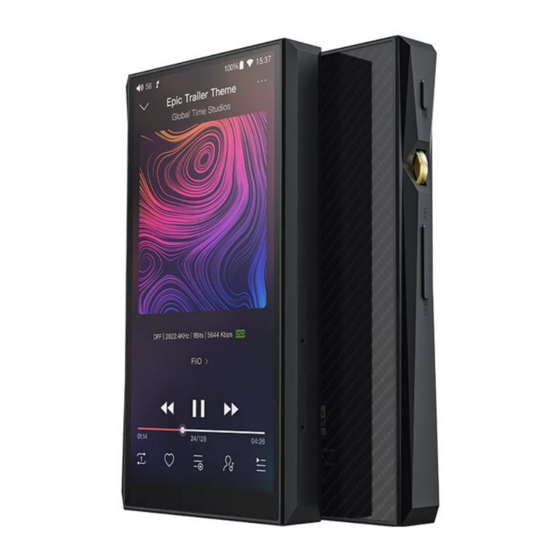

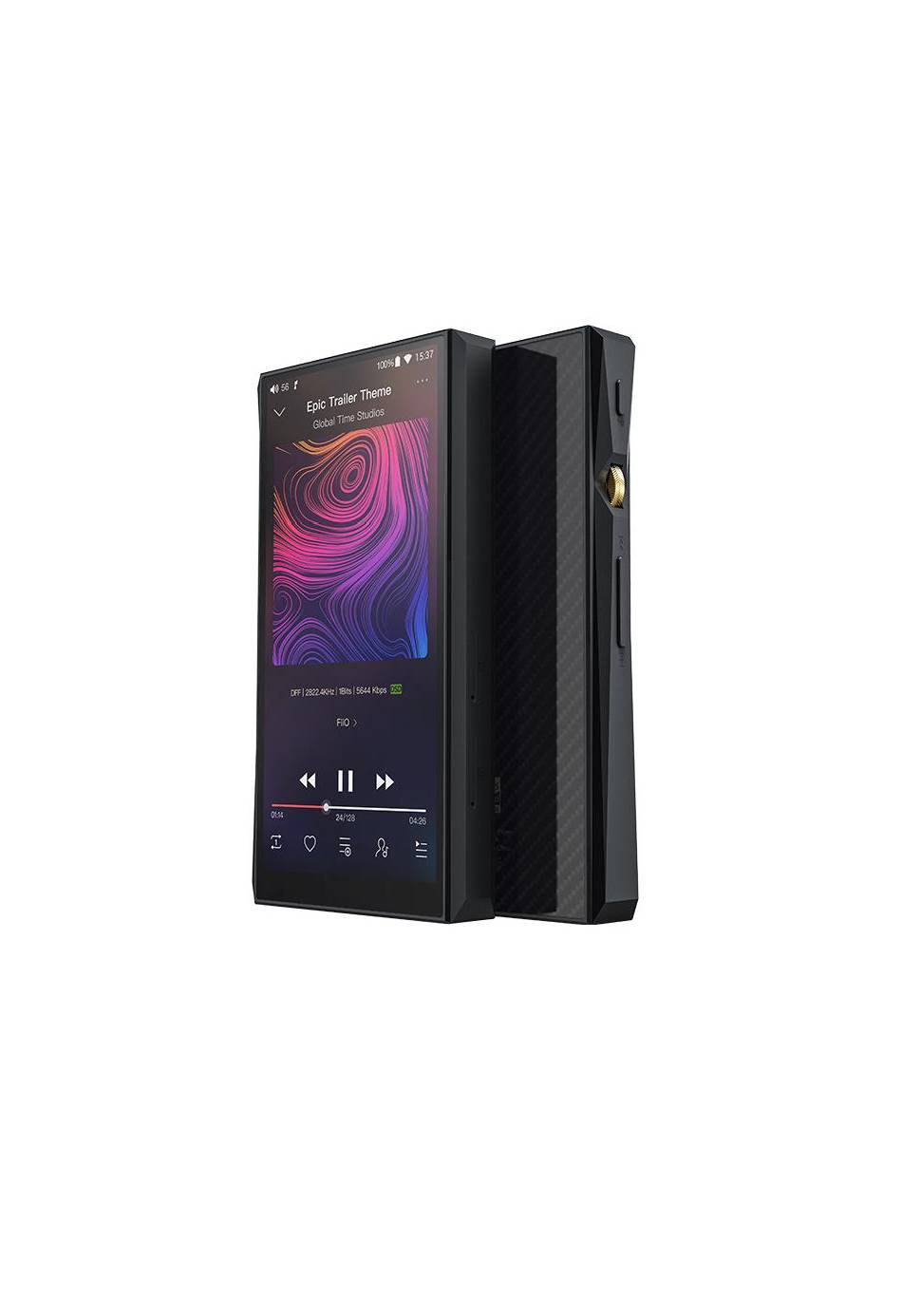

●Introduction The M11 Pro is a high fidelity, high resolution digital audio player, featuring Samsung 14nm Exynos 7872, dual AK4497EQ DACs, THX AAA-78 balanced amplifier architecture, 3GB RAM, 64GB internal storage as well as external storage via its micro SD slot (theoretically supporting up to 2TB). The digital audio player is equipped with a 5.15-inch 18: 9 HD display, running on a deep... -
Page 6: 2、Buttons And Ports Explained
2) Power / Lock: While M11 Pro is powered off, holding for 2s to turn on; while powered on, hold to display power off / reboot menu; press briefly while powered on to turn screen on / off;... - Page 7 following remote control operation (single button remotes and main button of multi-button remotes supported): Volume Up/Down: click to turn up/down the volume by one step, hold to turn up/down the volume continuously to Max volume/Mute; Play / Pause: press main button once briefly to toggle between play and pause;...
-
Page 8: Main Interface And Drop-Down Display
● Main interface and drop-down display... -
Page 9: Setting Interface
To connect the M11 Pro to WiFi devices / hotspots: 1) Tap the WLAN in setting as shown in the picture below; 2) Slide the WiFi switch to the right (ON) and the M11 Pro will automatically search for and display available WiFi connections;... -
Page 10: Bluetooth
M11 Pro must first be paired with the device as follows: 1) Tap the Bluetooth in setting as shown in the picture below; 2) If Bluetooth on the M11 Pro is off, turn it on by flicking the switch on the upper right to the “ON” position on the right;... - Page 11 Refresh to search Bluetooth Before you connect to Bluetooth, you can select the Bluetooth audio code which you want to use as follows: 1) Enter the Settings-Audio settings interface; 2) Click on the Wireless Play, select the one you want to use, then disconnect the current connection and connect with your Bluetooth device again.
-
Page 12: Using M11 Pro As A Bluetooth Receiver
Using M11 Pro as a Bluetooth receiver When M11 Pro is connected to the new Bluetooth device (such as the mobile phone) as a Bluetooth receiver, turn on the "Bluetooth decoding mode" in the Bluetooth settings interface, then the Bluetooth will turned off automatically. Turn on the... -
Page 13: 3、 Audio
Disconnect Audio 3、 Multifunctional Output Switch the output in PO/LO/SPIDIF Coaxial SPDIF Coaxial output: You can choose between DOP and D2p modes. In D2P mode, DSD will Converted... -
Page 14: Gain
to PCM output. In DOP mode, it will original output what you input (The amplifier should support DSD or there will be noise when you play DSD in DOP mode) Gain Sets the gain level of the headphone output to be either High (high volume) or Low (low volume). -
Page 15: Wireless Playback Quality
Sharp Roll-Off Filter, Short delay Slow Roll-Off Filter, Super Slow Roll-Off Filter. Wireless playback quality When the Bluetooth receiver supports multiple Bluetooth audio encodes (such as BTR3), you can select which you want to use. USB mode Storage and USB DAC mode are provided. If the system of your computer is Windows, please download USB DAC driver on our website and follow relevant... -
Page 16: Channel Balance
M11 Pro as an USB DAC. MAC computer do not need the driver. Download Link: https://www.fiio.com/Driver_Download Channel balance Set the volume balance between the left and right channels. From being biased leftmost (L10) through the centre (0) to rightmost (R10), there are 21 settings... -
Page 17: In-Line Remote
In-line remote Response to in-line remotes on connected headsets may be enabled or disabled by your choice. ALL to DSD In ALL to DSD mode, PCM will be converted to DSD64 output. Adjustable volume at LO: on/off... -
Page 18: Airplay
This allows you to set whether the volume through Line Out, it can be controlled by adjusting the volume level or not. AirPlay 1) Connect to the same WiFi 2) Click AirPlay on M11 Pro... -
Page 19: 4、General
3) Click the device AirPlay button, and then choose FiiO Music Player to connect. 4) Playing music on your device, you can listen on M11 PRO. 4、General General includes Navigation control, Power-off timers, Key-lock settings, Maximum volume settings, Fixed volume settings, Double click to wakeup. Here are... -
Page 20: Operation Method
a few common functions’ introductions. Operation method There are two operation modes: “gesture operation” and “virtual key”. Choose the right way to operate according to your habits. Gesture control introduction... -
Page 21: Power-Off Timers
Power-off timers Power-off timers includes "Idle poweroff" and "Sleep": Sleep: the device will automatically shut down when the time reaches to the setting value. This time can be set to any integer value between 0 and 120 minutes. Note that when the setting is OFF, the sleep function is off. -
Page 22: Lock Key Settings
function is off. Lock key settings You can choose whether the button will take effect when the screen is locked. Maximum volume settings Prevent the volume from suddenly increasing due to misoperation. Please set the appropriate maximum volume before listening to help protect your hearing. -
Page 23: Fixed Volume Settings
Fixed volume settings The default boot volume is 60; you can set the appropriate boot volume. Double click to wake up When “Double-click wake-up” is checked, after the display screen is locked, double-click the screen to wake up the display. -
Page 24: 5、Display
5、Display Display includes brightness, wallpaper, hibernation, screen saver, font size, display size. The following is a detailed description of several common function items. Sleep Set the time to go to sleep when there is no operation. After the machine enters sleep for ten minutes, it enters low power mode. -
Page 25: Display Size
You can choose the appropriate font display, including small, default, large, and maximum four fonts. Display size You can choose from three levels of display size, including small, default, and large. Display size is reflected both in the display icon and text. 6、Language settings 1. -
Page 26: 7、Backup & Reset
3. Select a language; 4. After selecting the language, you should press the “=” icon on the right side of the target language and drag the language to the head of the list. The switching of language can only be completed after this operation. 7、Backup &... -
Page 27: Firmware Update
OTA update requires a stable connection to Wi-Fi, and once you press the “check update” button, M11 Pro will automatically look for new versions online. If a new version is available, it will notify you of the new version, and then the update can be performed accordingly. - Page 28 3) Please wait patiently after clicking, M11 Pro will start the firmware update automatically. 4) Upon completion of firmware update, M11 Pro will restart itself automatically. It can be used normally after restarting. Note: 1) Please ensure the battery power is sufficient before updating (full power will be the best), otherwise the update may fail.
-
Page 29: Status Bar
1. Firmware update: you can choose from online update or browsing local firmware update 2. FAQ: some frequently asked questions are listed with corresponding solutions given 3. Quick start: click to read a quick guide book to M11 Pro... -
Page 30: Fiio Music
●FiiO Music M11 Pro embeds FiiO Music, a professional audio playback software, specifically designed for Android open-source system and specially built for flagship-level music players. Main functionalities of it are introduced with graphics below. 1. Homepage FiiO Music will enter the homepage when started, as shown below:... -
Page 31: 2、Quickly Locate All The Songs
Setting icon: press the icon to enter the setting page; Playing interface: press the icon to enter the playing interface; Recently played: a list of recently played songs is presented chronologically; Frequently played: a list of songs is presented according to frequency of playing; Recently added: a list of recently added songs is presented chronologically;... -
Page 32: 3、Functionalities Corresponding To "All-Songs" Interface
Slide on the letter bar at the right side of the screen, and the corresponding initial letter will appear at the screen center. Release your finger at the corresponding initial letter, and the list will jump to the songs corresponding to that initial letter. 3、Functionalities corresponding to “all-songs”... -
Page 33: 4、Now Playing Interface
alphabetically. 2. Bulk management: batch play, song transfer through Wi-Fi, adds to My Favorites as a group, add to Playlist as a group, delete as a group, and exit batch management. 4、Now playing interface... - Page 34 Return Switching area Play mode Current playlist Add to Favorites Check current artist info Add to Playlists Switching area: clicking on the center area of album cover enables you to switch between album cover and lyrics; sliding to the left or right enables you to switch between songs.
-
Page 35: 5、Professional Equalizer
5、Professional Equalizer FiiO Music incorporates a graphic equalizer. One may choose between the given genre presets directly, or adjust the ten frequency bands from 20 to 20000Hz independently from -12 to +12 dB, thus satisfying your personalized listening needs and adapting to your listening equipment. - Page 36 3) Reset EQ: Tap the reset button at the upper right corner to reset the present EQ preset to its genre default. Note: if a factory reset is performed on the M11 Pro, all EQ settings will be reset to defaults.
