Ziton ZP755V Installation Sheet

ZP755V Addressable Visual Indicator
Installation Sheet
Description

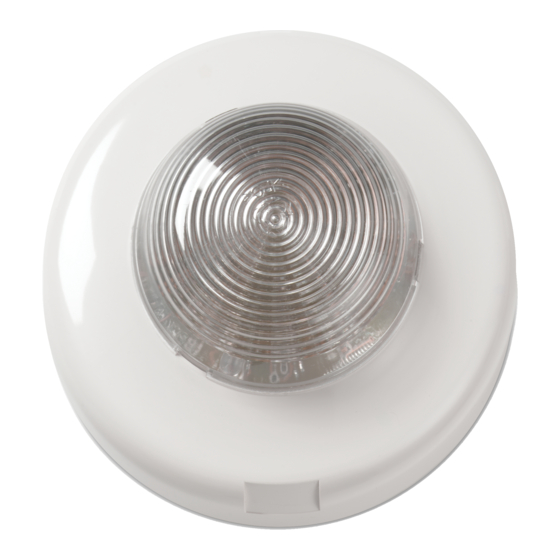

The ZP755V is an addressable visual indicator designed for
use in Ziton analogue addressable fire detection and alarm
systems. The visual indicator provides visual warnings from a
single, addressable, loop-wired unit.
Note: The visual indicator of this product does not comply with
EN 54-23 and must not be used in fire alarm installations
where fire notification beacons are required.
The visual indicator includes an address-setting switch and a
pair of jumpers to select the operating power — from the
analogue addressable loop or an external supply. See Table 1
for a list of models.
Table 1: Models
Model Description
Visual indicator
ZP755V-W Visual indicator, White
ZP755V-P Visual indicator, Polar white
Base
ZP7-SSB-W Base, White
ZP7-SSB-P Base, Polar white
Installation
To install the visual indicator;
1. Wire the base
2. Set the operating power
3. Set the address
4. Set the device mode
5. Mount the visual indicator onto the base
The details of each step are given below.
© 2014 UTC Fire & Security. All rights reserved.
Wiring the base
Connect loop wiring for the base as shown in Figure 1. There
is no wiring between the visual indicator and base. The base is
supplied separately.
Figure 1: Loop wiring for the plug-in base
3498 01
8
7
1. Ext. 24 VDC+ IN/OUT
4. Ext. 24 VDC ground IN/OUT
5. Loop+ IN/OUT
Setting the operating power
The visual indicator includes a pair of power selection jumpers,
J1 and J2. To select the source of the sounder operating
power, position the jumpers as shown in Figure 2.
Figure 2: Power selection jumper configuration
1. Loop powered
Note: When using an external power supply, use only one that
is CE and EN 54-4 compliant to power all the visual indicators
on the same loop.
1 / 4
7. Shield
Loop− IN/OUT
8.
0V
LINE EXT LINE
POWERED POWERED POWERED
24V
2. External 24 VDC
P/N 501-1782ZE-1-07 • REV 07 • ISS 23JAN14
1
4
5
0V
EXT
POWERED
EXT
POWERED
24V
