Panasonic EY7441 Operating Instructions Manual

Cordless drill & driver/cordless hammer drill & driver

Hide thumbs Also See for EY7441:

Operating instructions manual (176 pages)

Service manual (20 pages)

Owner's manual (51 pages)

page of 15

/ 15
Bookmarks

Quick Links

Download this manual

IM-B098-01

IM-B105-01

Operating Instructions

Bedienungsanleitung

Instructions d'utilisation

Istruzioni per l'uso

Gebruiksaanwijzing

Manual de instrucciones

Cordless Drill & Driver/Cordless Hammer Drill & Driver

Akku-Bohrschrauber/Akku-Schlagbohrschrauber

Brugsvejledning

Driftsföreskrifter

Snoerloze schroef-boormachine/Snoerloze slagschroef-boormachine

Bruksanvisning

Käyttöohjeet

Sladdlös skruvdragare & borrmaskin/slagborrmaskin

Model No: EY7441/EY7940

Need help?

Do you have a question about the EY7441 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic EY7441

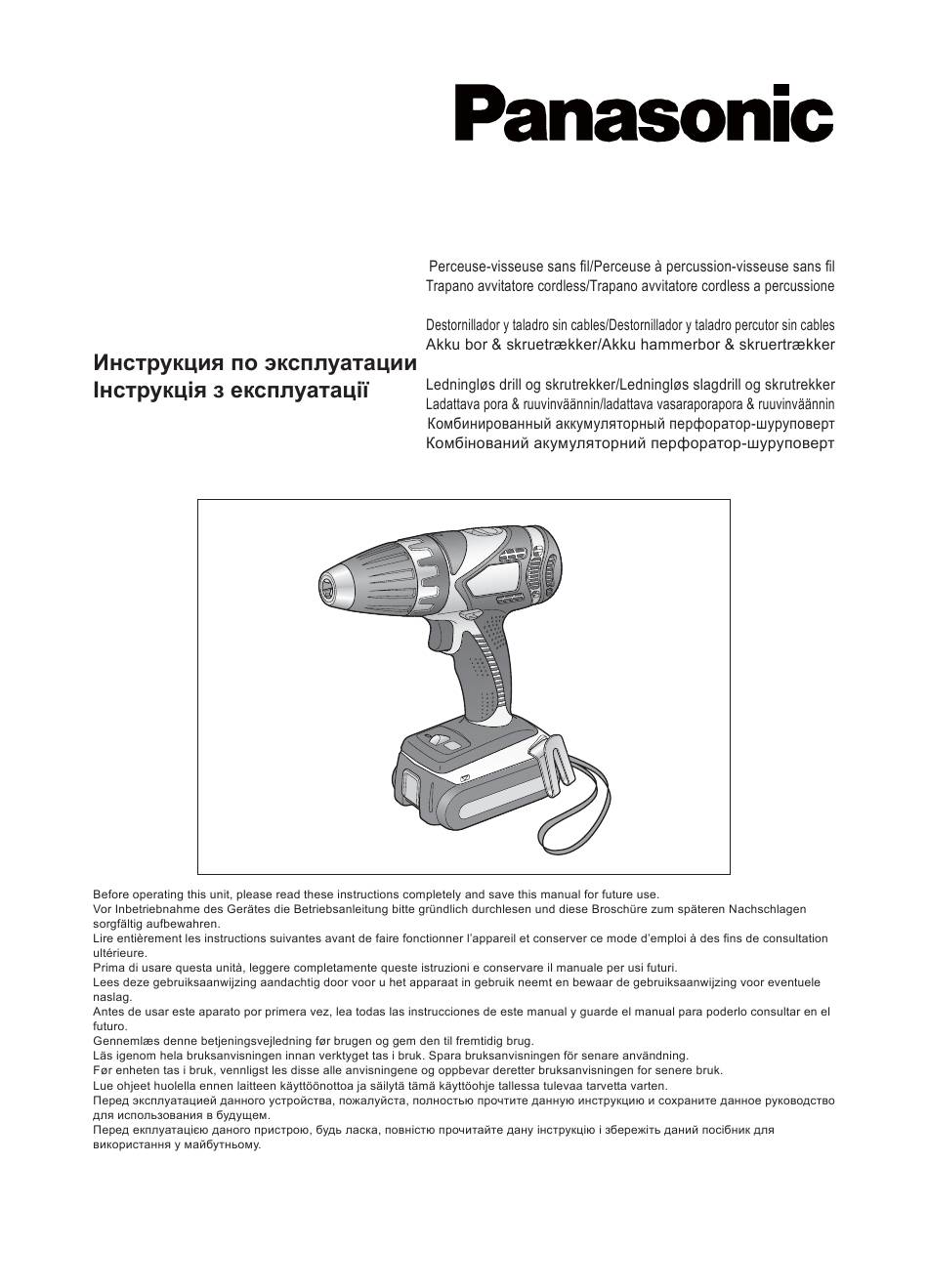

Page 1 IM-B098-01 IM-B105-01 Operating Instructions Bedienungsanleitung Instructions d’utilisation Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Cordless Drill & Driver/Cordless Hammer Drill & Driver Akku-Bohrschrauber/Akku-Schlagbohrschrauber Brugsvejledning Driftsföreskrifter Snoerloze schroef-boormachine/Snoerloze slagschroef-boormachine Bruksanvisning Käyttöohjeet Sladdlös skruvdragare & borrmaskin/slagborrmaskin Model No: EY7441/EY7940...
Page 2 Index/Index/Index/Indice/Index/Indice/Indeks/Index/Indeks/Hakemisto/ English: Page Svenska: Français: Page FUNCTIONAL DESCRIPTION FUNKTIONSBESCHREIBUNG DESCRIPTION DES FONCTIONS DESCRIZIONE DELLE FUNZIONI FUNCTIEBESCHRIJVING DESCRIPCIÓN FUNCIONAL FUNKTIONSBESKRIVELSE FUNKTIONSBESKRIVNING FUNKSJONSBESKRIVELSE TOIMINTAKUVAUS - 2 -...
Page 3 Mandril sin llave Mango de embrague Snelheidskeuzeschakelaar Palanca de avance/inversión Riemenhaken Marcas de alineación Bedienfeld Panneau de commande...
Page 4 Luce LED Luz indicadora LED-valo Pack cover Akkuabdeckung Accudeksel Pakkedeksel - 4 -...
Page 5 Original instructions: English Translation of the original instructions: Other languages contact This tool, as a complete unit with a battery with a “live” wire will make exposed pack, satisfies appropriate IP Degrees of metal parts of the tool “live” and shock Protection based on the IEC regulations.
Page 6 Do not use other than the Panasonic Volts bat-tery packs that are designed for Direct current use with this rechargeable tool. n ° No load speed Panasonic is not responsible for any dam-age or accident caused by the use Revolutions or reciprocations ...Min...
Page 7 1. To connect the battery pack: Line up the alignment marks and attach the battery pack. disconnect battery pack from tool or Slide the battery pack until it locks place the switch in the center position into position. This tool is equipped with a keyless drill chuck.
Page 8 Adjust the torque to one of the 18 clutch settings or “ Adjust the torque to one of the 18 clutch settings or “ ”, “ Always make sure to stop operation Forward Reverse of the tool and disengage it from the work, when you select Hammering mode from Drilling mode or when you shift to Drilling mode from...
Page 9 securelyto the main unit with the screw hook may disconnect and the main unit may fall. This may result in an accident or injury. Periodically check screw for tightness. and securely onto a waist belt or other belt. Pay attention that the unit does not slip off the belt.
Page 10 If the motor or battery becomes hot, the protection function will be activated and the motor or battery will stop operating. The overheat warning lamp on the this feature is active. If the overheating protection feature a c t i v a t e s , a l l o w t h e t o o l t o c o o l l i g h t , a l w a y s p u l l t h e tool is ready for use when the overheat power switch once.
Page 11 For environmental protection and recycling of materials, be sure that it is disposed of at an officially assigned location, if there is one in your country. For optimum battery life, store the Li- ion battery pack following use without charging it. Charging that the terminals on the battery charger are free of foreign substances such as...
Page 12 The orange standby lamp will be EY9L42 battery pack can only be charged flashing until the battery cools down. with the EY0L81 battery charge. Charging will then begin automatically. 1. Plug the charger into the AC outlet. 2. Insert the battery pack firmly into the slowly once the battery is approximately charger.
Page 13 These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
Page 14 In the event that the inside of the tool or battery pack is exposed to water, drain and allow to dry as soon as possible. problems operating the tool, consult with a repair shop. Use only bits suitable for size of drill's chuck. Model EY7441 EY7940 Machine screw Screw driving...
Page 15 Model EY9L41 EY9L42 Storage battery Usable: 45 min Usable: 30 min Charging time Full: 35 min This chart may include models that are not available in your area. Please refer to the latest general catalogue. For the dealer name and address, please see the included warranty card. Model EY0L81 Rating...
