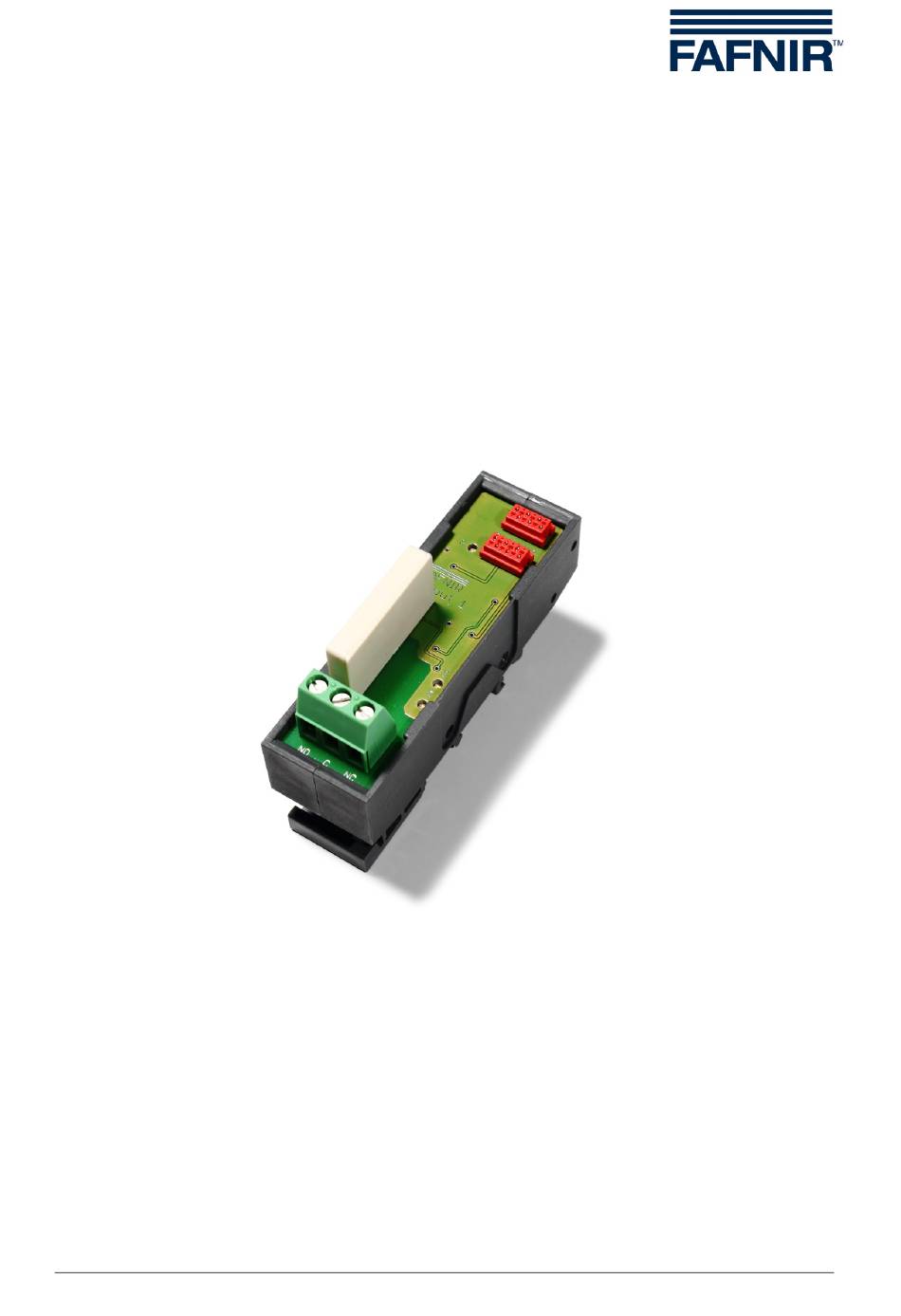

fafnir VISY-Output 1 Technical Documentation Manual

1-channel relay output module

Advertisement

Quick Links

Technical documentation
VISY-Output 1
1-Channel Relay Output Module
Version:
2
Edition:
2016-09
Art. No.:
350219
FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg • Germany • Tel.: +49 / 40 / 39 82 07–0 • Fax: +49 / 40 / 390 63 39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISY-Output 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for fafnir VISY-Output 1

  • Page 1 VISY-Output 1 1-Channel Relay Output Module Version: Edition: 2016-09 Art. No.: 350219 FAFNIR GmbH • Schnackenburgallee 149 c • 22525 Hamburg • Germany • Tel.: +49 / 40 / 39 82 07–0 • Fax: +49 / 40 / 390 63 39...
  • Page 2 © Copyright: Reproduction and translation are permitted only with the written consent of FAFNIR GmbH. FAFNIR GmbH reserves the right to make changes to products without prior notice. Table of contents...
  • Page 3: Table Of Contents

    Table of contents Overview ....................1 Installation ....................1 Safety instructions ..........................1 Requirements ............................2 Installation ............................2 2.3.1 Design and construction ......................... 2 2.3.2 Device information ..........................3 2.3.3 Connections ............................3 2.3.4 LEDs ................................. 3 2.3.5 Connection of the relay contacts ....................3 2.3.6 Connection to the VISY-Command .....................
  • Page 4: Overview

    VISY-Output 1 can be extended with the VISY-Output 8 and the VISY-Input 8 modules. VISY-Output 1 is located on a module carrier for installation on DIN mounting rails and is intended for installation in the VISY-Command, from which the wiring is done.
  • Page 5: Requirements

    Requirements For installing the VISY-Output 1 in the VISY-Command, an interface card of version VI-4 or higher must be present. Installation VISY-Output 1 is designed for installation in the VISY-Command. For installation, the VISY- Output 1 is plugged onto the DIN mounting rail inside the VISY-Command. Hold the module carrier of VISY-Output 1’at an angle to the mounting rail and plug the snap-on...
  • Page 6: Device Information

    Figure 2: Relay screw terminal 2.3.6 Connection to the VISY-Command Connect the VISY-Output 1 to the VI-… interface card using the 6-pin ribbon cable sup- plied (see Figure 1: Structure of VISY-Output 1). The power supply and communication are established through this ribbon cable.
  • Page 7: Configuration

    Configuration As is typical for the VISY-X system, the VISY-Output 1 is configured using the VISY-Setup configuration software. With VISY-Setup the data protocol for communication with VISY-Stick must be set to “Multi Probe protocol” . Due to the shorter communication times, it is preferable to use “Multi Probe 4800 bps”.
  • Page 8: Behaviour Of The Output After The Hold Time Has Expired

    (passive) when the output is activated. The fail safe mode offers the advantage that even if the auxiliary energy of VISY-Output 1 fails, an alarm signal can be sent via the relay that is then going passive. The following table shows the status of the relay based on the configured relay mode and the status of the output.
  • Page 9: Maintenance Mode

    2.4.5 Maintenance mode The maintenance mode is used to deactivate the output of VISY-Output 1 temporarily. For example, this function can be used during configuration to prevent an alarm from trigger- ing through the relay contact due to a still incomplete configuration. The maintenance mode is turned on and off using the VISY-Setup configuration software, if this function is supported.
  • Page 10: Fault Diagnosis

    Fault diagnosis VISY-Output 1 has several LEDs to make diagnosis easier when there are problems. The position of the LEDs can be seen in Figure 1. Relay LED (3) The red LED for the relay shows whether the relay is energised or deenergised (active or passive).
  • Page 11: Overhaul

    Maintenance The VISY-Output 1 is maintenance free. Returns Before returning FAFNIR products, approval from FAFNIR customer service is required. Please speak with your customer advisor or with customer service, who will give you all the details for return shipment. FAFNIR products can only be returned after approval from FAFNIR customer service.
  • Page 13 Blank page...
  • Page 14 Blank page...
  • Page 15 Blank page...
  • Page 16 FAFNIR GmbH Schnackenburgallee 149 c 22525 Hamburg Germany Tel.: +49 / 40 / 39 82 07–0 Fax: +49 / 40 / 390 63 39 E-mail: info@fafnir.de Web: www.fafnir.de...
