Sony ECM-Z60 Service Manual

SERVICE MANUAL
Ver 1.0 2000.2
SPECIFICATIONS
Type Electret condenser microphone
Dimensions Microphone parts:
16 × 106 × 22 mm ( × 4 ×
21 / 1 / 7 / in.)(diameter/
32 4 8
length/height)
(Maximum width of stand: 26 mm (1 1 / in.))
16
Battery box parts:
40 × 16.5 × 46 mm (w/h/d)
× 2 × 1
5 1 13
(1 / / / in.)
8 32 16
Mass Microphone parts (including cord):
Approx. 21 g (0.75 oz.)
Battery box parts (including lithium battery and
cord):
Approx. 17 g (0.6 oz.)
Cord Microphone parts:
OFC litz cord (1 cord shielded)
1
1.5 mm ( / in.) dia.
16
Length: approx. 1 m (39 3 / in.)
8
Battery box parts:
OFC litz cord (2 core shielded)
2.2 mm ( 3 / in.) dia.
32
7
Length: approx. 0.3 m (11 / in.)
8
Supplied accessories
Battery box (1)
ECM-Z60
US Model
Canadian Model
AEP Model
Frequency response
100 -10,000 Hz
Directivity Super-directional
Output impedance
2.8 kΩ ± 30 %
Sensitivity Open circuit output voltage
level –36 ± 3.5 dB
0 dB = 1 V / Pa, 1,000 Hz
(1 Pa = 10 µ bar = 94 dB
)
SPL
Battery life Approx. 300 hours (with Sony CR2025 lithium
battery (not supplied)
Maximum sound pressure input level
Approx. 102 dB
SPL
1 % wave distortion at 1,000 Hz
= 2 × 10
-5
(0 dB Pa)
SPL
Operating temprerature range
0 °C –40 °C (32 °F –104 °F)
Design and specifications are subject to change without notice.
ELECTRET CONDENSER MICROPHONE
E Model
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
SECTION 1
This section is extracted from
instruction manual.
GENERAL

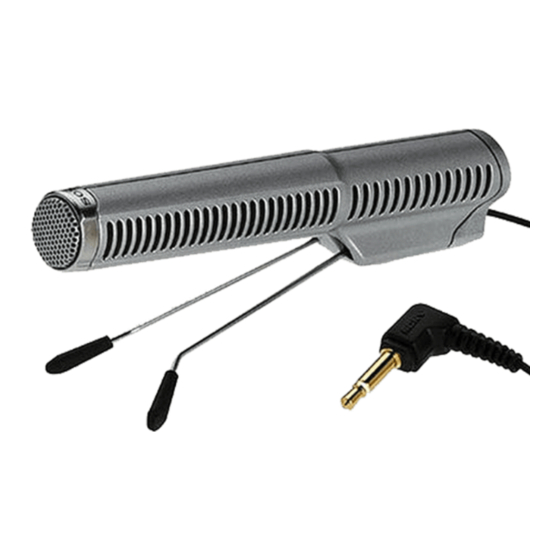

1 POWER switch
2 Battery check indicator
3 L-shaped monaural miniplug (gold plated)
4 Battery box
5 Microphone jack
6 L-shaped monaural miniplug (gold plated)
7 Battery compartment
8 Microphone
9 Attached microphone stand
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer.
Discard used batteries according to the manufacturer's instructions.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri.
Benytt samme batteritype eller en tilsvarende type
anbefalt av apparatfabrikanten.
Brukte batterier kasseres i henhold til fabrikantens
instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en likvärdig typ som
rekommenderas av apparattillverkaren.
Kassera använt batteri enligt gällande föreskrifter.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
