Altronix NetWay1DWP Outdoor Single Port Midspan Injector provides Hi-PoE (60W) power and passes data
for PoE compliant cameras/edge devices . Cameras/edge devices may be located up to 100m from the unit .
Agency Listings:
• UL 60950-1
UL 60950-22
• CE
Input:
• 115VAC, 60Hz, 1 .2A or
230VAC, 50/60Hz, 0 .75A .
Power Output:
• Maximum power: Hi-PoE (60W) . Power product
using all 4 pairs for 60W .
• IEEE 802 .3at (30W) and
IEEE 802 .3af (15W) compliant .
• Integral surge protection .
Ethernet:
• Connectivity: RJ45, auto-crossover .
• Wire type: 4-pair Cat-5 or better structured cable .
• Distance: up to 100m .
• Speed: 10/100/1000Mbps, half/full duplex,
auto negotiation .
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes
and authorities having jurisdiction . Wiring should be UL Listed and/or Recognized wire suitable for the application .
1 . Remove circuit board from enclosure prior to drilling NetWay1DWP (do not discard hardware) .
Note: Take care to assure that hardware will not interfere with components of the circuit board .
2 . NetWay1DWP: Mark and drill desired inlets on the enclosure to facilitate wiring (Fig. 2, pg. 4).
Maximum UL Listed NEMA type 4X rated fittings to be used is 1/2", follow manufacturer's specifications
for the appropriate size opening .
Note: Inlets for conduit fittings should only be made on the bottom of the enclosure .
UL Listed NEMA type 4X rated conduit connector/hubs shall be used for the appropriate size inlets .
NetWay1DWPH is pre-drilled with three (3) pre-drilled inlet holes for wiring .
3 . Clean out the inside of enclosure before remounting circuit board .
4 . Switch circuit breaker to the OFF position .
5 . Connect AC power from a UL approved circuit breaker to the terminals marked [L] and [N],
connect ground to the terminal marked [G] (refer to Fig. 1 on right) .
6 . Mounting NEMA 4X rated enclosure:
Wall mount: Mount unit in desired location . Mark and drill holes to line
up with the top and bottom holes of the enclosure flange . Secure enclosure
with appropriate fasteners (e . g . screws and anchors; bolts and locking
nuts, etc .) which are compatible with mounting surface and are of
sufficient length/construction to ensure a secure mount (Fig. 4, pg. 7) .
Pole Mount: refer to page 7 .
Note: All inlets for conduit fittings should be on the bottom of the enclosure .
7 . Mount circuit board in enclosure with hardware .
8 . To facilitate wire entry utilize weather-tight NEMA rated connectors
(supplied), bushings and cable .
9 . Connect structured cable from UL Listed ethernet switch or video server to
RJ45 jack marked [IN] on NetWay1DWP/NetWay1DWPH (Fig. 3, pg. 5) .
10 . Connect structured cable from camera/device to RJ45 jack marked [OUT] on NetWay1DWP/
NetWay1DWPH/ (Fig. 3, pg. 5) .
11 . Switch circuit breaker to the ON position .
NetWay1DWP
Information Technology
Equipment .
Information Technology
Equipment to be installed
Outdoors .
European Conformity .

Installation Instructions:

Overview:

Features:

LEDs:
• LED1: PoE active .
LED2: AC Power present .
Environmental:
• Operating Temperature:
30W:
60W:
• Storage Temperature:
• Humidity:
Applications:
• Provides PoE/PoE+ and Hi-PoE for
cameras/devices .
Mechanical:
• NEMA 4X, IP66 Rated enclosure for outdoor use .
• Dimensions (H x W x D approx .):
9 .5" x 7 .32" x 4 .92" (241 .3mm x 185 .9mm x 125mm) .
Models:
• NetWay1DWP: Outdoor Single Port Hi-PoE
Injector .
• NetWay1DWPH: Outdoor Single Port Hi-PoE
Injector, enclosure with three (3) 5/8" wiring
inlets, includes NEMA rated glands .
-30ºC to 70ºC (-22ºF to 158ºF) .
-30ºC to 55ºC (-22ºF to 131ºF) .
-30ºC to 85ºC (-22ºF to 185ºF) .
20 to 85%, non-condensing .

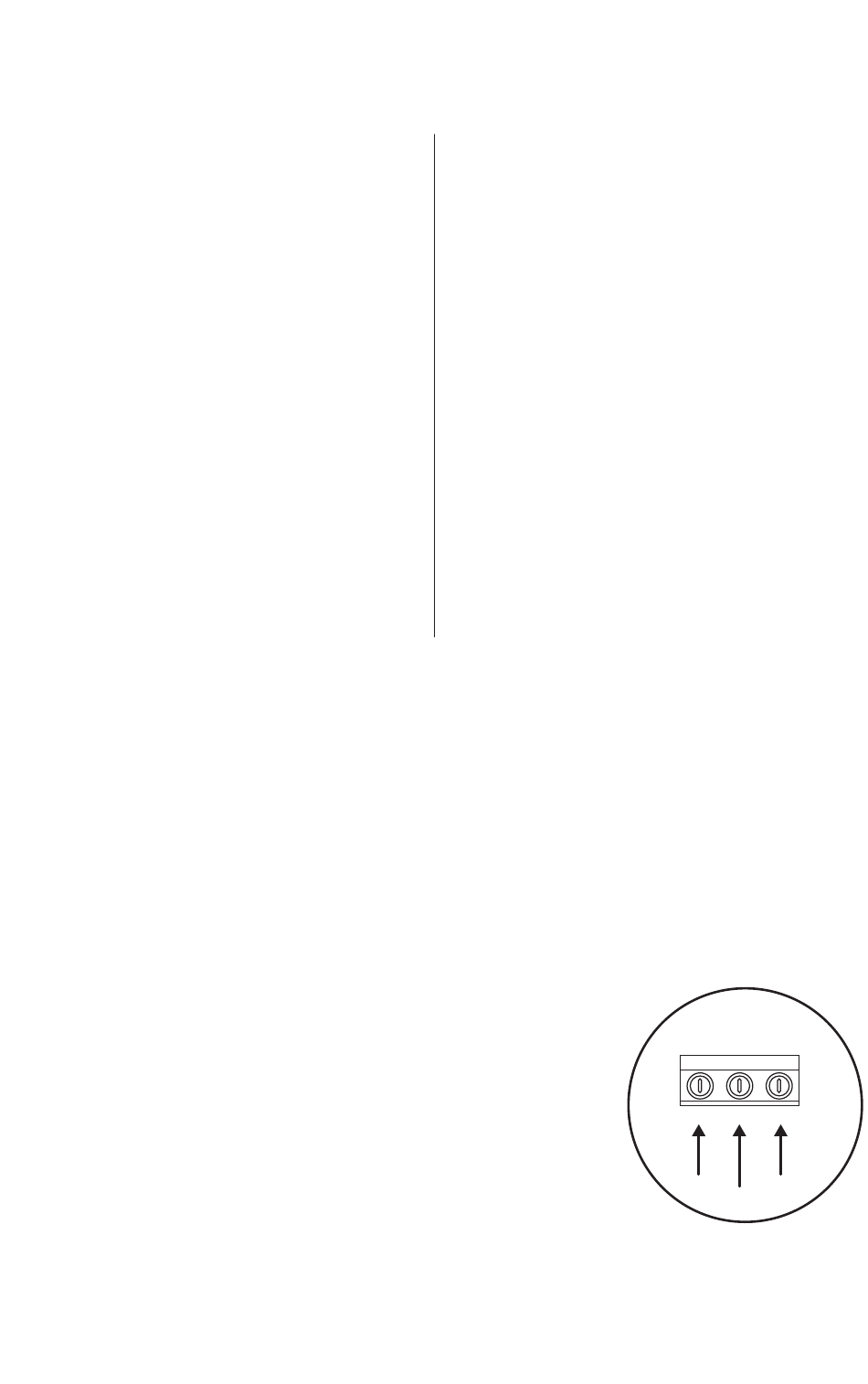

Fig. 1
115VAC/230VAC
Input
L G N
Line Neutral
Ground
