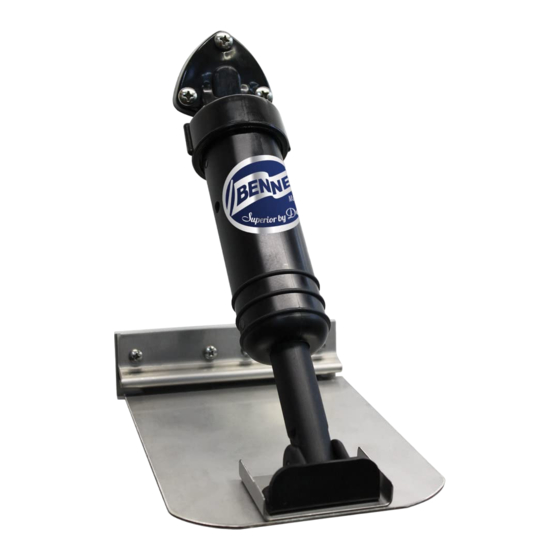

- Page 1 Self-Leveling Tabs SLT6 & SLT10 KITS SLT6 SLT10 OWNER’S MANUAL AND INSTALLATION INSTRUCTIONS SAVE AND KEEP WITH BOAT OWNER’S INFORMATION...
- Page 2 • Improve fuel efficiency • Eliminate porpoising and chine walking You selected your kit using this guideline: Part # Tab Size Boat Size SLT6 6" x 8" Up to 16’ (15 cm x 20 cm) (up to 4.9m) SLT10 10" x 10"...
- Page 3 Complete SLT Parts List and Diagram SLT6 SLT10 Trim Tab Only TPOSLT6 - Qty 2 TPOSLT10 - Qty 2 Hinge Plate HPSLT6 - Qty 2 HPSLT10 - Qty 2 Backing Plate BPSLT6 - Qty 2 BPSLT10 - Qty 2 Complete Actuator...
- Page 4 SLT Installation Instructions Standard RIB Installation Standard “V”Hull Installation 3"- 4" Chine Tools & Supplies Needed: • Hand drill with 5/32" • Phillips screwdriver • Marking pencil and 3/16" drill bits • Marine grade sealant • Glove • Tape measure •...
- Page 5 SLT Installation Instructions cont. 2. 2. 3"- 4" Hole pattern 5/8" closer to top Chine Position the Tab. Using the backing plate, choose a location 3-4" from the chine. Maintain a minimum of 8" from the centerline of your drive unit to the closest edge of the trim tab.
- Page 6 SLT Installation Instructions cont. 8. 8. 7. 7. Mark Actuator Position on Transom. Set Final Actuator Position. Use a Set the actuator upper hinge against straight edge under the trim tab to the transom. Mark the three upper make sure the tab is flush with the hull hinge hole centers.
-
Page 7: Maintenance
Adjusting Your SLT System IMPORTANT: Conduct a sea trial before making any adjustments. Three Mounting Options to Change Lift: The SLT has three hole positions on the trim tab so that the actuator angle may be adjusted for optimum lift pressure and performance. The supplied mounting bracket installed under the actuator lower hinge covers the holes that are not used. - Page 8 Simply call 954.427.1400 or send an email to BMI_Info@Yamaha-Motor.com. We will be glad to assist you. U.S. Customers: Simply return the faulty part to Bennett Marine along with our Quick and Easy Product Return Form found on the Warranty page of our website: www.BennettTrimTabs.com/warranty.
