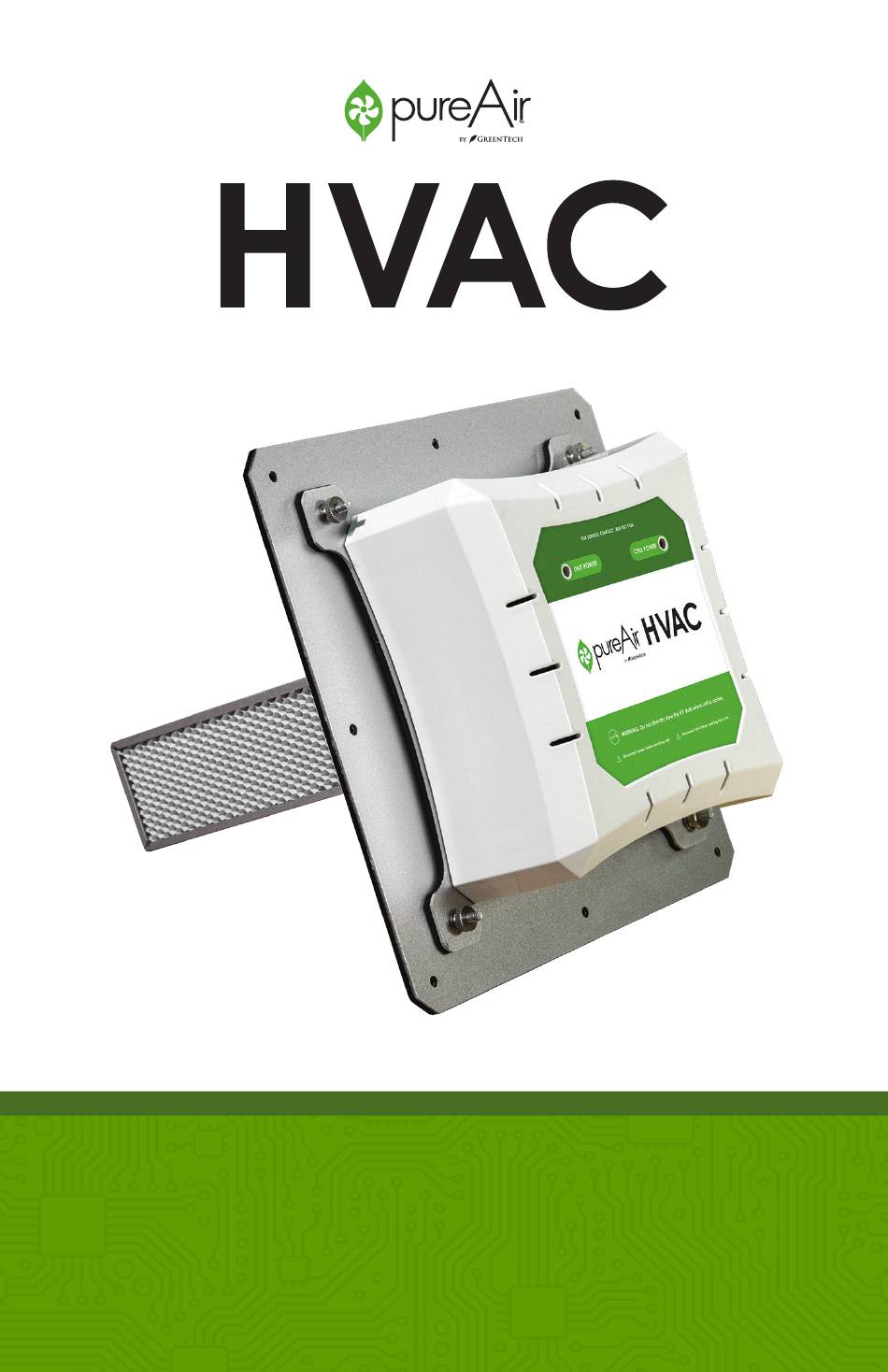

  • Page 1 Owner’s Manual...

  • Page 2: Table Of Contents

    Welcome Thank you for your purchase of the pureAir HVAC Air Purification Enhancement System. This unit is designed to be installed into an existing HVAC system, and used as a virtually maintenance-free enhancement to current air purification technology. Please read and follow all service procedures outlined in this manual.

  • Page 3: About

    Designed to work with existing purification technology to reduce odors, smoke, and a broad spectrum of indoor air contaminants. pureAir HVAC is easily mounted into air conditioning and/or heating systems where contaminants can grow. When the HVAC system is in operation,...

  • Page 4: Product Contents

    (2) 18 - 22 Gauge Wire Nut (only used with hard-wiring) Replacement Parts Your HVAC unit requires no periodic maintenance beyond the normal replacement of the PCO Cell on an annual basis. The cell is working when the indicator lights are on. For optimal performance, annual maintenance is encouraged.

  • Page 5: Installation Tools

    Installation Requirements The unit should be installed after the air handler in pureAir HVAC Supply Plenum the HVAC system in the supply plenum.* *Additional pureAir HVAC units are recommended in the Return Plenum for added protection and to keep the internal parts clean.

  • Page 6: Installation

    Installation Locate a suitable area of duct for Cut away any insulation to expose the installation. the duct. Use the Mounting Plate to trace the Use the Drill with 1/8” Drill Bit to make main hole and the Eight (8) Screw Four (4) holes around the marked Hole Locations.
  • Page 7 Installation (Continued) (A) Install the Mounting Plate to the (B) For Fiberglass Ductwork, attach using Duct using the Eight (8) Self-Tapping the 2” Bolts with Toggle Bolt Anchors. Screws. Place the unit through the hole Alternatively, the PCO Cell can be and rotate is so that airflow always reoriented on the back to allow the passes through the honeycomb.
  • Page 8 DBI Cell Installation (Optional) Unplug the unit’s power cord from Remove the Knurled Thumb Nuts and the outlet. unit from the duct. Remove one (1) screw holding Place the Hook-end of the DBI Cell the cell on the rear of the Ballast Mounting Bracket over the back of Housing, beneath the Molex the PCO Cell, with the screw hole...

  • Page 9: Maintenance

    Maintenance/UV Lamp Indicator Your pureAir HVAC unit requires no periodic maintenance beyond the normal replacement of the PCO Cell every year. It is recommended, for optimum performance, that the PCO Cell be replaced annually. The UV Lamp Operation Indicator on the face of the unit will glow when the unit is in use.

  • Page 10: Changing The Cell

    Changing the Cell Unplug the unit’s power cord Remove the Thumb Nuts and unit from the outlet. from the duct. Remove the two (2) screws Replace the Cell and UV Lamp holding the cell on the rear of and fasten the new parts with the the Ballast Housing.

  • Page 11: Warranty

    PCO Cell which extends into the ductwork. Your pureAir HVAC (Product) is warranted to be free from all defects in material and workmanship in normal household use for a period of two (2) years from date of purchase.* Your PCO Cell, including the bulb, is warranted to be free from all defects in material and workmanship in normal household use for a period of one (1) years from date of purchase.
  • Page 12 OM REVISION: GTE-pureAir_HVAC-OwnersManual-191118...
