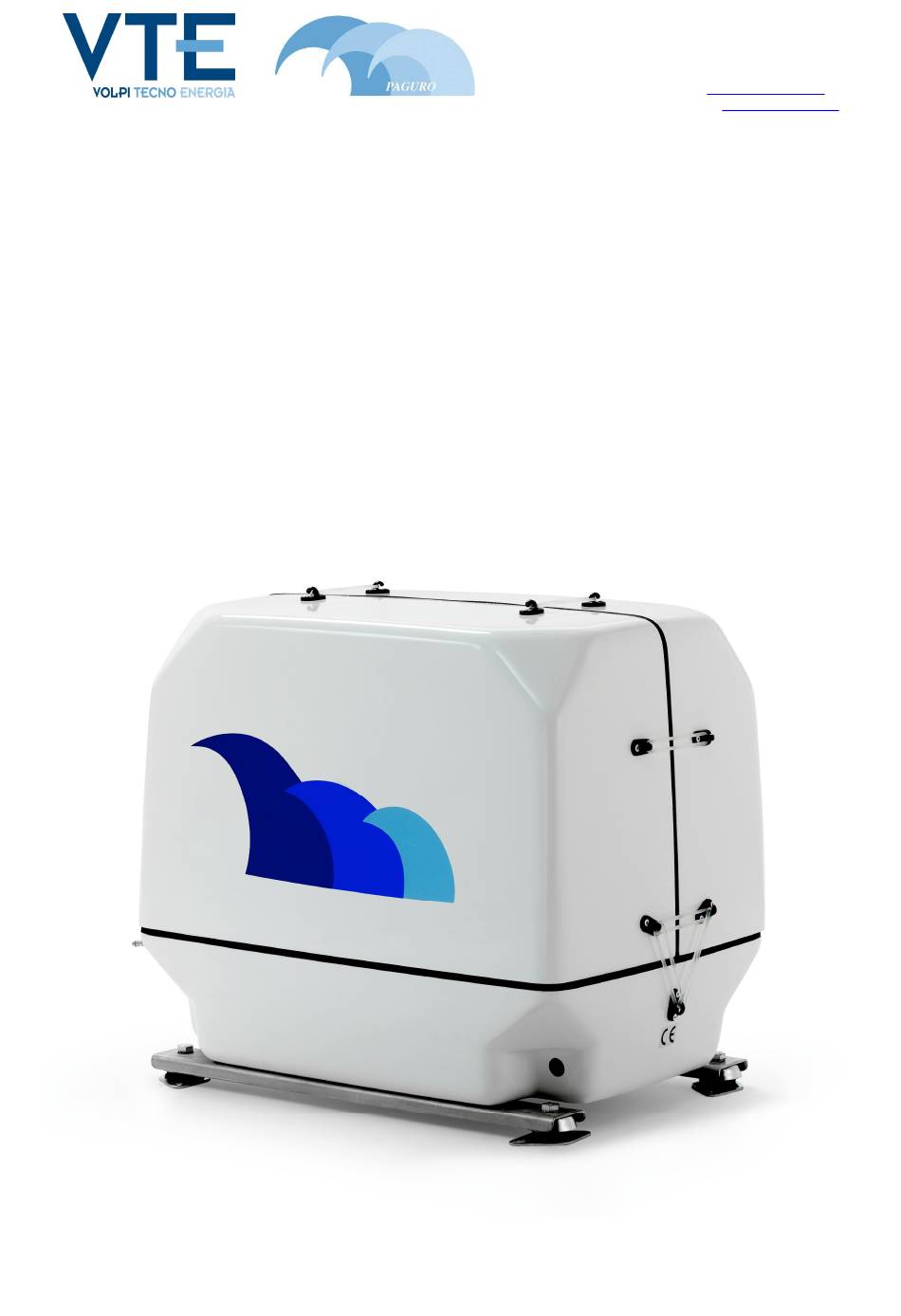

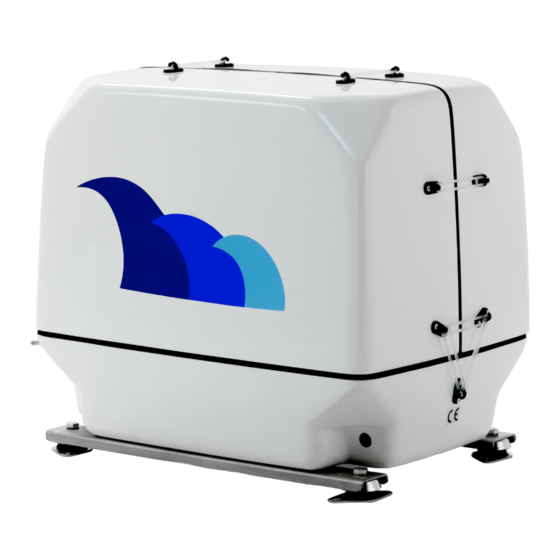

  • Page 1 V.T.E. S.R.L. Cap. Soc.: EUR 100.000,00 i.v. VOLPI TECNO ENERGIA S.R.L. V.A.T.: IT 00664600327 Via Petronio, 1/c C.c.i.a.a. Trieste: 91536 34015 Muggia - Trieste Tel.: +39 040 231715 E-mail: info@volpitecno.com Fax: +39 040 231933 Web-site: www.volpitecno.com OWNERS MANUAL PAGURO 12500...
  • Page 2 OWNERS MANUAL V.T.E. S.r.l. PAGURO 12500...
  • Page 3 So there is not the need to waste a large room in your boat, and even if the chosen place is away from the centre line of the boat, the reduced weight of the PAGURO will not influence the stability. TECHNICAL SPECIFICATION AND PERFORMANCES PAGURO 12500 Diesel engine maker Yanmar – Japan Engine type / cylinders n.
  • Page 4 IF YOU OR ANYONE ELSE EXPERIENCE ANY OF THESE SYMPTOMS GET OUT INTO THE FRESH AIR IMMEDIATELY. If symptoms persist, seek medical attention. Shut down the unit and do not restart unit until it has been inspected and repaired. PAGURO 12500...
  • Page 5: Safety Instructions

    Steam can cause injury or death! Extinguishers rated ABC by the NFPA are appropriate for all applications encountered in this environment. - In case of an engine overheat, allow the engine to cool before touching the engine or checking the coolant. PAGURO 12500...
  • Page 6 Muscular twitching Sulfuric acid in batteries can cause severe injury Dizziness or death! Intense headache Throbbing in temples Weakness and sleepiness - When servicing the battery or checking the electrolyte level, wear rubber gloves, a rubber apron, and eye PAGURO 12500...
  • Page 7 11 Tracy Drive Avon Industrial Park WARNING: Avon, MA 02322 Do not work on machinery when you are mentally or physically incapacitated by fatigue! USCG (United States Cost Guard) USCG 33CFR183 Order from: U.S. Government Printing Office Washington, D.C. 20404 PAGURO 12500...
  • Page 8 OWNERS MANUAL V.T.E. S.r.l. EC DECLARATION OF CONFORMITY Manufacturer: VOLPI TECNO ENERGIA SRL Address: Via Petronio 1/C – 34015 – Muggia (TS) The undersigned Riccardo Snaidero as Volpi Tecno Energia general manager declares that the generator model: Code Model AP125023050S0...
  • Page 9: Table Of Contents

    12 VOLT DC CONTROL CIRCUIT ……………………………………………………………………………………………………………………………….. BATTERY (Battery Care, Checking the service Battery) ……………………………………………………………………………………………… 11. GENERATOR INFORMATION ……………………………………………………………………………………………………………………………….. REQUIRED OPERATING SPEED ……………………………………………………………………………………………………………………………….. GENERATOR MAINTENANCE ……………………………………………………………………………………………………………………………….. 12. GENERATOR TROUBLESHOOTING ………………………………………………………………………………………………………………. 13. SHORE POWER TRANSFER SWITCH ………………………………………………………………………………………………………………. 14. LAY UP AND RECOMISSIONING ……………………………………………………………………………………………………………………………….. NOTE ……………………………………………………………………………………………………………………………………………………………..PAGURO 12500...
  • Page 10: Installation

    Consult the siphon-break manufacturer for a proper maintenance schedule. EXHAUST SYSTEM The exhaust hose must be certified for marine use. The system must be designed to prevent water from entering the exhaust under any sea conditions and at any angle of the vessel’s use. PAGURO 12500...
  • Page 11 6. Raw water inlet and outlet (through exhaust system). 7. Oil fill and oil drain hose. 8. Electrical connections. 9. Maintenance and service accessibility. 10. Accessories. Refer to the following illustration for the generator's overall dimensions. Generator dimensions PAGURO 12500...
  • Page 12: External Connections

    These are the minimum clearances required to provide adequate ventilation. NOTE: Engine combustion air enters the generator’s enclosure through holes in the base of the enclosure. This area must be kept clear of obstructions to help insure air entry. PAGURO 12500...
  • Page 13: Location And Mountings

    This must be done in an installation where the fuel tank is located below the engine's fuel system. This precaution insures against hard starting due to air displacing fuel siphoning out of the engine's fuel system through the return line when the generator is shut down. PAGURO 12500...
  • Page 14: Exhaust System

    Water-exhaust separator: it is possible to reduce the noise of the exhaust line installing a water-exhaust separator as per the following images. In this case, the exhaust gas output is separated from the water output, so that the typical plash of the water (of the traditional exhaust lines) is eliminated. PAGURO 12500...
  • Page 15: Raw Water Cooling System (Siphon Break, Raw Water Intake)

    The siphon-break provides an air vent in the raw water cooling system to prevent raw water from filling the exhaust system and the engine’s cylinder when the engine is shut down. PAGURO 12500...
  • Page 16: Starting Battery Connection

    (one of the 2 studs located on the starter where is already foreseen a metallic loop) Please refer to the electrical scheme of this manual. The generator's battery charger will charge its starting battery only (8A max) PAGURO 12500...
  • Page 17: Main Output Voltage (230 V Ac)

    Both the lines or at least the generator line only, have to be protected with a thermic switch, fitted on the main board panel. For your PAGURO choose a: 230V 50cyc. PAGURO 12500 CONTROL PANEL Mount the plug-in control panel in any desired remote location. The panel is furnished with 15 m of cable. When installing, pass the cable though bulkheads by disconnecting the cable at the control panel side.
  • Page 18: Preparation For Initial Start-Up

    This precaution will prevent damage caused by unanticipated operation of the AC machinery will prevent a cold engine from stalling. PAGURO 12500...
  • Page 19: Starting/Stopping Procedure

    Disregarding this fact and not maintaining the proper oil level may lead to overfilling, causing overheating and the possibility of engine runway. After shutdown, carefully inspect the generator. Check for possible leaks from all the connections inside the sound-shield. PAGURO 12500...
  • Page 20: Break-In Procedure

    Disregarding this fact and not maintaining the proper oil level may lead to overfilling, causing overheating and the possibility of engine runway. After shutdown, carefully inspect the generator. Check for possible leaks from all the connections inside the sound-shield. PAGURO 12500...
  • Page 21: Maintenance Schedule

    Never attempt to perform any service while the generator is running. Wear the proper safety equipment such as goggles and gloves, and use the correct tools for each job. Disconnect the battery terminals when servicing any of the engine’s DC electrical equipment. Please refer the engine manufacturer Operation Manual for a proper maintenance schedule. PAGURO 12500...
  • Page 22: Exhaust System

    Prevent this from happening by closing the raw supply through-hull shutoff, draining the exhaust muffler, and correcting the cause of the excessive engine cranking. Remember that engine damage resulting from raw water entry is not covered by V.T.E. S.r.l.'s warranty. PAGURO 12500...
  • Page 23: Cooling System

    If the engine temperature gauge ever shows higher than normal reading, the cause may be that silt, leaves or grass may have been caught up in the strainer, slowing the flow of raw water through the cooling system. PAGURO 12500...
  • Page 24: Lubrication System

    This will allow the operator to pump out any excess oil in case of overfill. Always observe the used oil as it is removed. A yellow/brown emulsion colour indicates the presence of water in the oil. PAGURO 12500...
  • Page 25: Adding New Oil

    Make sure proper ventilation exist whenever servicing fuel system components. FUEL FILTER The frequency of a fuel filter change depends on the degree of contamination of the fuel, however it should be performed according the engine manufacturer manual. PAGURO 12500...
  • Page 26: Fuel Supply Line

    Purchase needed spare parts from your local Volpi Tecno Energia dealer or distributor. If a leak should develop at a banjo washer that cannot be corrected by a simple tightening of the fitting, replace the sealing washer with a replacement found in the hardware kit for your model.
  • Page 27: Dc Electrical System

    If the START button is pushed by mistake while the engine is running, an electrical safety protects the starter motor by preventing its solenoid from energizing. For passing through small holes the remote control panel cable, the disconnection must be made panel side, opening the back cover, and not plug side, that is welded. PAGURO 12500...
  • Page 28: Volt Dc Control Circuit

    If not, there is a problem in the service battery charging circuit by checking the wiring and connections, the solenoid, isolator, battery switch, and the battery itself. A 5 amp fuse located in the control box protects the battery charging circuits. No panel lights means a blown fuse. PAGURO 12500...
  • Page 29: Generator Information

    Damage to the generator can result if utility shore power and generator output are connected at the same time. This type of generator damage is not covered under the warranty; it is the installer’s responsibility to make sure all AC connections are correct. PAGURO 12500...
  • Page 30 Both the lines or at least the generator line only, have to be protected with a magneto thermic safety switch, fitted on the main board panel. For your PAGURO choose a: 230V 50cyc. PAGURO 12500 PAGURO 12500...
  • Page 31: Lay Up And Recomissioning

    Lay-up time provides a good opportunity to inspect your generator to see if external items such as drive belt or coolant hoses need replacement. Check your basic spares kit and order items not on hand, or replace those items used during the lay-up, such as filters. PAGURO 12500...
  • Page 32 Do not smoke or allow an open flame near the battery being serviced. Shut off all electrical equipment in the vicinity to prevent electrical arcing during servicing. 2. Start the engine in accordance with the procedures described in the PREPARATIONS FOR INITIAL START-UP section of this manual. PAGURO 12500...
  • Page 33: Note

    V.T.E. S.r.l. OWNERS MANUAL NOTE PAGURO 12500...
  • Page 34 OWNERS MANUAL V.T.E. S.r.l. PAGURO 12500...
