TP active fun TP291 Instructions For Assembly, Maintenance And Safe Use page 6

2
M8 Nylon Insert M8
4
M8 Hook bolt short
Washer
Dome Nut
FA9791
FA9766
FA8163
4 4
TP928 Swing Seat 2
M8 Nylon Insert Dome Nut
M8 Washer
M8 Nylon Insert Dome Nut
M8 Washer

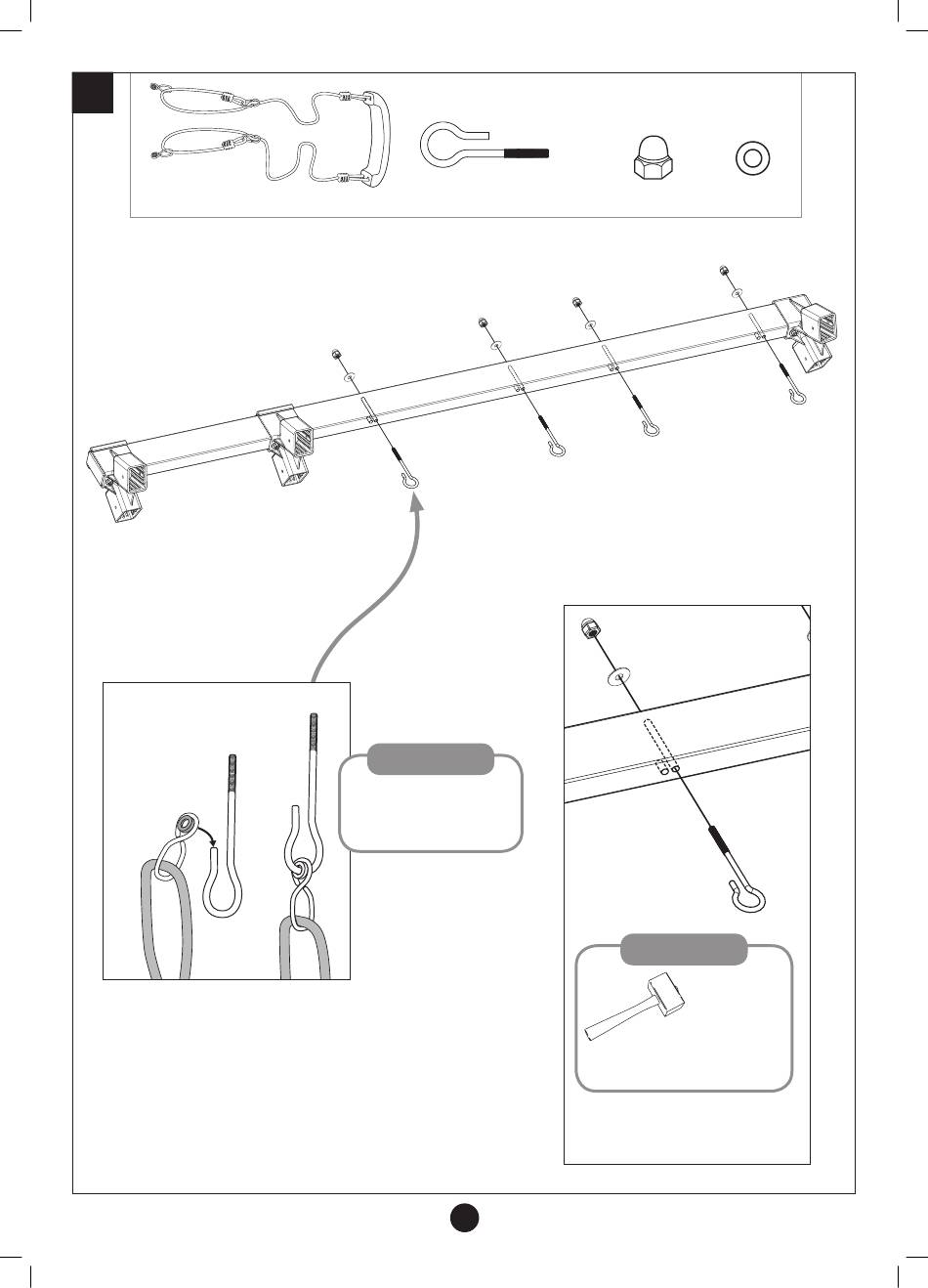

ASSEMBLY TIP
Hook Bolt
Attach swing seat ('S' hook)
to M8 Hook bolt before
inserting Hook bolt to top bar
'S' hook
(see left)
Hook Bolt
ASSEMBLY TIP
Use Mallet to
firmly locate hook
bolt in pilot hole
Do not screw hook bolt in
Forest Double Multiplay with Forest Green Wavy Slide
6
