π
H-1003

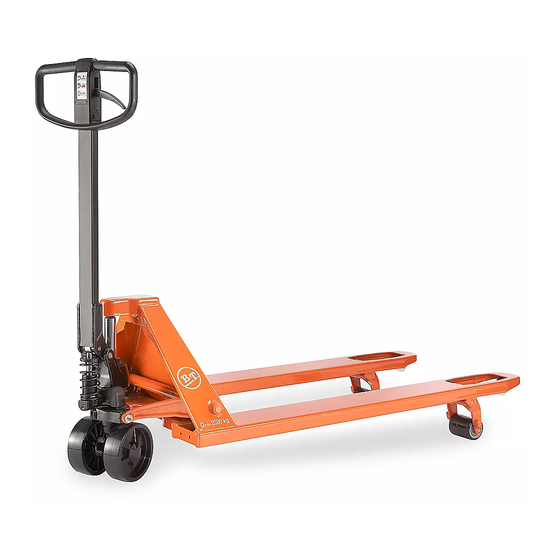

BT® PalleT Truck
NOTe: Always wear safety shoes when working
with the truck.
NOTe: Always wear protective glasses when
assembling or dismantling the truck to avoid
personal injury.
NOTe: The truck must not be used if it is
damaged or has any faults that affect safety
or its safe use. Also do not use the truck if it
has been repaired or adjusted unless it has
been checked and approved by an authorized
service technician.
OPErAtInG tHE truck
• the truck may be used only on a firm and even
surface, such as concrete or asphalt.
• It is not permitted to use the truck: In areas where
the atmosphere contains gases that can cause
fire or explosion. In such environments, a special
explosion-proof truck is required.
• to transport/lift passengers.
• In cold stores or salty and other corrosive
environments.
• use a stainless steel truck in this type of environment.
PAGE 1 OF 6
1-800-295-5510
uline.com
OPeRATIONs
IMPORTANT!
Read this manual thoroughly and
familiarize yourself with ALL con-
trols and operating features. Keep
this manual for future reference
and maintenance.
OPErAtOr's rEsPOnsIbIlIty
• the truck shall only be driven with care, good
judgement and in a responsible manner.
• the truck should not be driven with oily hands or oily
shoes due to the risk of slipping.
• never wear loose objects or jewelry when working
on the truck.
WOrkInG ArEA
• Ensure that the floor where the truck is to be used
has sufficient load bearing capacity for the total
weight of the truck including the maximum load.
• take special care if there are protruding parts from
racks, shelves or walls that can cause injury or
damage the truck.
• It is prohibited for persons to be present in the area
around the truck when there is a risk of personal
injury, e.g. areas that can be reached by falling
goods, lowering load handling devices or in the
truck's manoeuvring area.
0614 IH-1003
Advertisement
Related Manuals for U-Line BT H-1003
Summary of Contents for U-Line BT H-1003
- Page 1 π H-1003 1-800-295-5510 uline.com BT® PalleT Truck IMPORTANT! Read this manual thoroughly and familiarize yourself with ALL con- trols and operating features. Keep this manual for future reference and maintenance. OPeRATIONs OPErAtOr’s rEsPOnsIbIlIty NOTe: Always wear safety shoes when working with the truck.
- Page 2 OPeRATIONs sAFEty cOnsIdErAtIOns Figure 1 • Avoid cornering at high speed. • Pay particular attention to other personnel as well as fixed and moving objects within the working area and thereby avoid accidents. • Always pull the truck behind you if the load blocks the view.
-
Page 3: Maintenance And Repair
OPeRATIONs CONTINUeD PArkInG tHE truck Figure 2 • When parking the truck, the forks must be fully lowered. • never park the truck on an incline. • never park the truck so that it obstructs traffic or work. MAINTeNANCe AND RePAIR • to prevent malfunction and accidents, the truck inspected carefully. -
Page 4: Lubrication Diagram
LUBRICATION DIAGRAM Q=XXXX Kg XX mm XXXX mm o XX XXXXXXX mm=XX Kg Manufactured 2000-05-15 XXXXXX/XX OIl And GrEAsE sPEcIFIcAtIOns LUBRICANT sPeCIFICATION PRODUCT NAMe ORDeR NO. grease okq8 rubens wb 213366 hydraulic oil > -15ºc iso-vg32 bt hydraulic oil 32 1 liter: 233328-001 quality level: 5 liters: 233328-002... -
Page 5: Parts Reference
PARTs ReFeReNCe tow bar tow bar bracket Axle lock Pin valve rod Pedal spring Hydraulic Assembly top cap Hydraulic Assembly Pressure Plate tube links Arm bolts locking Pins circlip PAGE 5 OF 6 0614 IH-1003... -
Page 6: Troubleshooting
TROUBLeshOOTING OPeRATING IssUe CAUses ReCOMMeNDATIONs Pump does not take a full stroke. Air in the hydraulic system. Pump 5 strokes with lowering valve open. Insufficient hydraulic oil. contact a service technician. lift, neutral and lowering positions do the lowering valve is incorrectly set. Adjust the setting of the valve chain using not function correctly.
