4.4.

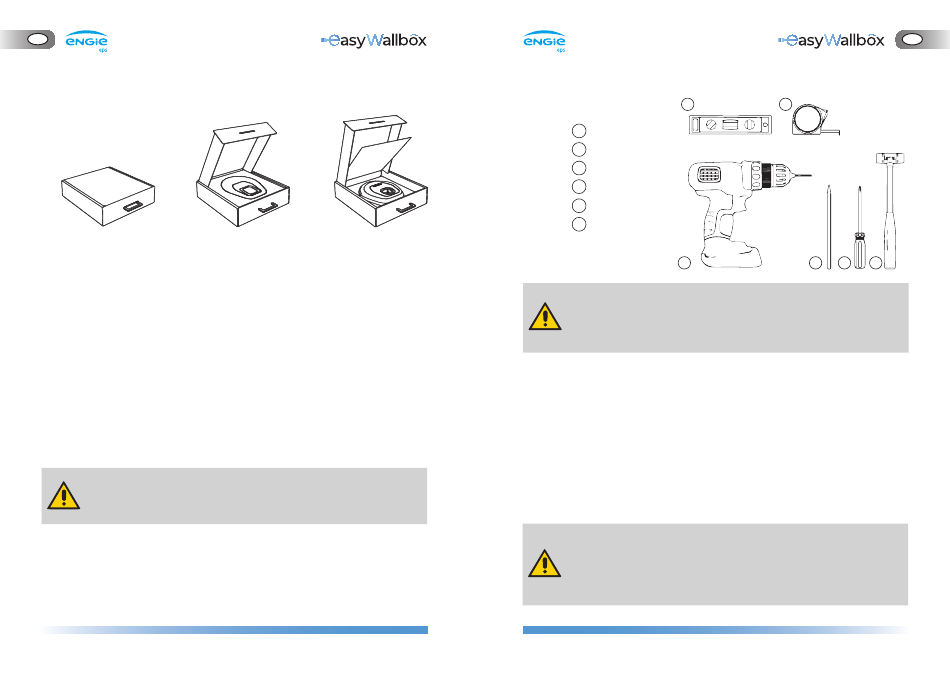

Opening the package

Opening the lid of the box
Closed box containing
containing easyWallbox
easyWallbox
When the box is opened, check that the various parts of
do not show signs of physical damage caused by knocks, lacerations or
abrasions. If damage is detected installation must be interrupted
immediately and the type of damage reported to the seller. If necessary,
contact assistance as explained in 11.
The individual components of the device are protected by PVC
packaging and sealed with adhesive tape. When the box is opened, the
parts should be cleaned to remove any dust, PVC residues or portions of
adhesive tape.
easyWallbox must only be taken f rom the box when everything has
been prepared for the installation and it must be transported manually
to the wall chosen for its installation.
When easyWallbox is moved manually, do not trip on the power
supply cable of the vehicle.
22
Raising the panel
in the box with easyWallbox
easyWallbox
4.5.

Wall mounting

5
5
1
Drill
2
Pencil
3 Screwdriver
4
Hammer
5 Spirit level
Measure tape
6
tools not included
1
1
ENGIE Eps declines any liability for damage to persons or things
that may arise from the use of such tools. We recommend
contacting qualified personnel or service for any question or
doubt concerning easyWallbox installation.
The national and international building regulations and the directives
defined by the International Electrotechnical Commission IEC 60364-1
and IEC 60364-5-52 must be respected when fixing
Correct positioning of the charging station is important for its operation.
When the installation wall is chosen for easyWallbox, take the
distances of the connection to the power supply and the connector
on the vehicle into consideration as well as the parking and
manoeuvring space available.
If several easyWallboxes are installed close together, there must be at
least 20 cm between each one.
easyWallbox must be installed at a height of 1.30-1.40 m from the floor.
Risk of electric shock.
Before starting installation, be sure that easyWallbox is not
connected to any power supply. Any operation of installation,
maintenance and dismantling shall be done only when power
supply is switched off on your service panel.
GB
6 6
2 3 4
2 3 4
easyWallbox to the wall.
