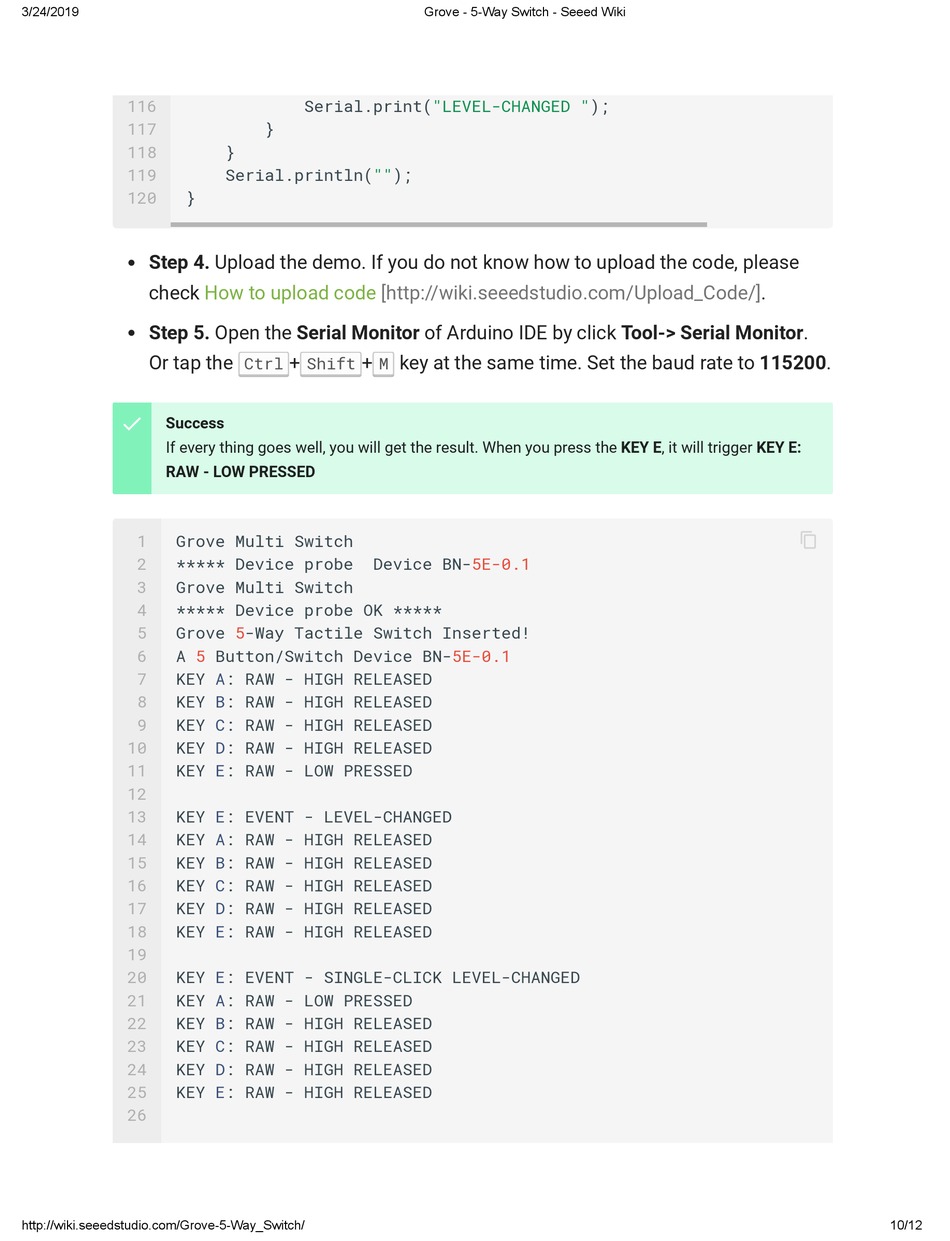

Seeed Grove Manual page 10

3/24/2019
116
117
118
119
120 }
Step 4. Upload the demo. If you do not know how to upload the code, please
check
Step 5. Open the Serial Monitor of Arduino IDE by click Tool-> Serial Monitor.
Or tap the

Success
If every thing goes well, you will get the result. When you press the KEY E, it will trigger KEY E:
RAW - LOW PRESSED
1 Grove Multi Switch
2 ***** Device probe
3 Grove Multi Switch
4 ***** Device probe OK *****
5 Grove 5-Way Tactile Switch Inserted!
6 A 5
7 KEY A: RAW - HIGH RELEASED
8 KEY B: RAW - HIGH RELEASED
9 KEY C: RAW - HIGH RELEASED
10 KEY D: RAW - HIGH RELEASED
11 KEY E: RAW - LOW PRESSED
12
13 KEY E: EVENT - LEVEL-CHANGED
14 KEY A: RAW - HIGH RELEASED
15 KEY B: RAW - HIGH RELEASED
16 KEY C: RAW - HIGH RELEASED
17 KEY D: RAW - HIGH RELEASED
18 KEY E: RAW - HIGH RELEASED
19
20 KEY E: EVENT - SINGLE-CLICK LEVEL-CHANGED
21 KEY A: RAW - LOW PRESSED
22 KEY B: RAW - HIGH RELEASED
23 KEY C: RAW - HIGH RELEASED
24 KEY D: RAW - HIGH RELEASED
25 KEY E: RAW - HIGH RELEASED
26
http://wiki.seeedstudio.com/Grove-5-Way_Switch/
Serial.print("LEVEL-CHANGED
}
}
Serial.println("");
How to upload code [http://wiki.seeedstudio.com/Upload_Code/].
+ +
Ctrl Shift M
Device
Button/Switch Device
Grove - 5-Way Switch - Seeed Wiki
key at the same time. Set the baud rate to 115200.
BN-5E-0.1
BN-5E-0.1
");

10/12
