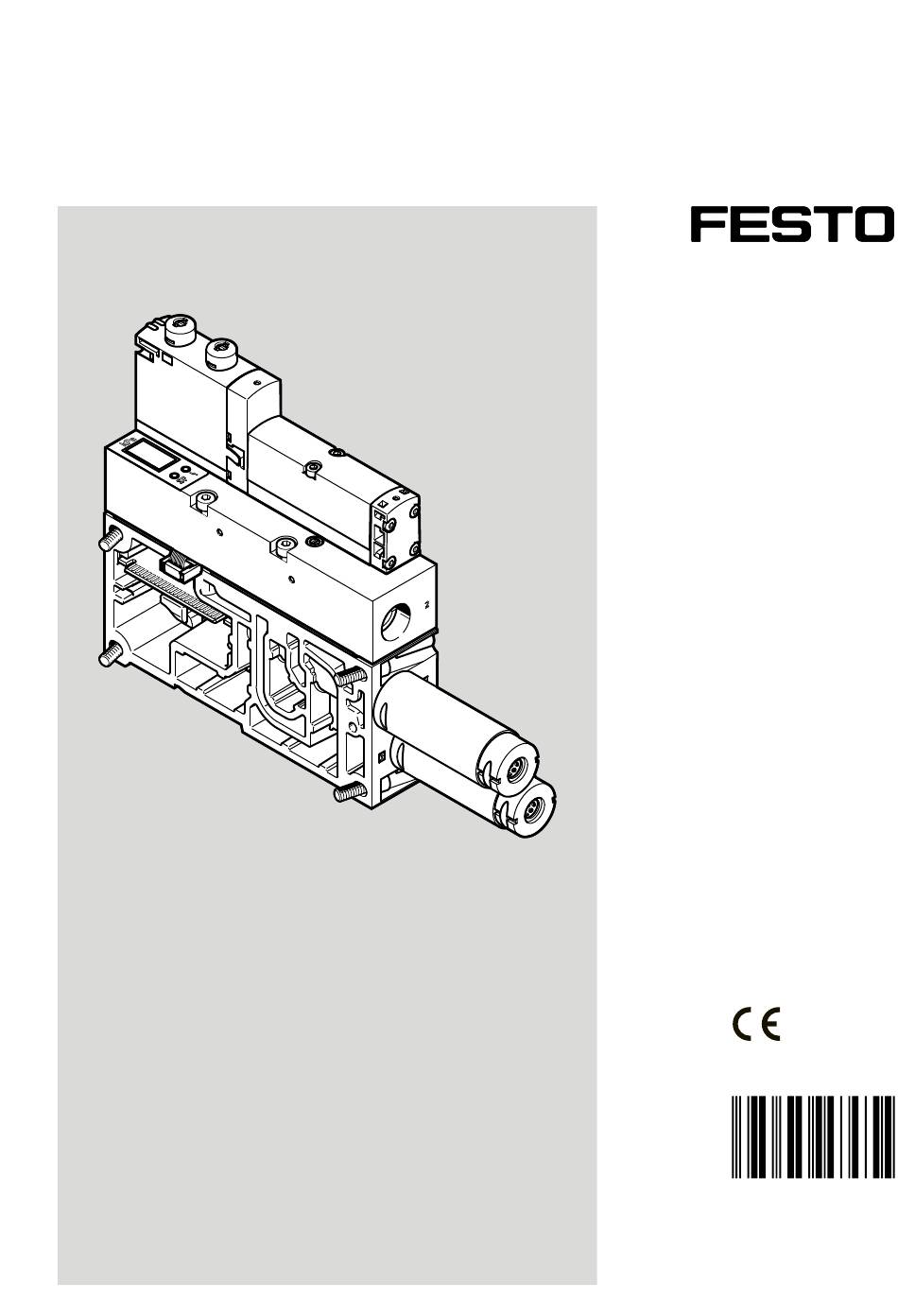

- Page 1 VABF-S4-...-CB-VH/VL-... Vacuum generator Instructions | Operat- 8099796 8099796 2019-05 [8099798]...
- Page 2 Translation of the original instructions Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
-
Page 3: Table Of Contents
Operation and use....................... 21 Operating manual override................... 21 Teach-in via FMT......................23 7.2.1 Teach clock cycle....................23 7.2.2 Teach-in threshold value comparator..............24 7.2.3 Teach-in window comparator..................24 Restoring factory settings..................... 25 Parameter description....................25 Module parameters...................... 25 Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... - Page 4 Parameter sets......................26 Process data........................27 Maintenance and care....................28 Malfunctions........................ 28 10.1 Diagnostics........................28 10.2 Fault clearance......................29 Conversion and repair....................30 11.1 Replace solenoid valve....................30 Technical data......................30 Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
-
Page 5: About This Document
Safety Intended use The vacuum generator VABF is designed for generating a vacuum. The vacuum generator is intended exclusively for use on Festo's VTSA-F-CB valve terminal. General safety instructions – Only use the product in original status without unauthorised modifications. -
Page 6: Product Overview
9 LED switching status indication for solenoid VTSA-F-CB (pneumatic and electric) valve 5 Electrical interlinking to valve terminal 10 Manual override for vacuum generation VTSA-F-CB 11 Manual override for ejector pulse Fig. 1 Operating elements and connections Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 7: Product Variants
Vacuum generator, high vacuum Vacuum generator, high suction flow rate Vacuum generation Laval nozzle 1.4 mm Laval nozzle 2.0 mm Laval nozzle 3.0 mm Additional function Ejector pulse, electrical Power ejector pulse, electrical Tab. 1 Overview of variants Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 8: Display Components
If the air supply or evacuation time is exceeded, the com- plete display flashes. Operating status Display Evacuation [Vacuum value] Pressurise [-||-] Teach process alternately [vacuum value] or [t Tab. 2 Behaviour of the 7-segment display Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 9: Function
The modified data are not imported until the vacuum generator is in normal position (vacuum genera- tion and ejector pulse deactivated). Switching functions The binary outputs A and B can be configured via the switching functions. The switching status inform- ation is made available as a process value. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 10: Vacuum Generation
Vacuum generation is activated when the output signal (output bit "Vacuum generation") is present for at least 50 ms. Since the vacuum generation is pulse-controlled, vacuum is also generated after deactivation of the output signal. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 11: Valve Control
Destruction of the product due to overpressure If the vacuum connection is tightly closed, overpressure can occur at the vacuum connection and des- troy the pressure sensor. • Use power ejector pulse only in open vacuum systems. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 12: Air Saving Function
è 8.1 Module parameters. If the switching frequency of the air saving function is greater than 1 Hz, the air saving function is deactivated. The vacuum generator goes into the operating status "continuous suction". Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 13: Monitoring And Diagnostics
– Leakage time = 2 s Value Calculation Result 25 kPa 2 s 12.5 kPa/s Reference to 50 kPa/s (VDR) 12.5 kPa/s 50 kPa/s 0.25 Process quality 0.25) x 100 75 % – Tab. 7 Example 2 for calculation of the process quality Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 14: Measured Variables
(vacuum) exceeds -5 kPa. 4.11 Teach-in function With the teach-in function, the switching points and the monitoring functions can be configured during operation. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... - Page 15 2 teach points (TP1 = SP1, TP2 = SP2) – HY = 2 kPa (adjustable) 1) 1) TP1 = minimum pressure value, TP2 = maximum pressure value, independent of the teach sequence Tab. 10 Window comparator Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
-
Page 16: Operating Statuses Of The Vacuum Generator
Solenoid coil 12: impulse con- trol with self-latching loop Generate vacuum Operating status after failure of the pilot air supply or the elec- trical supply of the vacuum gen- erator (self-retaining) Air saving Illuminated Illuminated Hold vacuum Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 17: Emergency-Stop Function
If communication between the controller and the vacuum generator is interrupted, a defined status is set. The following settings are defined in this error status state: – Output bit "Vacuum generation" is set to 0. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 18: Installation
Air saving function is not affected. Installation The vacuum generator is a functional element of the valve terminal VTSA-F-CB-... and assembled ex works. Basic information on installation è Operating instructions for valve terminal VTSA-F-CB-..Pneumatic installation Fig. 6 Plug pattern VABF-...-A Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... - Page 19 Fig. 7 Plug pattern VABF-...-AP VABF-S4-2-V2B1 Vacuum port Thread size Min. internal diameter of tubing VABF-...-VH-14 [mm] VABF-...-VL-14 [mm] VABF-...-VH-20 [mm] VABF-...-VL-20 [mm] VABF-...-VH-30 [mm] Tab. 13 Minimum inner diameter of the connecting hoses at the vacuum connection Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
-
Page 20: Commissioning
4. Switch on the ejector pulse via the valve terminal. Ä No ejector pulse is generated. 5. Switch off the ejector pulse via the valve terminal. 6. Slightly unscrew the flow control screw to regulate the ejector pulse Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 21: Operation And Use
1. Use a screwdriver to push in the tappet of the MO until the valve switches. Ä The valve reverts to the switching position. 2. Keep the plunger of the MO pressed. Ä The valve remains in the switching position. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... - Page 22 1. Use a screwdriver to push in the tappet of the MO until the valve switches. Ä The valve reverts to the switching position. 2. Turn the plunger 90° clockwise up to the stop and leave it in position. Ä The valve remains in the switching position. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
-
Page 23: Teach-In Via Fmt
Ä Valve returns to normal position. Teach-in via FMT The teach-in process must be carried out completely via the FMT (Festo Maintenance Tool è www.festo.com/sp). The vacuum generator can store 4 parameter sets. In order to manage additional parameter sets, the individual parameter sets can be stored externally and read in if required. -
Page 24: Teach-In Threshold Value Comparator
7. Set the "Teach-In -> Save" parameter to "active". Ä The teach points are checked for plausibility by the vacuum generator and stored. If the val- ues are not plausible, the data set is deleted and a process warning is triggered. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 25: Restoring Factory Settings
Process diagnosis Inactive Process diagnosis deactivated Tab. 15 Diagnostic parameters Parameter Factory setting Description Ejector pulse locked Inactive Interlock ejector pulse deactivated Operating mode Data record mode Selection of mode of operation Tab. 16 Function parameters Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 26: Parameter Sets
Pressure Channel A Inactive – Pressure Channel B – Time – Process quality Start Inactive Active Inactive Accept TP1 Inactive Active Inactive Accept TP2 Inactive Active Inactive Save Inactive Active Inactive Tab. 18 Teach-in parameters Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 27: Process Data
… 23 16 Not used … 15 8 Selection of parameter set … 7 3 Not assigned … Not used Vacuum generation Ejector pulse Tab. 20 Process output data mode of operation data record mode Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 28: Maintenance And Care
– Error message, check bus node. Warning Flashing Illumin- Vacuum value not – Check for leakage. ated reached – Error Illumin- Parameter/teach-in – Check settings ated error (e.g. value range). – Repeat teaching. Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 29: Fault Clearance
Operating voltage faulty Apply permissible operating voltage. Electrical connections swapped Connect device correctly. Device faulty Replace device. Incomplete display Display faulty Replace device. Pressure indicator incorrect Pneumatic connections Connect device correctly swapped 5.1 Pneumatic installation. è Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... -
Page 30: Conversion And Repair
10 … Pressure measuring range [bar] –1 0 … Overload pressure at [bar] 5 < vacuum port Mechanics Tightening torque of [Nm] 10 % ± screws, manifold sub-base Electronics Operating voltage range [V DC] 20 30 … Festo — VABF-S4-...-CB-VH/VL-... — 2019-05... - Page 31 IP 65 Materials Seals NBR, HNBR Female nozzle Housing Wrought aluminium alloy Plate Die-cast aluminium Adjusting screw High-alloy stainless steel Silencer PU foam, POM Jet nozzle Wrought aluminium alloy Screws Steel Tab. 24 Technical data VABF-... Festo — VABF-S4-...-CB-VH/VL-... — 2019-05...
- Page 32 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 Reproduction, distribution or sale of this document or communic- e-mail: ation of its contents to others without express authorization is service_international@festo.com...
