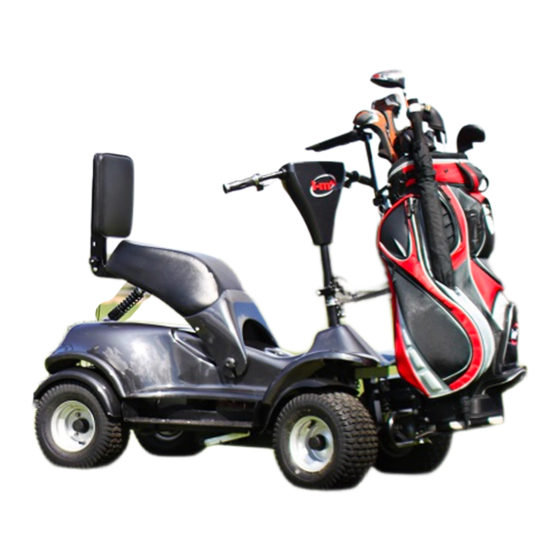

Single person golf cart
Hide thumbs Also See for IM4:

Advertisement

Table of Contents

OWNER'S MANUAL
IM4

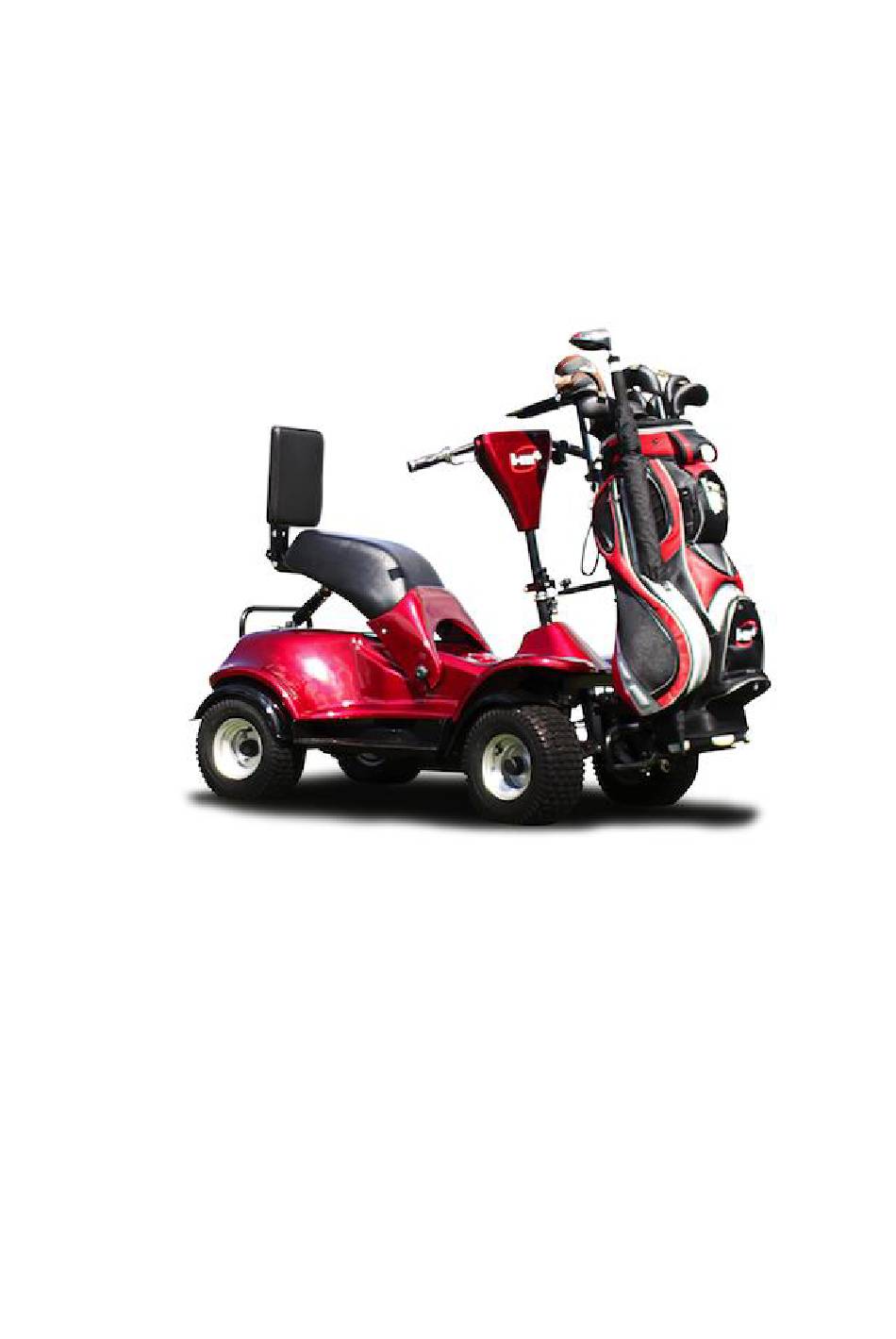

SINGLE PERSON GOLF CART
WARNING
Read this Owner's Manual carefully before operating your new scooter.
If you do not fully understand any part of this manual, please contact
Electric Vehicles Oceania on 02 8897 5374.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM4 and is the answer not in the manual?

Questions and answers

Related Manuals for I-Motioncaddys IM4

Summary of Contents for I-Motioncaddys IM4

  • Page 1 OWNER’S MANUAL SINGLE PERSON GOLF CART WARNING Read this Owner’s Manual carefully before operating your new scooter. If you do not fully understand any part of this manual, please contact Electric Vehicles Oceania on 02 8897 5374.

  • Page 2: Chapter 1 - Introduction

    The IM4 is designed to work in normal environmental conditions from very cold temperatures (-30ºC) to very hot temperatures (+45ºC). It will operate in light rain showers, but extended use is not recommended in heavy rain.

  • Page 3: Chapter 2 - Safety Instructions

    CHAPTER 2 – SAFETY INSTRUCTIONS Read this user manual completely before operating the buggy. Below are some precautions, tips, and other safety considerations that will help you operate the buggy safely. Please note and strictly adhere to the following section. It is also advisable to refresh your memory by re-reading this manual periodically.

  • Page 4: Chapter 3 - General Care And Inspection

    • Keep tools and other metal objects away from the battery terminals. Contact with tools can cause electrical shock. • The battery charger is for indoor use only. • At the rear of the buggy is the manual release lever of the BRAKE. When using this lever, be careful not to touch the internal surface of the motor, as it could be very hot and may cause injury.

  • Page 5: Chapter 4 - Parts List

    CHAPTER 4 – PARTS LIST Control panel Golf bag holder Handlebar release pin Body Front suspension Front bumper Foot brake pedal Horn button Battery power indicator Direction switch Accelerator throttle Ignition Seat suspension Rear carry bracket Electromagnetic brake handle (Free wheel lever) Rear tyre Padded seat Seat body assembly...

  • Page 6: Chapter 5 - Operation

    CHAPTER 5 - OPERATION 3.1 Operation · Please remove the charger from the buggy before turning the ignition key on. · Turn ignition key on. · Ensure charge indicator is sufficient. · Press FWD to move forward. · Press REV to move in reverse. ·...

  • Page 7: Chapter 6 - Accessories

    Golf bag holder · The golf bag holder is attached and detached using the lower and upper Bakelite knobs at the front of the buggy. Rear fold down carrier · To open: Release the Bakelite bolt, fold down the rear bracket and tighten the Bakelite bolt.

  • Page 8: Chapter 7 - Specifications

    CHAPTER 7 - SPECIFICATIONS Item Parameter Motor 36V 1300 Watt permanent magnetism Battery 12V 48AH x 3 / 12V 45AH x 3 / 12V 75AH x 3 Controller Curtis controller 1227-3402 dc36v / 160A Accelerate Hall accelerator continuous variable speed system Charger Full automatic efficiency pulse charger 5 Amp or 8 Amp...

  • Page 9: Chapter 8 - Maintenance

    CHAPTER 8 – MAINTENANCE Parts Inspection Golf buggy After use clean any mud or debris from under the body either with a hand brush or a light air hose. Only use a mild detergent with warm water for the exterior. DO NOT use a high-pressure jet wash.

  • Page 10: Chapter 9 - Trouble Shooting

    CHAPTER 9 - TROUBLE SHOOTING The buggy won’t start · Check the key is in the on position. · Check the battery power indicator. · Check the batteries are connected properly. · Ensure the buggy is NOT in free wheel mode. ·...
  • Page 11 The battery meter displays several horizontal bars. When the light at the top is shown, this indicates you have 100% charge. As you travel the bar will move towards the bottom of the display. It is advised to never completely discharge the batteries as this may be harmful to the batteries.
  • Page 12 WARRANTY The buggy must be operated according to the instructions described in this manual. Active Scooters guarantees any quality issues concerning its manufacturing or materials within the warranty period. Naturally this warranty does not cover misuse or normal wear and tear, and is limited if the customer has not had the product serviced by Active Scooters.
