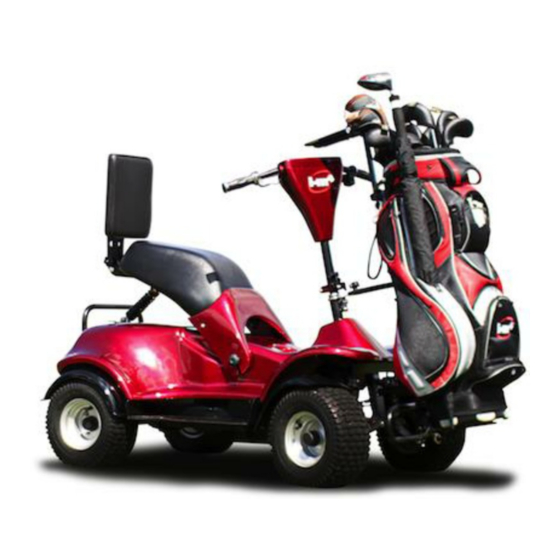

- Page 1 Range 2013 “Dedication to Excellence”...
- Page 3 Technical Specifications Dimensions Body & Chassis Length 49.5” (125.7cm) Width 32.5” (82.6cm) Height 42” (106.7cm) • Steel frame construction Height folded 31” (78.7cm) • Strong fibreglass body with quick seat release 27” (68.6cm) • Rust protected powder coated steel work Minimal ground clearance 4.5”...
- Page 5 Performance • One person seating capacity • Carrying capacity 200kg • Weight 153kg with batteries, 100kg without batteries • Maximum speed 12km/h • Slope climbing capacity 17 degrees • Brake range ≤4m • Turning radius ≤3m • Forward & reverse console mounted Dimensions Length 49.5”...
- Page 7 Technical Specifications Body & Chassis • Front and rear headlights • Front and rear indicator lights • Steel frame construction • Strong injection moulding construction • Rust protected powder coated steel work • Easy battery access • Range of colours available Power Dimensions •...
-
Page 8: Operation
Operation Golf Bag Holder Assembly Score Card Holder Assembly Picture 3 Picture 1 Picture 1 Picture 2 Mount score card Fix using holder bracket into bakelite sleeve on back of knob. golf bag holder. Picture 3 Picture 4 Fix using Picture 1 bakelite Locate pivot arm into slot provided... - Page 9 Bespoke i-m 4 Trailer Accessories Range Golf Bag Strap Umbrella Holder Quick Release Seat Kit Fold Up Ramps Mudflap Kit Fender Foot Mats i-m4 Golf Bag 45 / 48 / 75 Foot Mats i-m4 Glenmuir Polo Shirt Rear Basket Weather Cover Weather Cover Scorecard Holder Rear Basket...
-
Page 10: Parts Description
Parts Description Control panel 16) Rear tyre 18 p.s.i Golf bag holder 17) Padded seat Handlebar release pin 18) Seat body assembly Body 19) Footplate Front suspension 20) Front tyre 18 p.s.i Front bumper 21) Bonnet release catch Foot brake pedal 22) Micro switch Horn button 23) High/low speed switch... - Page 11 Parts Operation Operation · Please remove the charger from the buggy Power display before turning the ignition key on. · Running time will change according to ground · Turn ignition key on. conditions and terrain. · Ensure charge indicator is sufficient. ·...
- Page 12 Operation Inspection and maintenance Parts Inspection Golf buggy After use clean any mud or debris from under the body either with a hand brush or a light air hose. Only use a mild detergent with warm water for the exterior. DO NOT use a high-pressure jet wash.
-
Page 13: Troubleshooting
Troubleshooting The buggy won’t start · Check the F/R Switch is not in the neutral position · Check the key is in the on position · Check the battery power indicator · Check the batteries are connected properly Ensure the buggy is NOT in free wheel mode ·... - Page 14 i-m4 General Care Single seater golf and utility vehicle The i-m4 golf buggy is like any other electrical or mechanical device. Cleaning, care and inspection is a “must” which will result in longer life and extended reliability! General care and inspection After every use clean any mud or debris from under the body either with a hand brush or a light air hose.
-
Page 15: Safety Operation
Safety Operation Please read the following instructions carefully before using the i-m4 golf buggy. · DO NOT use the throttle handle as a support when mounting the buggy. · Turn off ignition when not in use. · Leave buggy in neutral mode when not in use. ·... - Page 16 0121 503 8109 www.i-motioncaddys.com sales@i-motioncaddys.com...
