Summary of Contents for Home H+

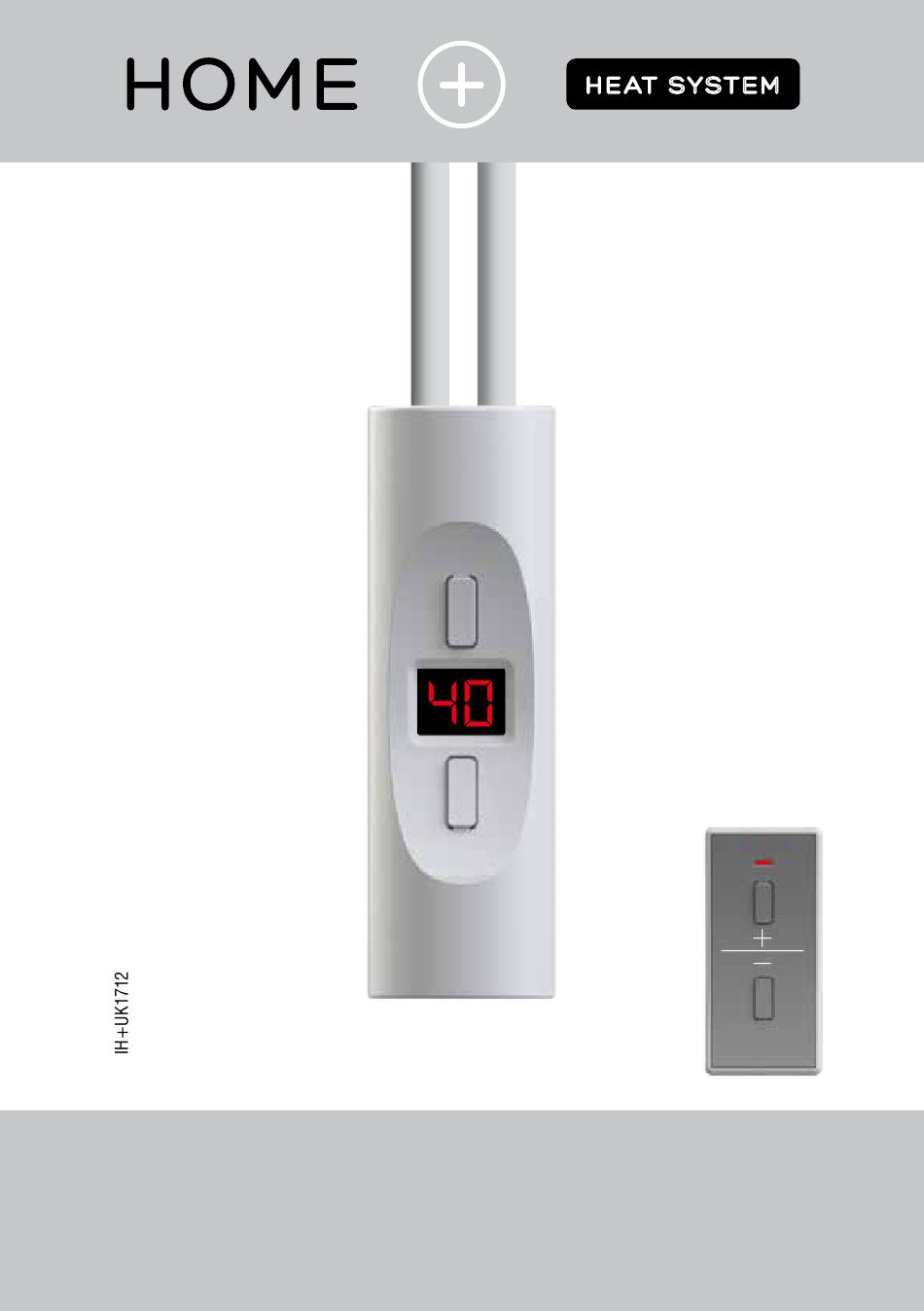

- Page 1 H E AT SYS T EM HEATER CONTROLLER – VERTICAL REMOTE CONTROLLER GUIDE & USER MANUAL HEATER CONTROLLER H+ | REMOTE CONTROLER H+R...
-
Page 2: Guarantee Card
SAFETY: 1. The heater should be installed by a qualified person. 2. Bathroom radiators fitted with electric heaters should be fixed not less than 60 cm from a bath, shower or wash basin, and never above abath. 3. For the heater permanently connected (hard wire) there must be applied a cut-off device from the mains. Such a device must disconnect the heater from the sup- ply mains in 2 poles, with contact separation of at least 3 mm. 4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved 5. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 6. The heater MUST BE DISCONNECTED before cleaning the casing. AVOID SOAKING THE CASING. -
Page 3: Kit Content
USER MANUAL: Heating element + Heater controller (vertical) H+ Mounting in radiators Kit content Heating element Heater controller >60cm >60cm System option: Wall clip Allen O/D shaped Wall mount color cover plastic cover Remote controller Installation options: Instllation options: CH system electric radiator Instllation details 230 V... - Page 4 CAUTION! Do not disconnect heater controller when 230 V the system is powered. Electric radiators 3-5 cm Finishing CH system Element (D) must be cut the correct lenght Cut to length Connection with a coiled Hard wire connection cable and a plug For the heater permanently connected (hard wire) there must be How to applied a cut-off device...
- Page 5 USER MANUAL: How to use heater controller (optional remote controller) VIDEO available at www.homeplus-system.com Heater controller Turn ON the controller Heater LED (Activity) ON/OFF controller display Remote controller Push for pairing button using – allen key to activate the controller Locate suitable place Back to mount the clip LED activity: heating element is working Pairing button for allen key (F) Wall clip mounting...
- Page 6 Heater controller and remote controller pairing If you bought a remote controller together with H+heater you do not need to pair it! Prepare remote controller + allen key for use During countdown within 30 seconds Press once Hold 3 sec. Reverse remote controller. upper and lower Start countdown Push pairing button!
- Page 7 – Heater controller Remote controller Heater controller Turn ON the controller ON/OFF START: Heater controller and remote controller pairing If you bought a remote controller together with H+heater you do not need to pair it! Prepare remote controller + allen key for use During countdown within 30 seconds Press once Hold 3 sec Reverse remote controller. upper and lower...
- Page 8 Run the heater controller via remote controller Hold upper button for 3 seconds 10˚C - 65˚C * Switch off the controller Select temperature via remote controller Hold lower button – for 5 seconds 40˚C Standard heating temperature TURBO mode activation TURBO mode activation - max heating temperature Hold button for 3 seconds Max heating temperature, selection for 1/2/3 hours –...
