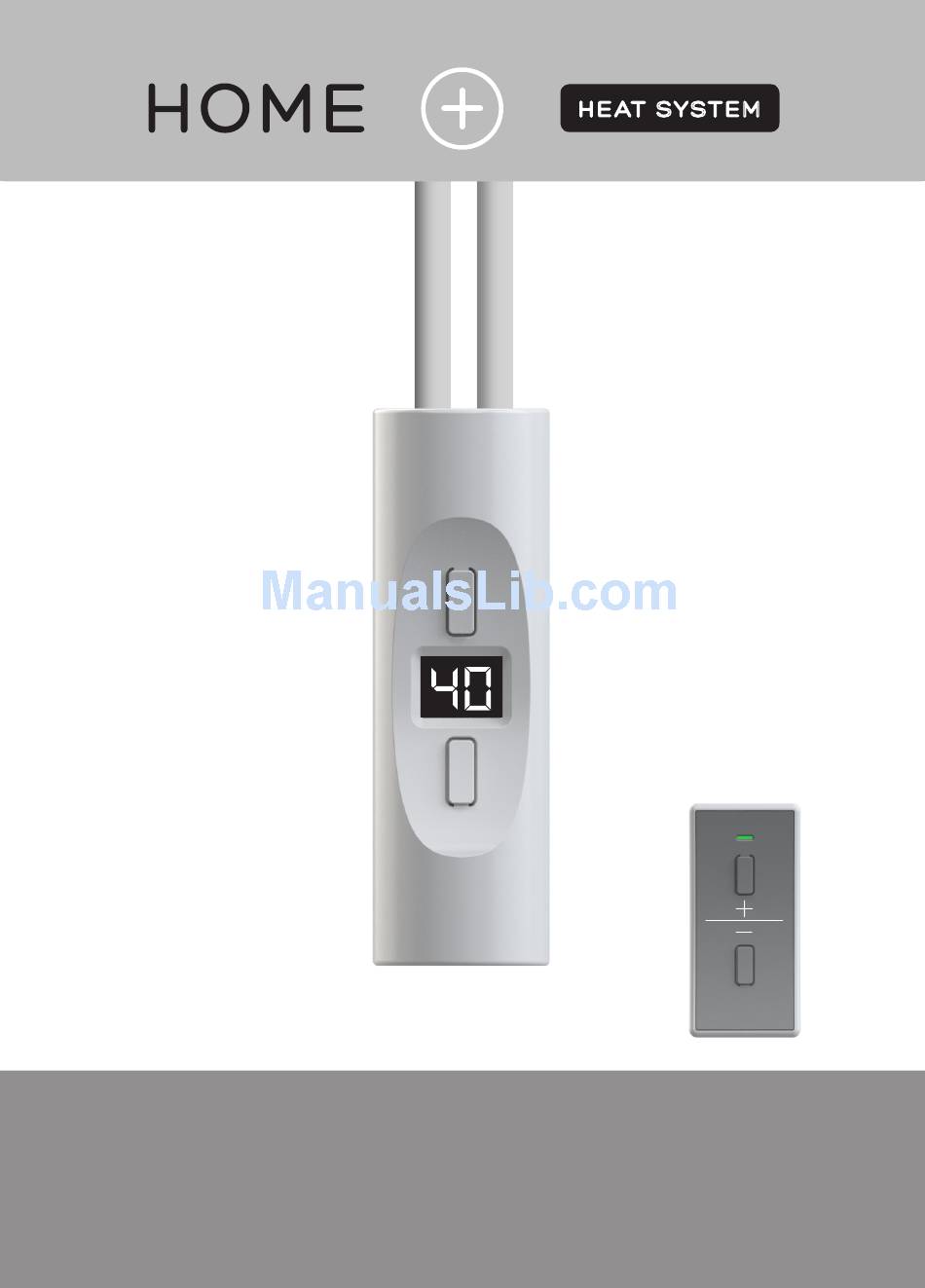

- Page 1 H E AT SYS T EM HEATER CONTROLLER – VERTICAL REMOTE CONTROLLER GUIDE & USER MANUAL HEATER CONTROLLER H+ | REMOTE CONTROLER H+R...
- Page 2 SAFETY: 1. The heater should be installed by a qualified person. 2. Bathroom radiators fitted with electric heaters should be fixed not less than 60 cm from a bath, shower or wash basin, and never above abath. 3. For the heater permanently connected (hard wire) there must be applied a cut-off device from the mains. Such a device must disconnect the heater from the supply mains in 2 poles, with contact separation of at least 3 mm.
- Page 3 USER MANUAL: Heating element + Heater controller (vertical) H+ VIDEO available at: www.homeplus-system.com Mounting in radiators Kit content >60cm >60cm Heating element CAUTION! Do not disconnect heater controller when the system is powered How to Hard Wire Live Heater Earth controller Neutral ON/OFF...
- Page 4 CAUTION! Do not disconnect heater controller when the system is powered. 230 V Electric radiators 3-5 cm Finishing CH system Element (D) must be cut the correct lenght Cut to length For the heater permanently connected (hard wire) there must be applied a cut-off device from the mains.
- Page 5 USER MANUAL: How to use heater controller (optional remote controller) VIDEO available at www.homeplus-system.com Heater controller Turn ON the controller Heater LED (Activity) ON/OFF controller display Remote controller Push for pairing button using allen key to activate – the controller. Locate suitable place to mount the clip When switched to an ambient temperature control, a remote controller is simultaneously a temperature sensor LED activity: heating element is working...
- Page 6 Heater controller and remote controller pairing If you bought a remote controller together with H+heater you do not need to pair it! Prepare remote controller + allen key for use During countdown within 30 seconds Press once Hold 3 sec.
- Page 7 Turn ON the controller ON/OFF START: Heater controller and remote controller pairing If you bought a remote controller together with H+heater you do not need to pair it! Prepare remote controller + allen key for use During countdown within 30 seconds...
- Page 8 Run the heater controller via remote controller Hold upper button for 3 seconds 20˚C - 65˚C Switch off the controller Select temperature via remote controller Hold lower button – for 5 seconds 40˚C Standard heating temperature TURBO mode activation TURBO mode activation - max heating temperature Hold button for 3 seconds Max heating temperature, selection for 1/2/3 hours –...
