Summary of Contents for DiaSys O-Classic

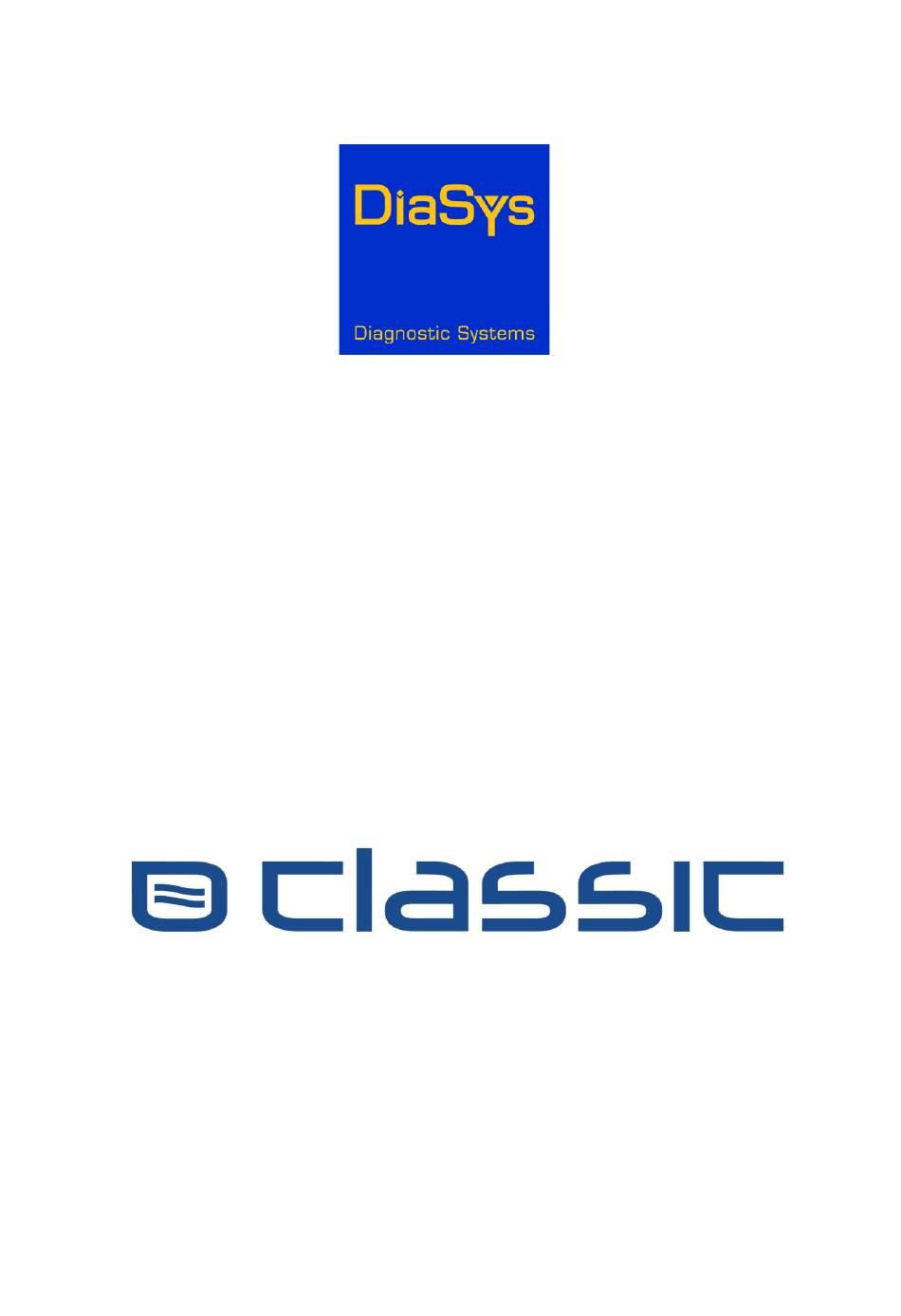

- Page 1 Operator’s Manual For The Water Purifier O-Classic operator’s manual version: 20.01.22...
-
Page 2: Table Of Contents
6 Maintenance............................11 6.1 Maintenance calendar........................11 6.2 Troubleshooting..........................12 6.3 Consumables..........................14 6.3.1 Filters kit (ref. 959020 – O-Classic/O-Eco FILTER KIT)............14 6.3.2 Membrane kit (ref. 959010 – O-Classic-O-Eco MEMBRANE KIT).........15 6.3.3 Resin kit (ref. 959030 – O-Classic/O-Eco RESINE KIT)............15 6.4 Maintenance procedures......................16 6.4.1 Flow measurement procedure.....................16 6.4.2 Conductivity measurement procedure................17... -
Page 3: Safety Informations
This water purifier works only with a main tension of 230 volts ~ / 50 Hz. Don’t connect too much instruments on the same plug to lower the risks of fire or electric shock. The low voltage electrical installation must comply with local standards. O-Classic operator’s manual version: 20.01.22... -
Page 4: Introduction To The System
NTRODUCTION TO THE SYSTEM 2.1 I NTRODUCTION The water purifier «O-Classic» is a purified water production system. It combines two leading-edge technologies in water treatment, which are: •The REVERSE OSMOSIS, which is currently the most elaborated and effective membrane separation process. -
Page 5: System Overview (Back View)
2.4 G ENERAL DESCRIPTION The “O-Classic” water purifier is a water treatment system including, in first instance, two pre- filtration cartridges: 5 µm-sediment filter + carbon block filter. Once the water pre-treated, it is then injected via a booster pump into the reverse osmosis membrane. The water obtained is discharged of 90% of its organic and inorganic compounds. -
Page 6: Description Of The Control Unit
CONDUCTIVITY ALARM light Informs you about the water conductivity. Water purifier producing Water purifier rinsing Lack of water supply Full storage tank Produced water conductivity < 1µS/cm Produced water conductivity 1µS/cm<X<5µS/cm Produced water conductivity > 5µS/cm O-Classic operator’s manual version: 20.01.22... -
Page 7: Technical Specifications
3-11 Mini / Maxi supply pressure 2/6 bars Dimensions (l × h × w) 37 X 21 X 50 cm Indicative weight 10.5 kg This system is recommended for a daily production below 30 liters. O-Classic operator’s manual version: 20.01.22... -
Page 8: Installation Of The Water Purifier
Never put a valve on the wastewater because it may damage the system To connect to the tap water using the male connector or the water inlet valve, both supplied with the system. Necessary to add a hand-valve O-Classic operator’s manual version: 20.01.22... -
Page 9: Installation Of The Reverse Osmosis Membrane
7. Screw the top part (“big cap”) of the membrane holder. 8. Reconnect the water inlet pipe. 9. Clip the membrane holder, the 1 µm-sediment filter cartridge and the in-line resin cartridge on its plastic stirrups. O-Classic operator’s manual version: 20.01.22... -
Page 10: Putting Into Service
0 and 0,1 µS/cm. Close the purified water valve. 9. Open the storage tank valve and wait until it is full: the FULL light is becoming green. 10. The controller goes to the next phase: 11. The water purifier is now operational. O-Classic operator’s manual version: 20.01.22... -
Page 11: Maintenance
AT LEAST EVERY 6 MONTHS Replace the pre-treatment and post-treatment depending of the conductivity values filters. See paragraphs 6.4.3, 6.4.4, 6.4.6 OCCASIONALLY Replace the reverse osmosis membrane and the flow restrictor. See paragraphs 6.4.7, 6.4.8 O-Classic operator’s manual version: 20.01.22... -
Page 12: Troubleshooting
Flush valve not connected (faulty contact) Check the Flush valve - PUMP light: blinking green - FLUSH+SOURCE lights: blinking - CONDUCTIVITY ALARM light: blinking blue 3-way valve not connected Check the 3-way valve O-Classic operator’s manual version: 20.01.22... - Page 13 - CONDUCTIVITY ALARM light: blue Conductimeter or temperature sensor out of order Replace the sensor - CONDUCTIVITY ALARM light: blue/yellow alternating Inverted connections between the conductimeter and the Open the control unit and temperature sensor invert the connections O-Classic operator’s manual version: 20.01.22...
-
Page 14: Consumables
6.3 C ONSUMABLES 6.3.1 Filters kit (ref. 959020 – O-Classic/O-Eco FILTER KIT) The filters kit contains the following consumables: Pre-treatment 1 µm-sediment filter cartridge (10") 5 µm-active carbon block cartridge (10") O-ring (10") Post-treatment 1 µm-post treatment cartridge (10") O-ring 1 µm-sediment... -
Page 15: Membrane Kit (Ref. 959010 - O-Classic-O-Eco Membrane Kit)
6.3.2 Membrane kit (ref. 959010 – O-Classic-O-Eco MEMBRANE KIT) The membrane kit includes the following consumables: 1 membrane + 1 flow restrictor. Flow restrictor Reverse osmosis membrane The reverse osmosis membrane and the flow restrictor must be replaced when there is plugging despite a relatively new substitution of the pre-treatment cartridges and/or a significative increase in the substitution frequency of the ion-exchange resin cartridges. -
Page 16: Maintenance Procedures
2. Open the purified water valve and let flow during 30 seconds to get a stabilized flow. 3. Start the chronometer as soon as you start filling the graduated cylinder. Measure during 1 or 2 minutes. 4. Convert the result in liters per hour. Compare this measurement to the theoretical value. O-Classic operator’s manual version: 20.01.22... -
Page 17: Conductivity Measurement Procedure
Connect instead the pipe with its closed valve (supplied) to do the conductivity measurement. Open the tap water valve. (1) Gustafson, H., Behrman, A. S., Ind. Eng. Chem Anal. Ed. 1939, 11, 7, 355-357. O-Classic operator’s manual version: 20.01.22... - Page 18 Disconnect the pipe with its closed valve and put back the oulet connection pipe of the storage tank. Open the storage tank valve. Open the tap water valve. The water purifier is operational again. O-Classic operator’s manual version: 20.01.22...
-
Page 19: Replace The 1 Μm-Sediment Filter Cartridge
3 to 4 liters to correctly drain the system. In the case that you replaced the ion-exchange resin, measure the conductivity of the purified water. It should be close to 0 µS/cm. 13. Close the purified water valve. The water purifier is now operational. Figure 6 O-Classic operator’s manual version: 20.01.22... -
Page 20: Replace The 5 Μm-Active Carbon Block Cartridge
3 to 4 liters to correctly drain the system. In the case that you replaced the ion-exchange resin, measure the conductivity of the purified water. It should be close to 0 µS/cm. 13. Close the purified water valve. The water purifier is now operational. Figure 7 O-Classic operator’s manual version: 20.01.22... -
Page 21: Replace The Resin Cartridges
3 to 4 liters to correctly drain the system. Measure the conductivity of the purified water. It should be close to 0 µS/cm. 14. Close the purified water valve. The water purifier is now operational. Figure 9 Figure 8 Figure 10 O-Classic operator’s manual version: 20.01.22... -
Page 22: Replace The 1 Μm-Post Treatment Cartridge
It should be close to 0 µS/cm. 14. Close the purified water valve. The water purifier is now operational. Figure 11 Figure 13 Figure 12 O-Classic operator’s manual version: 20.01.22... -
Page 23: Replace The Reverse Osmosis Membrane
It should be close to 0 µS/cm. 16. Close the purified water valve. The water purifier is now operational. Figure 14 Figure 15 Figure 16 O-Classic operator’s manual version: 20.01.22... -
Page 24: Replace The Flow Restrictor
It should be close to 0 µS/cm. 16. Close the purified water valve. The water purifier is now operational. Figure 19 Figure 18 Figure 17 Figure 21 Figure 20 O-Classic operator’s manual version: 20.01.22... -
Page 25: Spare Parts
6.5 S PARE PARTS Electronic controller Ref: 959050 Manometer 0-16 Bars Membrane holder Ref: 959040 Ref: 950207 2-way Flush valve Ref: 951111 Conductivity/temperature sensor Ref: 951107 3-way valve Ref: 951115 O-Classic operator’s manual version: 20.01.22... - Page 26 Pressure switch low pressure Ref: 950233 Inlet electrovalve Ref: 951111 Power supply Ref: 950520 Booster pump Ref: 950519 Pressure sensor 3 Bars Ref: 951114 O-Classic operator’s manual version: 20.01.22...
-
Page 27: Hydraulic Diagram
Flow restrictor 2-way 2-way valve Hand-valve valve Pressure Reverse Osmosis Membrane sensor Tap water Pump inlet 3-way Check valve valve Check valve Hand-valve Pressurized storage tank To the purified water valve Conductivity/ temperature sensor O-Classic operator’s manual version: 20.01.22... -
Page 28: Accessories List
CCESSORIES LIST Image Designation Image Designation Water purifier O-Classic Pressurized storage tank 8 liters Reference 951100 Reference: 950228 Reverse Osmosis Membrane Key for membrane holder 10’’ Valve ¼ʺ Conductimeter Reference: 950330 Reference: 950186 Quantity: 2 TEE UNION ¼ʺ Y ¼ʺ... - Page 29 MANUFACTURER DiaSys Technologies 1682, rue de la Valsière Cap Gamma – Parc Euromédecine II 34790 GRABELS Tel. : +33 (0)4 11 95 03 40 Fax : +33 (0)4 11 95 03 50 Internet : http://www.diasys-diagnostics.com Email : info@diasys-technologies.com O-Classic operator’s manual...
