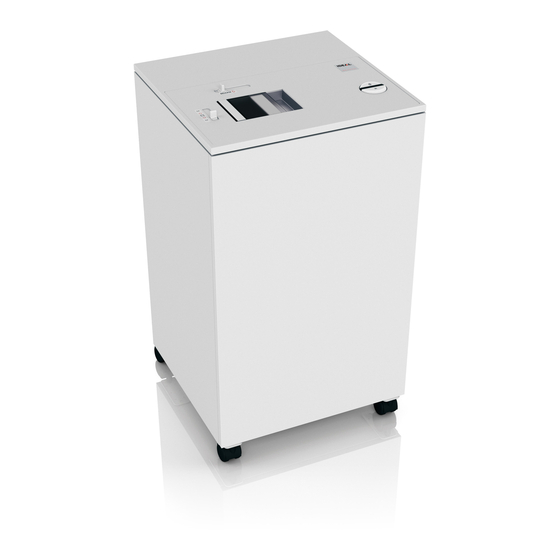

KRUG+PRIESTER IDEAL 0101 HDP Operating Instructions Manual
  1. Manuals
  2. Brands
  3. KRUG+PRIESTER Manuals
  4. Paper Shredder
  5. IDEAL 0101 HDP
  6. Operating instructions manual

KRUG+PRIESTER IDEAL 0101 HDP Operating Instructions Manual

Hard-drive punch
Hide thumbs Also See for IDEAL 0101 HDP:

Advertisement

Quick Links

Download this manual
Hard-drive Punch
Operating Instructions
IDEAL 0101 HDP
www.ideal.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDEAL 0101 HDP and is the answer not in the manual?

Questions and answers

Related Manuals for KRUG+PRIESTER IDEAL 0101 HDP

Summary of Contents for KRUG+PRIESTER IDEAL 0101 HDP

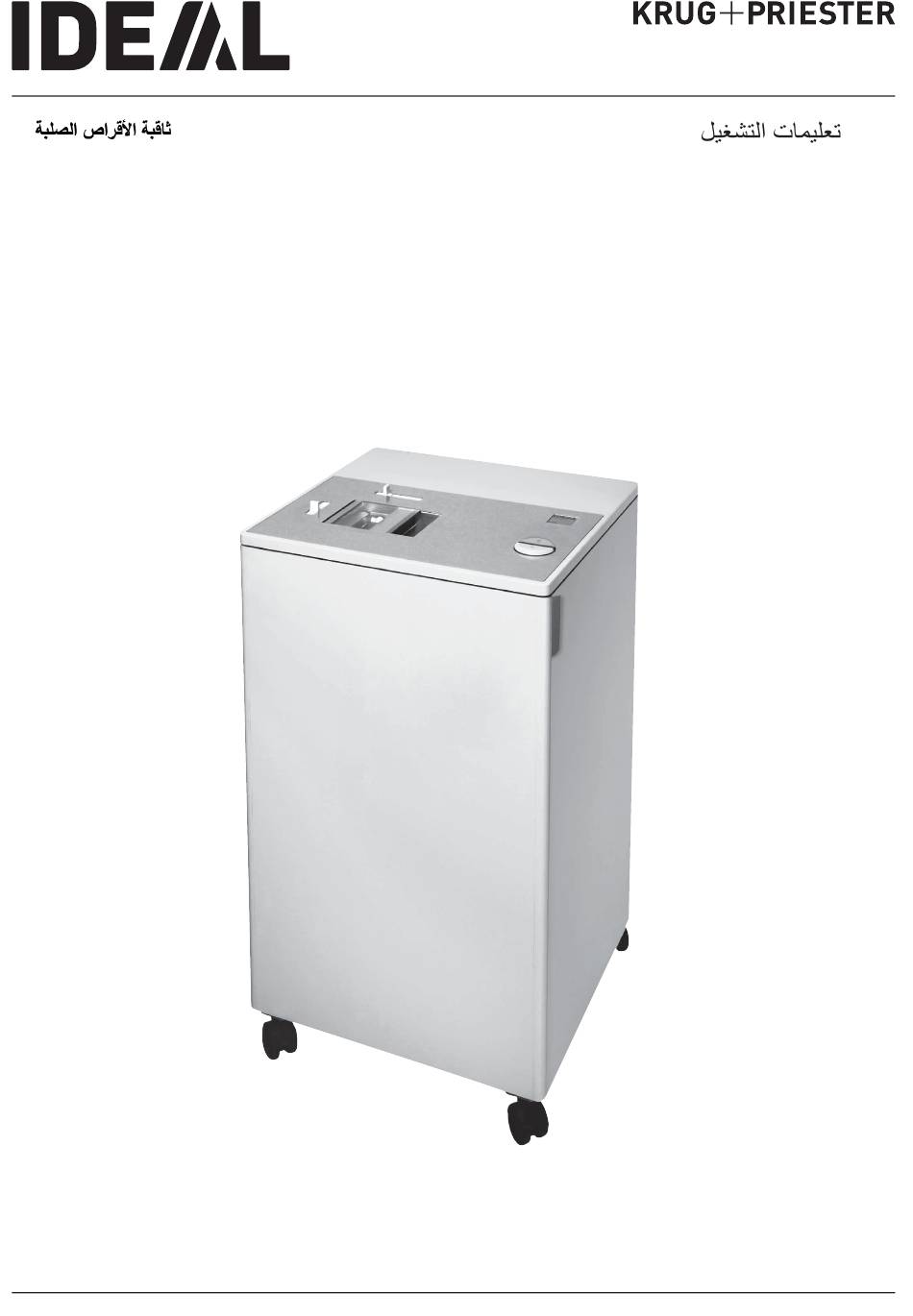

  • Page 1 Hard-drive Punch Operating Instructions IDEAL 0101 HDP www.ideal.de...
  • Page 2 • Safety precautions • • ‫إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ‬ Please ensure to read this operating manual befor starting the machine for the fi rst time and please strictly follow the safety instructions mentioned herein.
  • Page 3 • Safety precautions • • ‫إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ‬ !‫ﺗﺧﻠص ﻣن اﻟﺷواﺣن اﻟﺻﻐﯾرة / اﻟﺑطﺎرﯾﺎت‬ Do not destroy accumulators/batteries! Take care of long hair! Take care of ties and other loose pieces of clothing! Be careful of loose jewellery! - 3 -...
  • Page 4 • Safety precautions • • ‫إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ‬ The door and the feeding fl ap must be closed when operating the machine! Ensure free access to mains. 230 V / 10A 120 V / 15A Quick stop ...
  • Page 5 • Safety precautions • • ‫إ ر ﺷ ﺎ د ا ت ﻟ ﻠ ﺴ ﻼ ﻣ‬ 2,5" 3,5" The machine is designed to punch hard drives only. Sizes 2,5 and 3,5 inches. Remove the plug before cleaning the machine! Do not perform any repairs on the machine! See page 16.
  • Page 6 • • • Installation ‫ا ﻟ ﺘ ﺮ ﻛ ﻴ‬ Remove transport safety device Remove the band and take out the container. Remove 4 hexagon socket screws M 8 x 50 and washers. The transport safety device must be used when transporting the machine in horizontal position.
  • Page 7 • • • Installation ‫ا ﻟ ﺘ ﺮ ﻛ ﻴ‬ Put the container into the machine. Close the door. Plug into the wall socket. - 7 -...
  • Page 8 • • • ‫ﻹ ﺳ ﺘ ﺨ ﺪ ا م‬ Operation 2,5" 3,5" Set the hard drive size. 2,5" hard drive B=70 mm) slide bar to position 2,5‘‘ 3,5" hard drive B=102 mm) slide bar to position 3,5‘‘ Warning! It is important that the slide bar is in the correct position.
  • Page 9 • • • Operation ‫ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م‬ Open the feeding fl ap. Insert the hard drive. - 9 -...
  • Page 10 • • • ‫ﻹ ﺳ ﺘ ﺨ ﺪ ا م‬ Operation Close the feeding fl ap.  machine starts. Press button The machine switches off automatically after punching. Push the slide bar to the right  the punched hard drive falls into the container.
  • Page 11 • • • Operation ‫ا ﻹ ﺳ ﺘ ﺨ ﺪ ا م‬ Machine stops automatically when the feeding fl ap or door are opened during operation. Symbols fl ash alternatively. START The two-colour switch fl asches when the door and feeding fl ap are closed. STOP •...
  • Page 12 • • • ‫ﻹ ﺳ ﺘ ﺨ ﺪ ا م‬ Operation Automatic return if the hard drive cannot be punchend. Machine stops automatically when the maximum weight in the container is reached. Level indicator lights  empty the container.Byt säck. - 12 -...
  • Page 13 َ ‫ح ت‬ َ ‫لة م‬ ُ ‫أعطال م‬ • • • Possible malfunctions Machine will not start Is the machine plugged in?skinen ansluten? Is the door or feeding fl ap open?  Close it. - 13 -...
  • Page 14 َ ‫لة م‬ َ ‫ح ت‬ ُ ‫أعطال م‬ • • • Possible malfunctions Container is full  empty the container. Sacco pieno?  Sostituire il sacco. E ¿Bolsa Ilena?  Cambie la bolsa. S Plastsäcken full?  Byt säck. Machine stops.
  • Page 15 َ ‫ح ت‬ َ ‫لة م‬ ُ ‫أعطال م‬ • • • Possible malfunctions Error display fl asches  Restart the machine. If fl asch continues contact your service team. - 15 -...
  • Page 16 َ ‫ح ت‬ َ ‫لة م‬ ُ ‫أعطال م‬ • • • Possible malfunctions ‫أﻟم ﺗﺳﺎﻋدﻛم أي ﻣن اﻟﺣﻠول اﻟﻣذﻛورة أﻋﻼه؟‬ ‫اﻻﺗﺻﺎل: اﻟﺧدﻣﺔ‬  www.krug-priester.com • service@krug-priester.com • Did none of the specifi ed solutions help Service you with your problem? ...
  • Page 17 • • • Technical Information ‫ﻣ ﻌ ﻠ ﻮ ﻣ ﺎ ت ﻓ ﻨ ﻴ ﺔ‬ 2014/30/EU 2014/35/EU This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2014/35/EU and 2014/30/EU. Noise level information: The sound level at the work place is less than the EN ISO 7779 standard’s maximum permi sible level of 70 dB(A).
  • Page 18 • • • Technical Information ‫ﻣ ﻌ ﻠ ﻮ ﻣ ﺎ ت ﻓ ﻨ ﻴ ﺔ‬ ‫ ةكرش ىدل‬Krug + Priester ‫:ةيلاتلا تاداهشلا‬ ‫• قفو ةدوجلا ةرادإ ماظن‬ DIN EN ISO 9001:2015 ‫• قفو ةئيبلا ةرادإ ماظن‬ DIN EN ISO 14001:2015 ‫•...
  • Page 19 ‫ر‬ ‫و‬ ‫ل‬ ‫ا ة‬ ‫ا‬ ‫ع إ‬ • Recycling • • Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection- service.
  • Page 20 EC-declaration of conformity - Herewith we declare that - complies with the following provisons applying to it IDEAL 0101 HDP GS-ID No. 11141001 UL-ID No.10141001 2006/95/EG Low voltage directive 2014/30/EU EMV Electromagnetic compatibility directive 2011/65/EU, 2015/863/EU RoHS directive - Applied harmonised standards in particular AfPS GS 2014:01 PAK;...
  • Page 21 Remarks: - 21 -...
  • Page 22 Remarks: - 22 -...
  • Page 23 Remarks: - 23 -...
  • Page 24 IDEAL • Made in Germany ‫آ ﻟ ﺔ إ ﻓ ﻨ ﺎ ء ا ﻟ ﻤ ﻠ ﻔ ﺎ‬ • • Document Shredders • • • • Trimmers and Guillotines • • Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) IDEAL 06-2017 15.01.2020 zm...
