SOMFY animeo EIB / KNX 4 AC Motor Controller WM/ DRM 220-240V AC Wiring Diagram

animeo
Wall Mounted
Ref. : 1 860 114
The animeo EIB / KNX 4 AC Motor Controller WM/ DRM 220-240V AC is designed to control four individual configurable
motor outputs for Venetian blinds, roller shutters, screens, awnings or windows. Local push button inputs can be
used as conventional push buttons or as universal binary EIB inputs. The four outputs can also be controlled by using
the animeo RTS radio plug in module.

BENEFITS AND PRODUCT FEATURES:

- Practical installation benefits which reduce the installation time, e.g. spring connectors, cable tension release, ...
- A group input can be used to control all four outputs independent of ETS programming.
- Single fuse protection per motor output.
- The device can be used basically without the need to be programmed by the ETS software.
- Max. 8 local push button inputs can be used as universal EIB binary inputs to connect for example window contacts,
temperature sensors or presence detectors. A conventional push button can also be used in order to realise dimming
functions in combination with lighting actuators.
- User friendly and intuitive configuration via the ETS parameter cards.
- Intelligent switching between manual and automatic functions to provide excellent user comfort and powerful energy
saving functions.
- Position feedback of each motor output during move and when reaching the UP and DOWN end limits
- Two free configurable security levels per motor output.
- Free configurable action at mains power return.
- Automatic cascading of the motor outputs to limit the peak current in case of mains power return and bus safety
functions.
- Plug and play! The motor outputs can also be controlled via the Somfy RTS radio technology by using the animeo
RTS radio plug in module at any time without additional wiring.
- In cases where radio technology is not allowed, e.g. in hospitals, the motor outputs can also be controlled with
the animeo Infrared module!
Local control with
Radio Technology Somfy
Possible upgrade
®

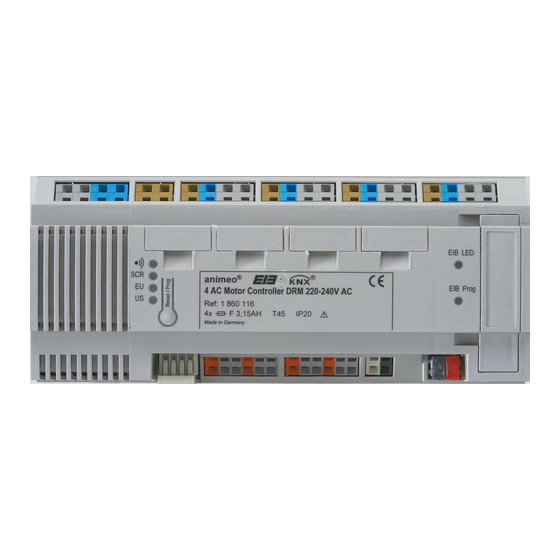

4 AC Motor Controller WM/ DRM 220-240V AC
DIN Rail
Ref. : 1 860 116
