Summary of Contents for Autoenterprise COMMERCIAL 2

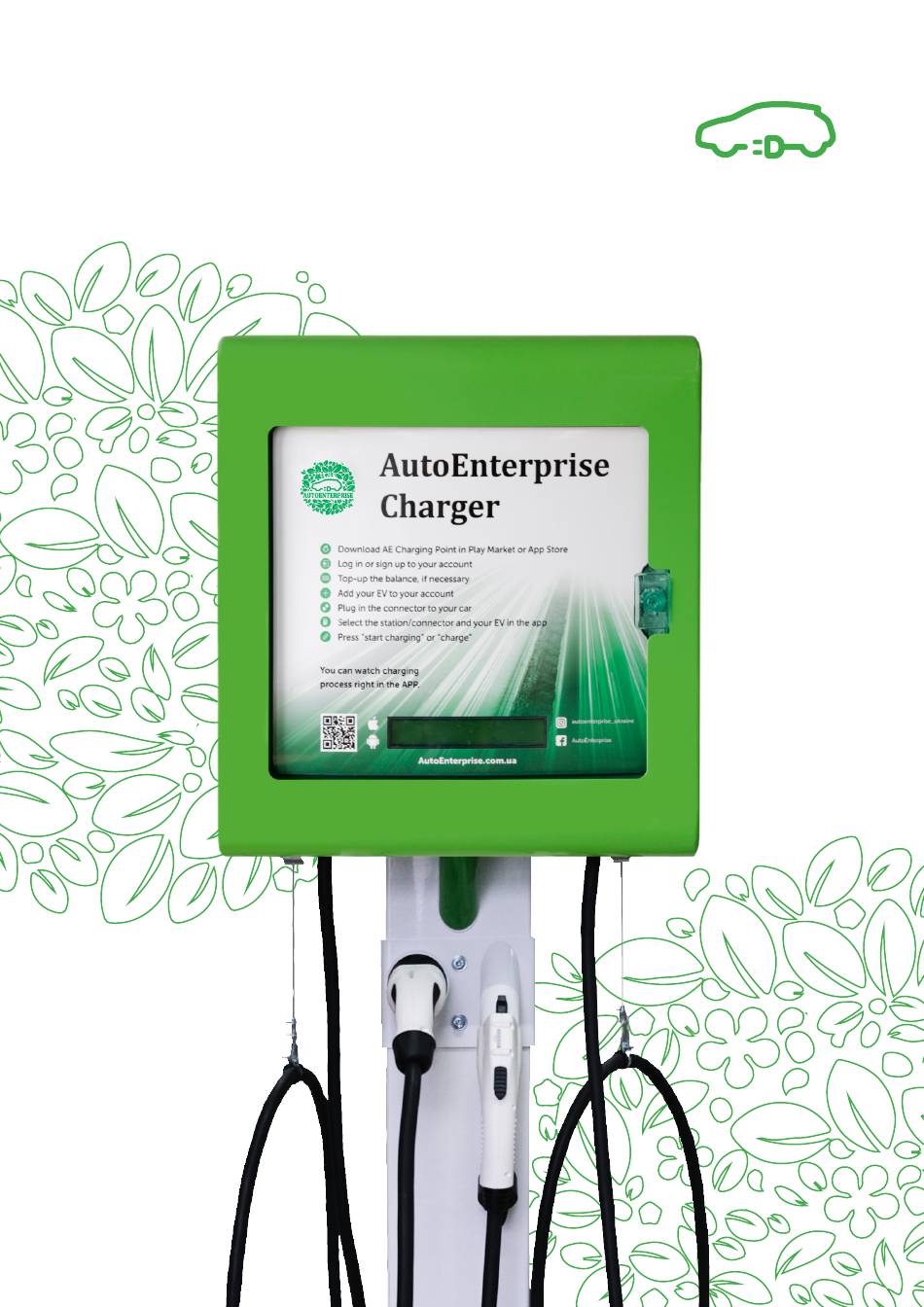

- Page 1 Instruction manual «COMMERCIAL 2»...
- Page 2 © Copyright This documentation with all illustrations is the intellectual property of AutoEnterprise LLC (“AutoEnterprise”). All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION TABLE OF CONTENTS 1. Instruction manual ........................4 2. Key information ..........................4 2.1 Information about the manual ....................4 2.2 Warning signs ...........................4 2.3 Liability and warranty ......................5 2.4 Disposal information .......................6 2.5 Manufacturer’s label .......................6 3. -
Page 4: Instruction Manual

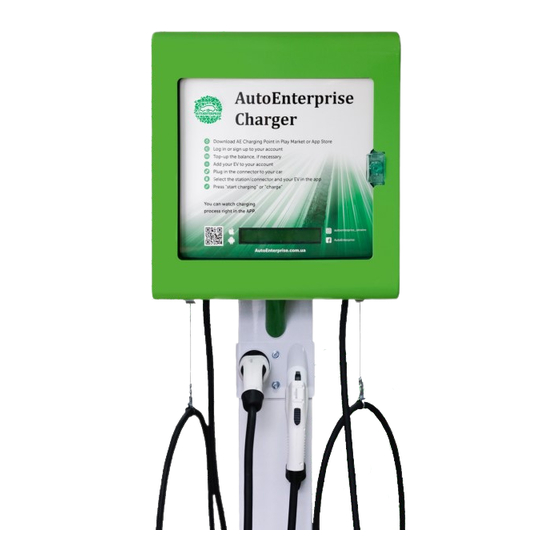

INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION 1. INTRODUCTION COMMERCIAL 2 - is a high quality charging station (hereinafter referred to as «the station»), which is made using the latest solutions in the field of power electronics and technology, based on the modern components combined with the microcontroller signal processing technology, which ensures high efficiency, functionality and reliability of the charger. -
Page 5: Liability And Warranty
Any software included in this equipment must only be used for the purposes for which it has been provided to the User by the AutoEnterprise for which it is strictly prohibited to make any changes, conversions or copies (except for any necessary backups). -
Page 6: Disposal Information
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION 2.4 DISPOSAL INFORMATION Do not dispose of the charging station together with household waste! Electronic devices must be disposed of in accordance with the local directives for the disposal of electronic and electrical waste. If you have any further questions, please contact your supplier. -
Page 7: Application Area, Technical Specifications
3.1 APPLICATION AREA The charger is designed exclusively for charging electric vehicles. For information about the materials, please contact AutoEnterprise sales representative or contact the AutoEnterprise technical support team. The following sections should also be followed as part of the intended use: •... - Page 8 INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION Access types RFID-card Smartphone app Chip-tag (extra option) Delivery contents Charging station, user manual Charging station dimensions 2075x464x280 mm 3 Type 1 connectors Type 1 Type 1 Type 1 2 Type 1 connectors 1 Type 2 connector...
-
Page 9: Equipment Modifications
All signs, stickers and pictograms attached to the machine must be visible, legible and cannot be removed. Signs, labels or pictograms that have become damaged or illegible must be replaced immediately. Please contact AutoEnterprise to coordinate such questions. 3.4 GENERAL ELECTRICAL SAFETY INFORMATION Follow the safety instructions to avoid injury and material damage when working with the device. -
Page 10: Dimensions, Station Installation
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION 4. CONNECTIVITY 4.1 CHARGER DIMENSIONS AND PARAMETERS The station is structurally designed as a monoblock mounted on a stand and has the following control and management bodies: Charging station in the case on a stand (optional - without a stand) - 1 pc;... -
Page 11: Transportation
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION 4.2 TRANSPORTATION WARNING There is a risk of injury from falling parts during transportation, loading or unloading of the station. ATTENTION The charger may be damaged or destroyed if it is mishandled during transportation. -
Page 12: Installation
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION INSTALLATION RECOMMENDATIONS The complex is installed on a 500x500x500 mm concrete base. We recommend to prepare a special foundation with an installed metal plate (plates are available). The plate sizes of a station stand for self-making the plate are given in the figure below. -
Page 13: Storage
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION THE FIRST CONNECTION TO BE MADE IS THE GROUND WIRE TO THE GROUND BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A CONNECTED GROUNDING! Non-compliance with this requirement may result in the energizing the charger body, electric shock damage to the service personnel and consumers, as well as in a failure of the charger. -
Page 14: Maintenance
INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION 5. MAINTENANCE ATTENTION • Improper maintenance can result in serious injury or damage to the station. For this reason, this work may only be performed by authorized, trained personnel who are familiar with the operating principles of low- voltage electrical equipment and who strictly comply with all relevant safety instructions when working with electrical systems. - Page 15 INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION Name of malfunction, external manifestation and Probable cause Possible remedy additional signs Loss of communication with Modem failure Replacing the modem or the charging station checking the status of the SIM card Bad location of the antenna...
- Page 16 INSTRUCTION MANUAL COMMERCIAL 2 CHARGING STATION TECH SUPPORT Contacts: 1. You can write an email to tech support using the contact page on our web-site. 2. You can call on numbers listed on the web-site. AUTOENTERPRISE.UA...
