MC-100V & BC-100V
Operation & Installation Manual
Your guide on how to use and install Rinnai Deluxe Water Controllers
This guide is for the use and installation of Rinnai Deluxe remote controller models MC-100V
and BC-100V.
These instructions MUST BE used in conjunction with the Rinnai Water Heater Operation /
Installation Manual supplied with Rinnai water heaters.
These remote controllers are compatible ONLY with the Rinnai water heater and other remote
controller models shown.
Refer to page 6 of this manual to con rm the maximum number and combination of control-
lers that can be tted to your Rinnai water heater model.
This appliance must be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building
Codes including local OH&S requirements
This appliance must be installed, maintained
and removed by an Authorised Person.
For continued safety of this appliance it must
be installed and maintained in accordance with
the manufacturer's instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-100V and is the answer not in the manual?

Questions and answers

Summary of Contents for Rinnai MC-100V

  • Page 1 Operation & Installation Manual Your guide on how to use and install Rinnai Deluxe Water Controllers This guide is for the use and installation of Rinnai Deluxe remote controller models MC-100V and BC-100V. These instructions MUST BE used in conjunction with the Rinnai Water Heater Operation / Installation Manual supplied with Rinnai water heaters.
  • Page 2 This page is intentionally blank Rinnai HW_CF_DELUXE OIM...
  • Page 3: Table Of Contents

    Water Controller Combinations & Configurations ����������������������������������������������������������������������������������������������������������� 6 Wired Only Configurations ������������������������������������������������������������������������������������������������������������������������������������������������ 6 Combined Wireless & Wired Configurations ��������������������������������������������������������������������������������������������������������������������� 6 Water Controller Operation Deluxe Kitchen Water Controller (MC-100V) ��������������������������������������������������������������������������������������������������������������������� 7 Turning On ������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 7 Adjusting Temperature ����������������������������������������������������������������������������������������������������������������������������������������������������� 7 Transferring Priority ����������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Setting The Sound Options �����������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Warnings & Important Information

    The installation of gas, water, and electricity must conform to local regulations, including local OH&S requirements. The installation must also comply with the instructions supplied by Rinnai� Please keep this instruction booklet in a safe place for future reference� All dimensions referred to in these instructions are in millimetres, unless otherwise specified.
  • Page 5: Water Temperature Control

    Only ONE master controller can be installed. This can be a MC-100V, or a MC-601Q (when programmed as a master controller). Note that when a MC-100V is fitted it will always functions as a master controller, this is the default setting and can not be changed.
  • Page 6: Water Controller Operation

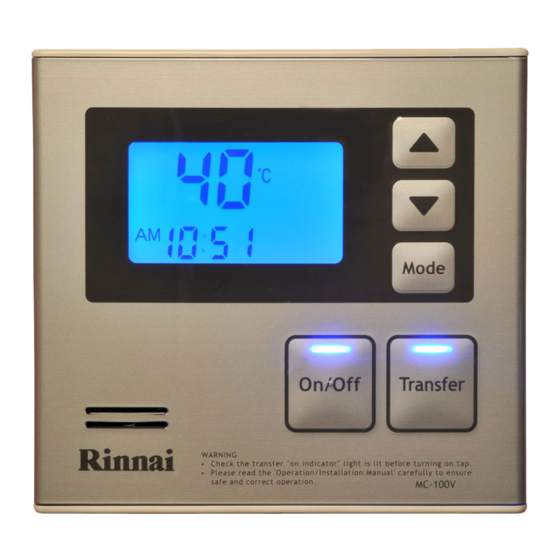

    WATER CONTROLLER OPERATION DELUXE KITCHEN WATER CONTROLLER (MC-100V) SHOWER SAVER / BATH FILL INDICATOR DIGITAL MONITOR Indicates that the Shower Saver / Bath Fill function is operating. UP AND DOWN BUTTONS WATER TEMPERATURE INDICATOR When in Normal mode these buttons are used to select the water temperature.
  • Page 7: Setting The Sound Options

    Water Controller Combinations & Configurations Wireless, Universal and Deluxe water controllers can be combined, Refer to "Water Controller Combinations & Configurations" on page 5 to confirm the maximum number and combination of controllers that can be fitted. Rinnai HW_CF_DELUXE OIM...
  • Page 8: Deluxe Bathroom Water Controller (Bc-100V)

    Always check water temperature at the outlet before use� A parent or carer should always check the temperature before a child is placed in contact with hot water, see "Warning About Hot Water" on page 4� CAUTION Rinnai HW_CF_DELUXE OIM...
  • Page 9: Transferring Priority

    The clock may need resetting if power to the water heater unit is disrupted due to a power failure or if the power is switched off over a prolonged period. The default factory start time is set to AM 12:00� Rinnai HW_CF_DELUXE OIM...
  • Page 10: Setting Shower Saver / Bath Fill

    When Smartstart® (page 12) is in operation, the Shower Saver / Bath Fill function is unavailable while the water heater ‘In Use’ indicator is illuminated� Do not press the Preheat button whilst Shower Saver / Bath Fill is in operation as the programmed bath fill volume will not be met. Rinnai HW_CF_DELUXE OIM...
  • Page 11: Using Shower Saver / Bath Fill

    Water Controller Combinations & Configurations Wireless, Universal and Deluxe water controllers can be combined, Refer to "Water Controller Combinations & Configurations" on page 5 to confirm the maximum number and combination of controllers that can be fitted. Rinnai HW_CF_DELUXE OIM...
  • Page 12: Smartstart Pre-Heat System

    WATER CONTROLLER OPERATION SMARTSTART PRE-HEAT SYSTEM The “Preheat” function is only available on Rinnai water heater models installed in conjunction with the optional Rinnai “Smartstart®” module� NOTE Preheat Button Preheat Indicator Used to start and stop Smartstart preheater Indicates that Smartstart preheater is activated*...
  • Page 13: Water Controller Installation

    IMPORTANT brought in from other countries are not compatible with Rinnai appliances sold in Australia� Regardless of water controller installation, all Rinnai water heaters must only be installed by an Authorised person� Water controllers, transceivers and water heaters DO NOT contain user serviceable parts and must ONLY be serviced and repaired by an authorised person�...
  • Page 14: Location

    For all water controller dimensions refer to "Dimensions" on page 17� ADDITIONAL WATER CONTROLLER MOUNTING CONSIDERATIONS. The MC-100V uses a Liquid Crystal Display (LCD) for the digital monitor� NOTE Light reflections can make the LCD difficult to see at direct eye level.
  • Page 15: Communication Cables

    Wired water controllers operate at an extra low voltage (12 Volts DC) which is supplied from the water heater, a 10 metre long communications cable is supplied for connection to the water heater. ONLY Rinnai supplied communication cables may be used. Optional longer communication cabling is available from Rinnai.
  • Page 16: Deluxe Kitchen Water Controller (Mc-100V)

    Fasten the controller to the wall mounting bracket (Fig. 4). Avoid the over-tightening of fixings as this may cause damage. Once secured replace the face plate. ADDITIONAL MC-100V MOUNTING CONSIDERATIONS� The MC-100V uses a Liquid Crystal Display (LCD) for the digital monitor� NOTE Light reflections can make the LCD difficult to see at direct eye level.
  • Page 17 Ø20 / (ii) Ø20 / Centre The MC-100V uses a metal mounting bracket that has 3 upper and lower mounting points both on and either side of the vertical centre line. (ii) The MC-100V cable access is horizontally offset to the right of the centreline, inside the metal mounting bracket, refer to dimensional diagram below for correct cable access hole positioning.
  • Page 18 NOTES Rinnai HW_CF_DELUXE OIM...
  • Page 19 NOTES Rinnai HW_CF_DELUXE OIM...
  • Page 20 Braeside, Victoria 3195 AU45204 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance� If your appliance requires service, please call our National Help Line� Rinnai recommends that this appliance be serviced at least every 2 years�...
