Your guide on how to use and install Rinnai Deluxe water controllers
This guide is for the use and installation of Rinnai Deluxe water controllers, models
MC-100V1Z and BC-100V1Z.
These instructions must be used in conjunction with the Rinnai water heater operation
and installation guides.
The Deluxe water controllers are compatible ONLY with the Rinnai water heaters shown
on p. 4.
To confirm the maximum number and combination of controllers that can be fitted to
your Rinnai INFINITY refer p. 5.

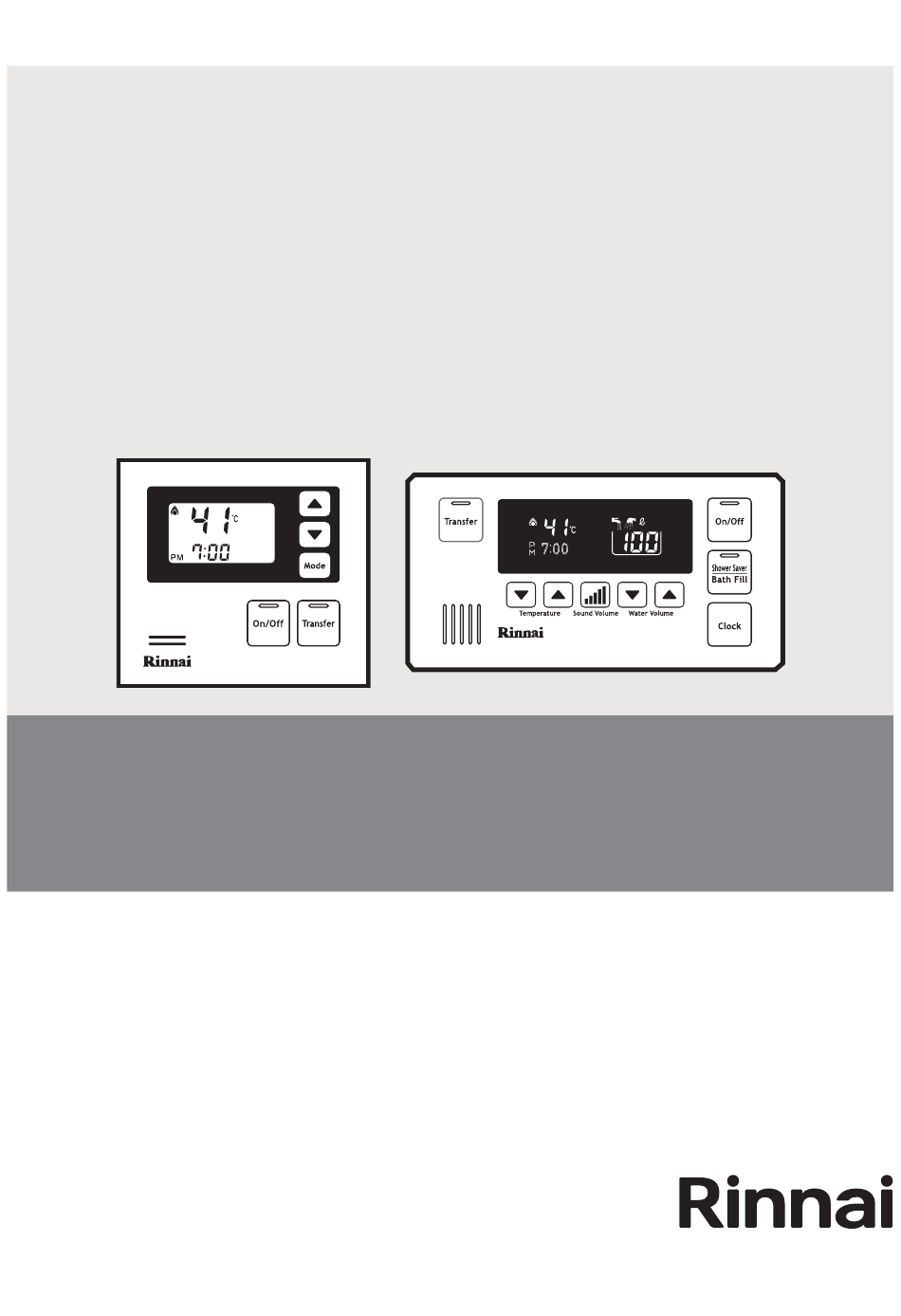

INFINITY Kitchen and Bathroom Deluxe controllers
Operation and installation guide
Bath
Advertisement
Table of Contents
Related Manuals for Rinnai BC-100V1Z
Summary of Contents for Rinnai BC-100V1Z
- Page 1 Your guide on how to use and install Rinnai Deluxe water controllers This guide is for the use and installation of Rinnai Deluxe water controllers, models MC-100V1Z and BC-100V1Z. These instructions must be used in conjunction with the Rinnai water heater operation and installation guides.
- Page 2 Important Rinnai INFINITY water controllers must be installed in accordance with: - Manufacturer’s installation instructions Current: - AS/NZS 5601 Gas Installations - AS/NZS 3000 Electrical Standards - AS/NZS 3500 Plumbing and Drainage Standards Installation, servicing and repair shall be carried out only by authorised personnel.
-
Page 3: Table Of Contents
Contents Warning about hot water ........4 Water controller configurations ......4 Water temperature control ........5 General controller information ......6 Kitchen Deluxe controller operation......8 Bathroom Deluxe controller operation ....10 Water controller installation ........13 A26 controller communication cables ....16 EF26 controller communication cables....17 N-Series controller communication cables ...18... -
Page 4: Warning About Hot Water
Leave a toddler in the care of another child. They may not understand the need to have the water temperature set at a safe level. Water controller compatibility The deluxe controllers are compatible with the current range of Rinnai INFINITY models, these are: • Rinnai INFINITY A-Series •... -
Page 5: Water Temperature Control
Bathroom (bath fill) 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48 * Some Rinnai water heaters can be programmed to deliver higher temperatures from the master water controllers, i.e. in commercial applications To obtain water temperatures lower than 37 °C, open the cold water tap and add cold water until the desired lower temperature is reached. -
Page 6: General Controller Information
In Use indicator is on. This will and then returning priority will result in a turn off the water heater causing the water to default set temperature of 50 °C. This is a go cold. safety feature. 6 | Rinnai INFINITY Deluxe controller OIM 01-20... - Page 7 11 or 12) ignition may fail and the In Use button will not illuminate. The water flow may need to be stopped and re-started several times to get the water heater to work. Rinnai INFINITY Deluxe controller OIM 01-20 | 7...
-
Page 8: Kitchen Deluxe Controller Operation
On/Off and Transfer buttons will illuminate indicating that the hot water temperature control has been transferred and that the hot water unit will be ready to supply hot water once a hot water tap is opened. 8 | Rinnai INFINITY Deluxe controller OIM 01-20... - Page 9 The clock may need resetting if power to the water heater is disrupted due to a power failure or if the power is switched off over a prolonged period. The default time is set to AM 12:00. Rinnai INFINITY Deluxe controller OIM 01-20 | 9...
-
Page 10: Bathroom Deluxe Controller Operation
43 °C. In addition, transfer of priority between controllers is not possible. These are safety features. Transferring priority To control the water delivery temperatures when using two or more controllers transfer the priority to the controller you wish to use. 10 | Rinnai INFINITY Deluxe controller OIM 01-20... - Page 11 A volume counter, to highlight the remaining volume of water to be delivered, displays on the controller below the temperature display, replacing the clock when the shower saver / bath fill function is on. Rinnai INFINITY Deluxe controller OIM 01-20 | 11...
- Page 12 Shower Saver / Bath Fill button has been pressed. Using multiple controllers The Rinnai INFINITY can be turned on and off at any water controller. If more than one controller is fitted, press the Transfer button to transfer priority to the desired water controller.
-
Page 13: Water Controller Installation
Controllers operate at an extra low voltage (12 V DC), which is supplied from the water heater. A 10 m communication cable is supplied for connection to the water heater. ONLY Rinnai supplied communication cables may be used. Additional 10 m cable can be purchased. - Page 14 7. Fix the controller to the wall using the appropriate fixings. Avoid over-tightening the fixings as this may cause damage. Once secure replace the face plate. Backing seal Controller cable Connector Remove film to expose self-adhesive 14 | Rinnai INFINITY Deluxe controller OIM 01-20...
- Page 15 The MC-100V1Z uses a metal mounting bracket that has three mounting points both on and either side of the vertical centreline. The MC-100V1Z cable access is horizontally offset to the right of the centreline, inside the metal mounting bracket, refer image below. Kitchen Deluxe (MC-100V) F (2) Bathroom Deluxe (BC-100V) Rinnai INFINITY Deluxe controller OIM 01-20 | 15...
-
Page 16: A26 Controller Communication Cables
Polarity is not important, either wire colour can be connected to either terminal. Cable clamp 5. Return the cable connector to the original position, taking care not to damage the cable wires in the process, and replace the retaining screw. 16 | Rinnai INFINITY Deluxe controller OIM 01-20... -
Page 17: Ef26 Controller Communication Cables
PCB). Accessory port socket 6. Plug the mini-plug into the accessory port connection socket, the plug and socket are keyed so that they can only be plugged in one direction. Rinnai INFINITY Deluxe controller OIM 01-20 | 17... -
Page 18: N-Series Controller Communication Cables
6. Plug the mini-plug into the accessory port socket, the plug and socket are keyed so that they can only be plugged into the one direction). 7. Proceed with the water controller installation and connect the communication cables to the controllers. 18 | Rinnai INFINITY Deluxe controller OIM 01-20... - Page 19 Connecting communication cables to the PCB Cable access Safety cover Accessory port socket Accessory port socket Rinnai INFINITY Deluxe controller OIM 01-20 | 19...
- Page 20 Rinnai.co.nz Tel: 0800 746 624 http://www.youtube.com/rinnainz Rinnai INFINITY Deluxe controller OIM 02-20 http://facebook.com.rinnainz...
