Summary of Contents for Lander RAFALE-M

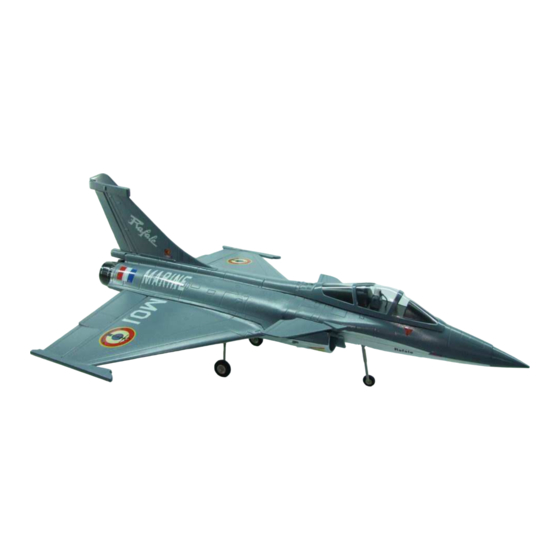

- Page 1 RAFALE-M OPERATIONAL MANUAL...
- Page 2 Please read before operating this system! e would like thank you for purchasing our new product - Rafale-M, designed for the hobby enthusiast. Base on its full - scale counterpart, this France’s Jet can finish loops, inverted flight and rolls and other aerobatics easily.
-
Page 3: Specifications
Specifications: Wing Span : 830mm Length: 1100mm Height: 385mm Flying weight Flying weight: : : : 1400 Flying weight Flying weight g up Servo Servo Servo Servo: : : : 9g×5pcs or 8pcs P P P P ower system: ower system: ower system: ower system: Brushless electrical ducted fan (3900KV motor) X 2... - Page 4 EDF SYSTEM EDF68 EDF68- - - - 1A 1A 1A 1A EDF68 EDF68 Material: Aluminum Alloy, Metal special Weight: Ca. 90g(Motor not included) Rotor: 68mm dia, 5-bladed. Max rpm 45,000 rpm Application: 200-700W Staic Thrust: Up to 1.2kg(11.76 N ,40oz) EDF68-1AP Material: Aluminum Alloy, Metal special...
-
Page 5: Main Accessories
Main Accessories VERTICAL STABILZER INTAKE SET (RIGHT & LEFT) MAIN WING SET LOWER FRONT FUSELAGE LOWER REAR FUSELAGE CANOPY SET EDF COVER SET MAIN FUSELAGE LANDING GEAR COVER, EXHAUST COVER & HEADER COVER RETRACTABLE LANDING GEAR SET FRONT WING MECHANICAL SET FRONT WING SET Remarks: 1) Operational Manual (included) 2) 5 Min. -
Page 6: Assembling The Aircraft
Assembling the aircraft Glue up the intake set with epoxy. Install the front retract landing gear & steering. Please make sure the steering push rob is on right position and operation well. Glue up the front wing set with epoxy. The front wing mechanical set has been already installed by factory. - Page 7 Install the rear retractable landing gear set (which are operated by two servos directly) Please double check the rear retractable landing gear to be able with well operation. Install the Aileron servos Link up the Aileron push rods and glue up the servo cover well.
- Page 8 Glue up the lower rear fuselage with epoxy. Please be reminded to double check the cable of EDF & two extension cords of Aileron are already put into the right position before glue up action. Glue up the lower front fuselage. Please make sure all related servos cable to be linked up.
- Page 9 The canopy set is used push in method to install into main fuselage and push down the front canopy with click to lock Hand holds the front canopy and pull up to open it for changing the battery or doing any maintenance issue. Install the header cover by using strong double tape.
- Page 10 Link up the front steering push rod. Link up the rudder push rod. Double check the rudder push rod is able linked up with the front steering servo which has been operated the rudder and front steering together. Batteries sitting area and tight up with magic tape during on flight.
- Page 11 Please be informed to bend some angle of each retractable landing gear as shown before installation. This action can be let the retract gear operation easily. Put in all related parts of nose retractable landing gear and tight up with the four long screw and link up the steering push rod.
- Page 12 Pre-check all plastic gear housing on the right position without any conflict. - 12 -...
- Page 13 Flight: To keep RAFALE-M flying only need 50% of the maximum power, it is a good idea to fly with power for a while and glide for a while. In this way you can prolong the maximum flight time and familiarize yourself with landing approaches.
- Page 14 - 14 -...
