- Page 1 HAWKER HUNTER OPERATIONAL MANUAL...

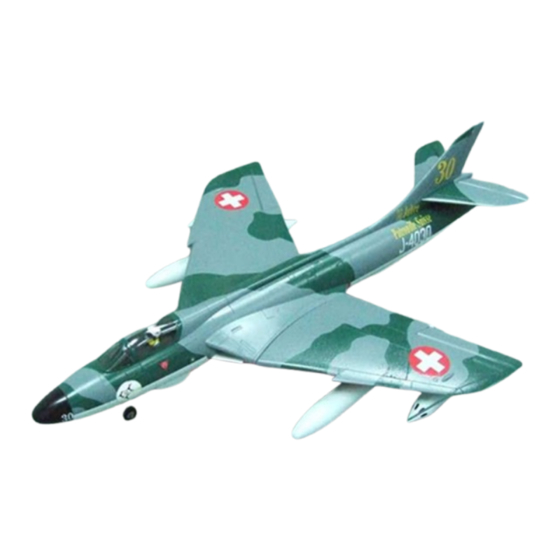

- Page 2 It is also made as a highly maneuverable model for the intermediate to expert pilot. With the Hawker Hunter model which includes EDF set*, speed controller, electric servo, flaps, retractable landing gear with front steering and full scale functional gear doors system (optional requirement).
-
Page 3: Specifications
Specifications: Wing Span : 866mm Fuselage total Length: 1157mm AUW: 1.5kg up EDF(Lander Metal EDF): 68mm(4S/6S) Power: 4S 3300mAH 25C 6S 2500mAH 25C or above Function: 1) Flaps system-included 2) Metal Housing Retracts system-included 3) Gear doors system & suspension legs (option items) -
Page 4: Main Accessories
Main Accessories NOSE CONE GEAR PLASTIC COVER METAL HOUSING RETRACT FRONT LOWER FUSELAGE MAIN WING COVER SET CANOPY SET VERTICAL STABILIZER HORIZONTAL STABILIZER REAR EXHAUST COVER SET EDF COVER SET MAIN WING SET MAIN FUSELAGE - 4 -... -
Page 5: Assembling The Aircraft
DROP TANKS & ROCKET TUBES Remarks: 1) Operational Manual (included) 2) 5 Min. epoxy set (included) 3) Extension cord x 1& Y cord x 4 (included except ARF version) 4) Push rods for Elevator, Rudder, Aileron, and Retract Gear & Steering (included) 5) One plastic bag includes screws, Control Horns, Linkage Stoppers &... - Page 6 1) Install the main gear set on the main wing gear bay. 1) Link up the related push rods with the retract servos. 1) Install the elevator and rudder push rods inside the main fuselage. - 6 -...
- Page 7 1) Firstly take some hot melt glue to fix the clear pvc tubes (one for rudder and two for elevator) on the both side as shown. 2) Then insert elevator and rudder push rods into the fixed pvc tubes. Please be reminded the elevator push rods must be passed through the main fuselage to the rear part.
- Page 8 1) Take four provided 3mm X 30mm long screw to tight up the EDF cover set. Please be reminded to put some hot melt on the both side of EDF in order to strengthen the installation issue before tight up the EDF cover. 1) Take some epoxy on the slot of horizontal stabilizer then insert into the vertical stabilizer slot.
- Page 9 1) Glue up the rudder on the vertical stabilizer as shown. 1) Take enough epoxy to glue up the whole set tail set on main fuselage as shown. 2) Link up the elevator push rods control horn. 1) Link up the rubber control horn with push rod..
- Page 10 1）Screw up the control horn 1) Take some clear thin pvc sheet to cover the slot to make sure the whole exhaust without any barrier in order to make sure the EDF thrust power to have the best efficience. 1) take some epoxy to glue the main lower fuselage on the main fuselage.
- Page 11 1) Link up the elevator push rods as shown. 1) Link up the rubber push rod with the front steering servo horn together. 1) After link up both of aileron and flaps push rods then try to install the main wing on the main fuselage.
- Page 12 1) Take four provided 4mm X 25mm screws with both of wood plate and metal washer to tight up the main wing. 2) Please be reminded the related servos cords of main wing to be leaded into the front fuselage compartment before tighten 1) Put on the wing cover set on the main wing and tight up by five 3mm screws as...
- Page 13 1) Put on the canopy and glue up the nose cone on the main fuselage. Also glue up the drop tanks and rocket tube if necessary. 1) This is a provided side wing pin. 1) Just drill a little hole on the left hand side of main wing then put in the wing pin and glue up by some hot glue - 13 -...
- Page 14 - 14 -...
-
Page 15: Taking Off
Flight: To keep Hawker Hunter flying only need 50% of the maximum power, it is a good idea to fly with power for a while and glide for a while. In this way you can prolong the maximum flight time and familiarize yourself with landing approaches. - Page 16 Addition： ： ： ： elevator & rudder push robs installation update information - 16 -...
- Page 17 - 17 -...
- Page 18 - 18 -...
