Tycon Power Systems Wireless EZ-Bridge AC Manual page 2

High performance point to point wireless bridge system
Hide thumbs
Table of Contents

Advertisement

®

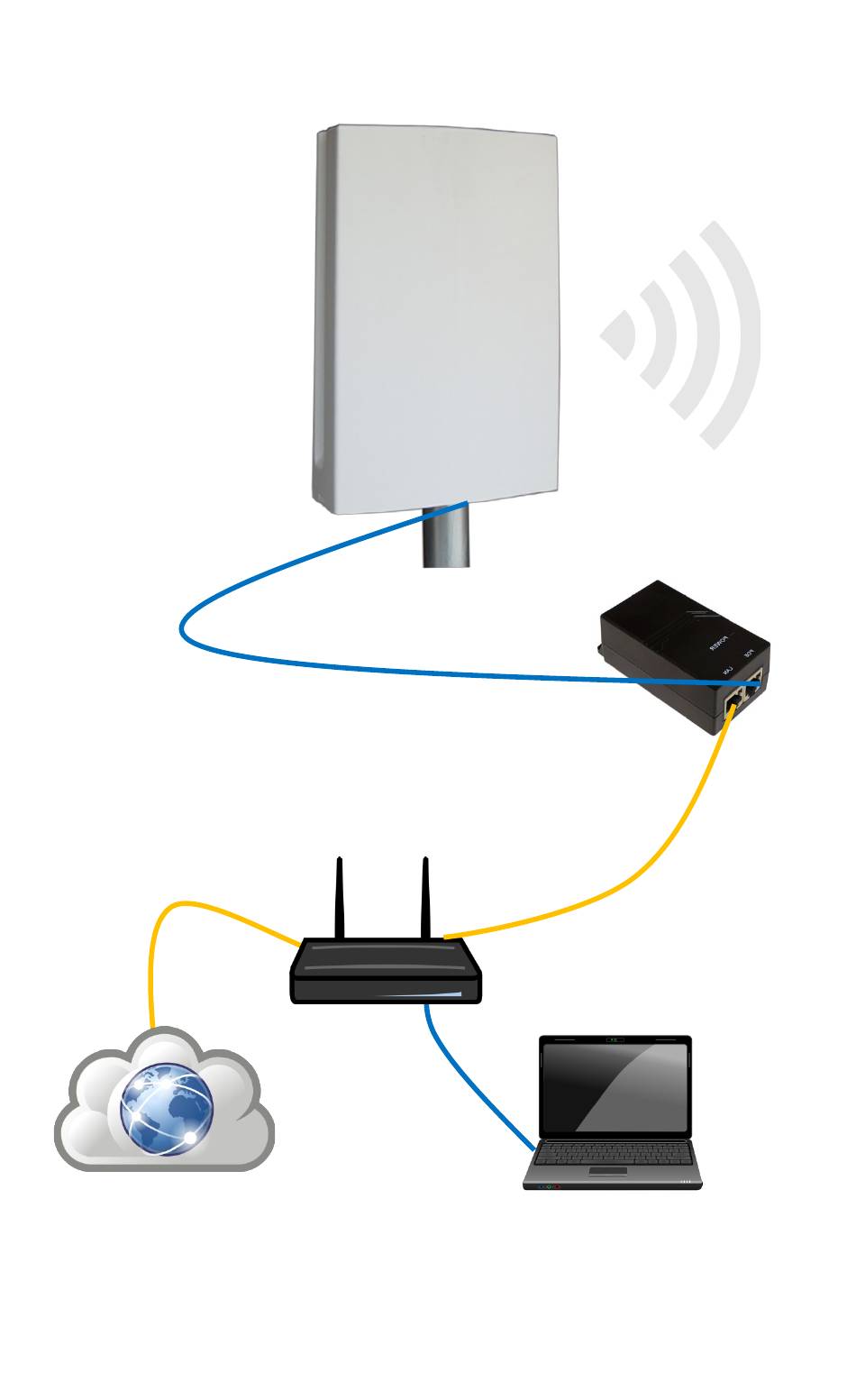

EZ-Bridge
Wireless Antenna System
POE Port
Antenna "A"
LAN Port
LAN Port
WAN Port
Router
Router
Internet Source
PC
Note: The EZ-Bridge AC accepts standard 802.3af/at/bt PoE or 48V
Passive PoE. ETH0 Connector accepts PoE. ETH1 for data only.
2
