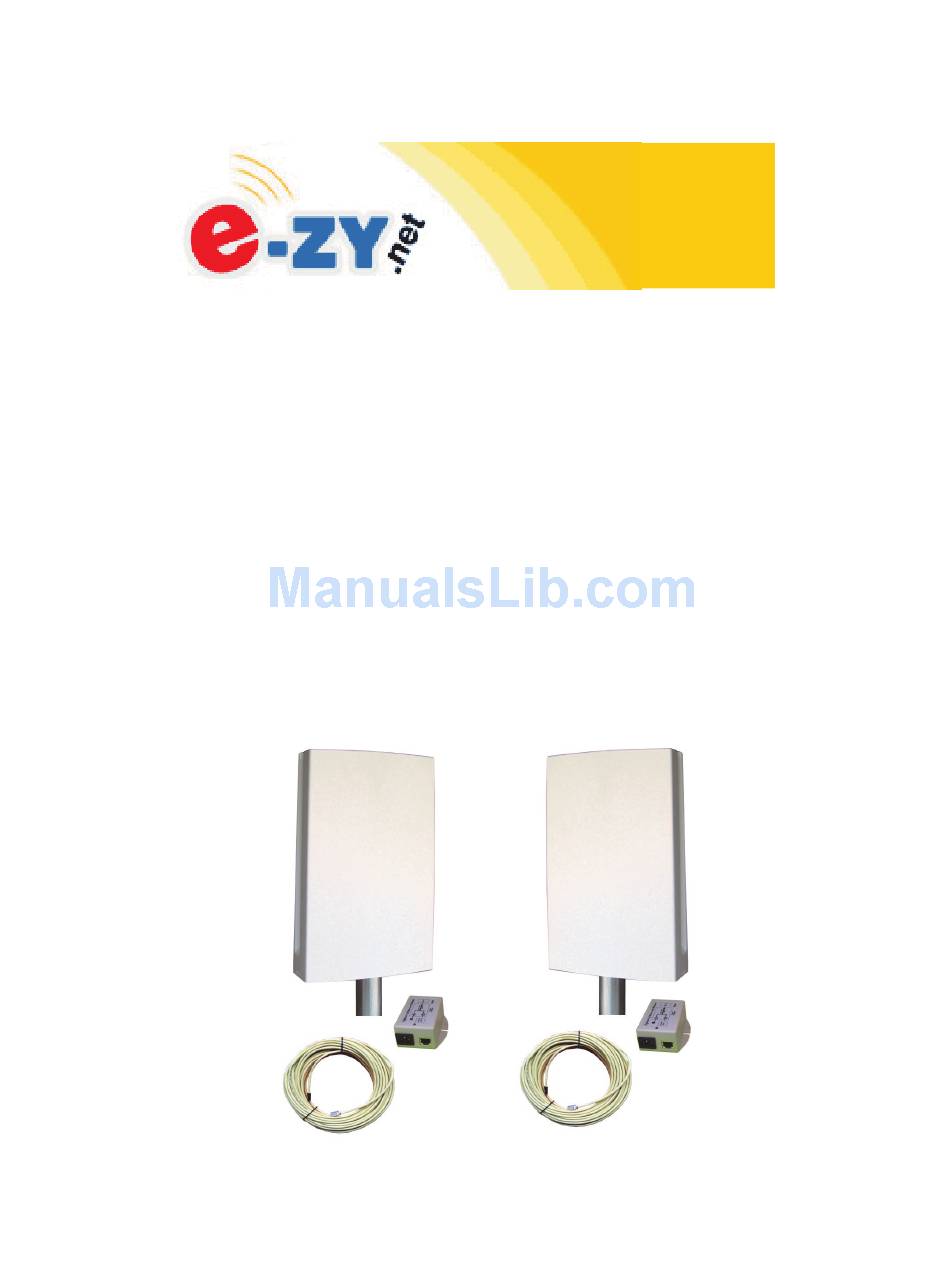

EZ-BridgeLT-HD
High Performance Point to Point Wireless Bridge System
Surge protected Ethernet and Power for ultimate
▫
reliability. Shielded CAT5 cables to protect
against EMI.
Achieve up to 15 Mbit/sec speed; 20Mbps for
▫
5GHz version
Link up to 3 miles with good line of sight
▫
Plug and Play Simple Installation
▫
Best security available (WPA)
▫
Field Proven Wireless Technology
▫
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tycon Power Systems EZ-BridgeLT-HD
Summary of Contents for Tycon Power Systems EZ-BridgeLT-HD
- Page 1 ™ EZ-BridgeLT-HD High Performance Point to Point Wireless Bridge System Surge protected Ethernet and Power for ultimate ▫ reliability. Shielded CAT5 cables to protect against EMI. Achieve up to 15 Mbit/sec speed; 20Mbps for ▫ 5GHz version Link up to 3 miles with good line of sight ▫...
-
Page 2: Getting Started
DANGER! Avoid Powerlines! You Can Be Killed! When following the instructions in this guide to install the antenna take extreme care to avoid contact with overhead power lines, lights and power circuits. Contact with power lines, lights or power circuits may be fatal. - Page 3 Qwik Install STEP 1: Choose a mounting location with good line of sight to the re- mote location. The supplied bracket can be mounted to a wall or to an existing pole up to 2” diameter. If only short distances are needed, the antenna can be mounted inside a building.
-
Page 4: Software Settings
through the bottom cover and plug into the RJ45 Jack inside the unit. Keep the black gasket material in the bottom of the cover to help keep out dust and insects. STEP 6: Route shielded CAT5 cable from the antenna into the building. Always create a strain relief near the antenna so the cable is not pulling directly on the antenna. - Page 5 3. SECURITY: Security is pre-configured with system passwords, WPA2 encryption and Mac Address verification pre-set. This is so that you can setup a plug and play link and have confidence that the link is secure and that your data and network are safe. Once you feel comfort- able with the system and its operation, we would recommend the fol- lowing security changes : a.
- Page 6 6. SITE SURVEY: The site survey is a very useful tool to determine what wireless devices are within range of your EZ-Bridge™ and could be a source of interference that could cause degraded performance. Go to WIRELESS and then click on SITE SURVEY then REFRESH. The list will show all wireless devices including channel #, MAC Address and relative signal strength of all the devices within the range of the EZ- Bridge™...
-
Page 7: Technical Specifications
Technical Specifications Note: Subject to Change Without Notice 2.4GHz 5GHz Standards 802.11b/g 802.11a Certifications FCC / CE Radio Specifications Operating Frequency 2400 to 2497MHz 4900 to 6000MHz Available Transmit Power 802.11b 100 to 250mW 10 to 250mW (software selectable) 802.11g 50 to 100mW -73 @ 54Mbps -74dBm @ 54 Mbps Receive Sensitivity... -
Page 8: Advanced Features
Advanced Features The EZ-Bridge™ has many advanced features if more functionality is desired. To access the advanced features, click on Advanced Web at the top of the menu tree. This will activate the advanced menu options. The EZ-Bridge™ can operate as Access Point, Client, WDS, AP+WDS, Point to Point. -
Page 9: Typical Applications
grounding of the electronics inside the enclosure to prevent damage from electrical storms. Make sure that the POE Power Supply is plugged into a surge protected outlet such as a surge protected power strip or UPS inside the house. Shielded CAT5 cable is also recom- mended between the POE Inserter and antenna. -
Page 10: Important Note
d. Add a high speed link between your home network and a PC in your remote studio or office which is located in an outbuilding on your property. e. Create a secure link for remote video and network based security cameras. -
Page 11: Limited Warranty
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. - Page 12 All shipping damage claims are the purchaser's responsibility. Inspect each shipment upon delivery and IMMEDIATELY report all damage, to the carrier. There may be time limits and inspections may be required. 8000011 Rev 1 EZ-BridgeLT-HD Qwik Install Guide...
