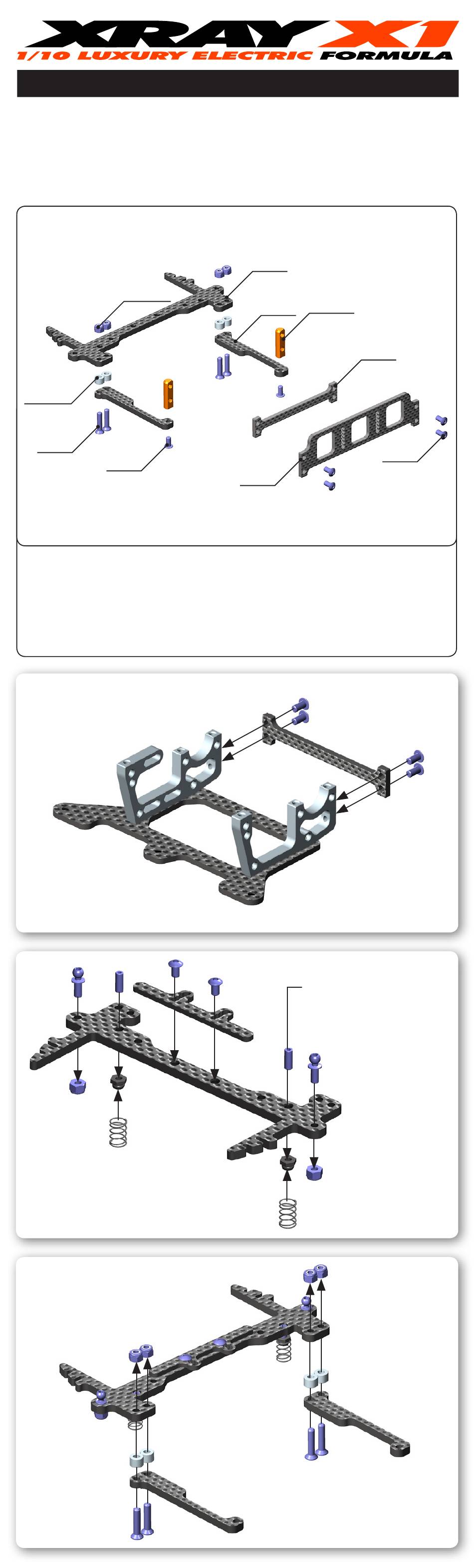

#373522 X1 FULLY INDEPENDENT REAR WING MOUNT (SET)
This wing mount set allows to install rear wing fully independently from the rear pod plate.
When the rear suspension is moving the wing stays in the same position which helps to improve
car stability and increases traction, making the car easier to drive in all conditions. The wing
mount plate features holes for wing mounting in exactly the same positions as the standard
wing mount. Can be used either with the rear gear differential or ball differential.
303127-K
903314
#296530-O
ALU NUT M3 - ORANGE (10)
#303127-K
ALU SHIM 3x6x4.0MM - BLACK (10)
#306200-O
ALU SERVO MOUNT - ORANGE (2)
#902306
HEX SCREW SH M3x6 (10)
#903314
HEX SCREW SFH M3x14 (10)
3x12mm
296530-O
902306
3x6mm
3x6x4mm
373522
306200-O
373522
373522
3x6mm
Follow the instruction manual
X1'19 page 16/ step 1 for
screw setting
3x12mm
373522
902306
3x6mm
3x6x4mm
